MRCOOL DIY 4th Generation Mini Split 30K BTU 2 Zone Ductless Air Conditioner With Heat Pump And 25 Ft Install Kit - DIYM236HPW01C07
This Package Include The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5. When paired with a MRCOOL Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 500 and 750 sq ft. It also has the ability to be controlled from anywhere using an Apple or Android smartphone with our convenient Smart HVAC app.

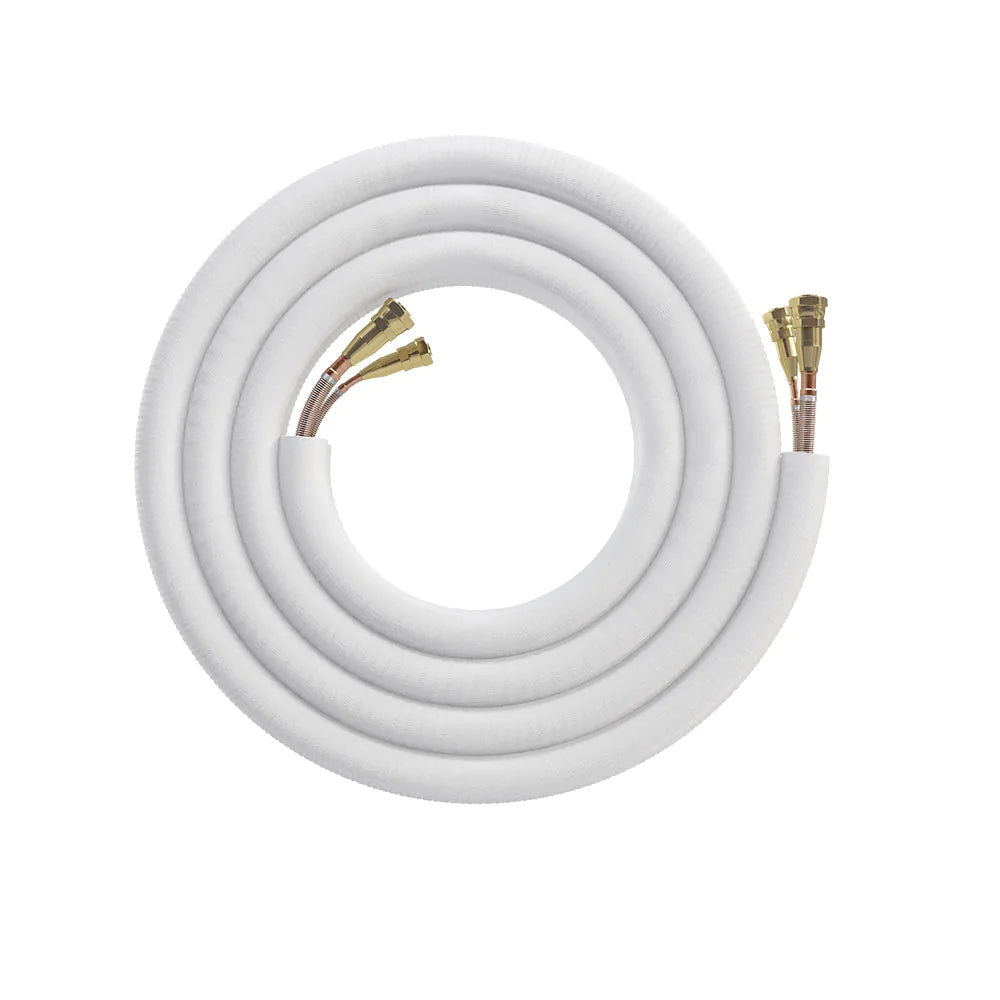

This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
PACKAGE INCLUDES:

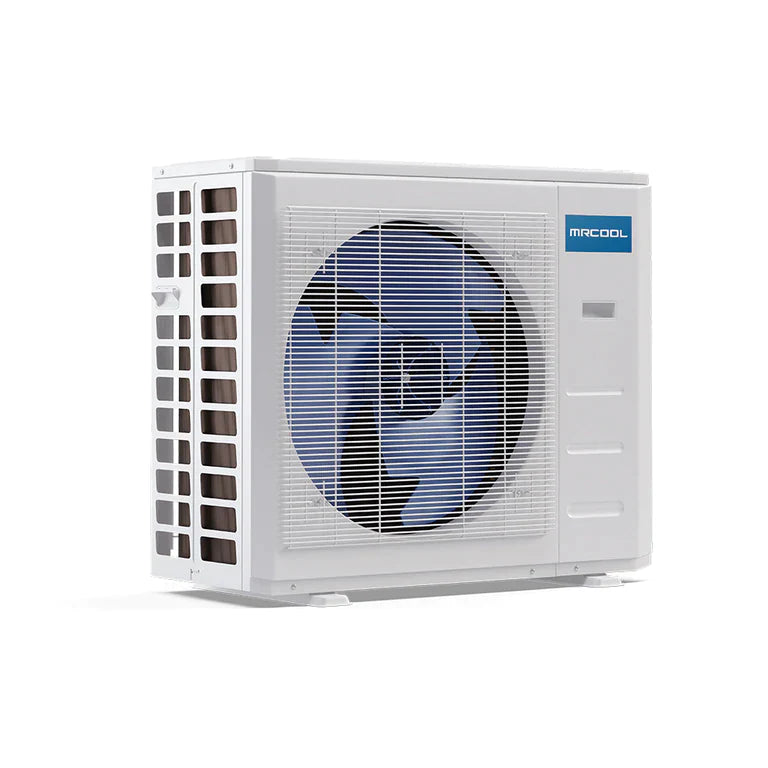

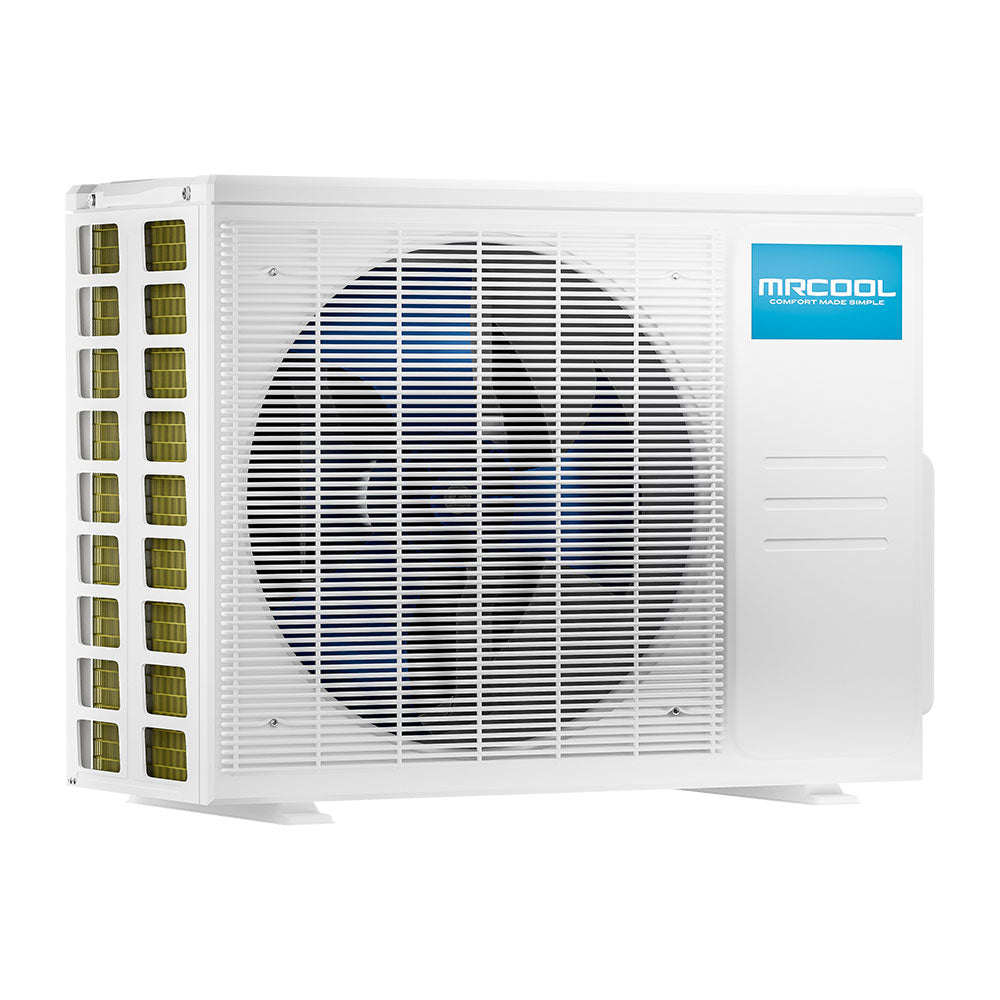

FEATURES CONDENSER DIY-MULTI4-36HP230C
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

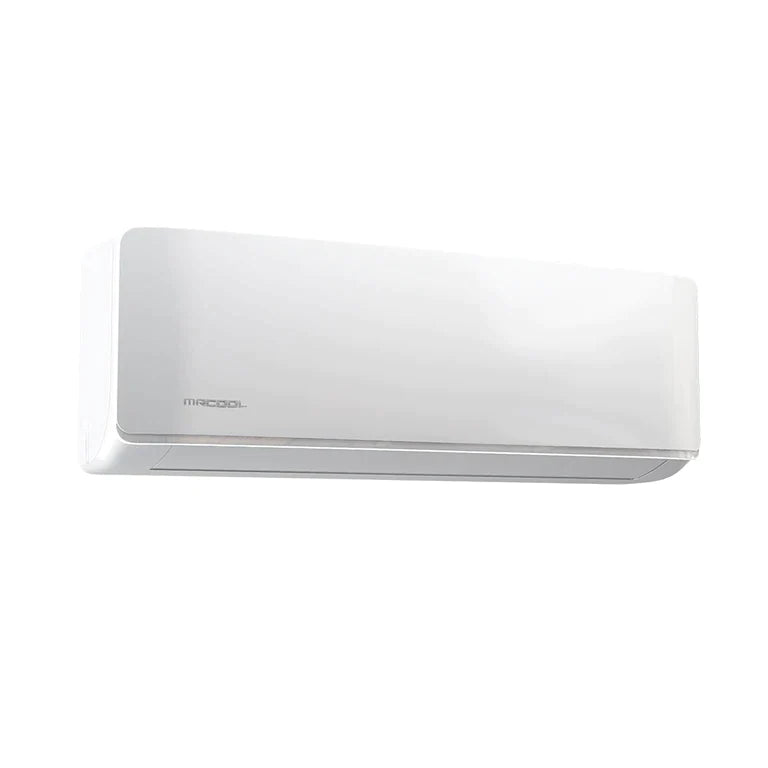

FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES AIR HANDLER DIY-18-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
- This product ONLY includes the Air Handler. You must add an outdoor unit - condenser and a line set to fully complete the system
SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C
| Product Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Product Weight |
170.42 lbs |
| SEER |
21.5 |
| EER |
10.5 |
| HSPF |
hspf4/hspf5 : 11/8.5 |
| CFM |
2147.06 |
| Cooling Capacity |
36000 BTU |
| Heating Capacity |
36000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
45 A
|
| Min Circuit Ampacity |
27 A |
| Color |
White |
| Zone Capacity |
Up to 4 |
| Refrigerant Type |
R-410A
|
| Refrigerant Volume |
134.04 oz |
| Decibel Rating |
65 dBA |
| Inverter |
Yes |
| Min Ambient Cool |
5F ~ 122F |
| Min Ambient Heat |
-13F ~ 75.2F |
| Max Lineset Length |
196.85 ft TOTAL |
| Liquid Line Size |
1/4in |
| Suction Line Size |
3/8in+1/2in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
1000/900/750 |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Warranty |
5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty |
SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25
| Product Dimensions |
31.57"W x 7.44"D x 11.69"H |
| Product Weight |
23.81 lbs |
| Cooling Capacity |
12000 BTU |
| Heating Capacity |
12000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
15 A
|
| Min Circuit Ampacity |
3 A |
| Mount Type |
Wall |
| Color |
White |
| Max Coverage Area |
Up to 500 sqft |
| Refrigerant Type |
R-410A |
| Inverter |
Yes |
| Liquid Line Size |
1/4 in |
| Suction Line Size |
1/2 in |
| Blower Motor RPM |
1050/850/650 |
| Modes |
Fan Only
Quiet Mode
Auto Cool |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Includes |
Remote
Batteries |
| Certifications |
Energy Star
AHRI |
| Warranty |
5-year Parts/7-year Compressor
|
| Restricted States |
GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-18-HP-WMAH-230C25
| Product Dimensions |
42.52"W x 8.90"D x 13.19"H |
| Product Weight |
34.61 lbs |
| Cooling Capacity |
18000 BTU |
| Heating Capacity |
18000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/18-30A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Mount Type |
Wall |
| Color |
White |
| Max Coverage Area |
Up to 750 sqft |
| Refrigerant Type |
R-410A |
| Decibel Rating |
44.5/37/31 |
| Decibel Rating Low |
31 dBA |
| Decibel Rating High |
44.5 dBA |
| Inverter |
Yes |
| Max Lineset Length |
98.42 ft |
| Liquid Line Size |
1/4 in |
| Suction Line Size |
1/2 in |
| Blower Motor RPM |
1120/950/700 |
| Modes |
Fan Only
Quiet Mode
Auto Cool |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Includes |
Remote
Batteries |
| Certifications |
Energy Star
AHRI |
| Warranty |
5-year Parts/7-year Compressor
|
| Restricted States |
GU;PR;VI |
SPECIFICATIONS LINESET DIY25-1412 (x2)
|
COLOR
|
Copper
|
|
COLOR FAMILY
|
Bronze/Copper Metallic
|
|
LINESET FITTING TYPE
|
Quick-Connection
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
1/2
|
|
REGISTERED WARRANTY
|
N/A
|
|
HAS BATTERIES
|
No
|
|
CONTAINS ELECTRONICS
|
No
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
RESTRICTED STATES
|
GU;PR;VI
|
|
NET WEIGHT
|
19.84 lbs
|
|
GROSS WEIGHT
|
22.92 lbs
|
PRODUCT MANUALS:
CONDENSER MANUALS
12K AIR HANDLER MANUALS
18K AIR HANDLER MANUALS
