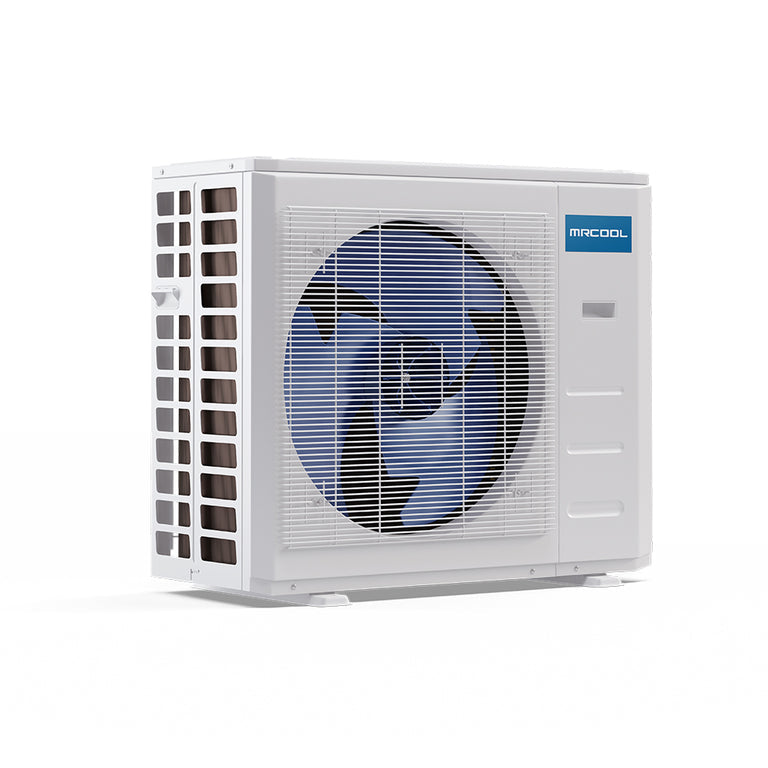

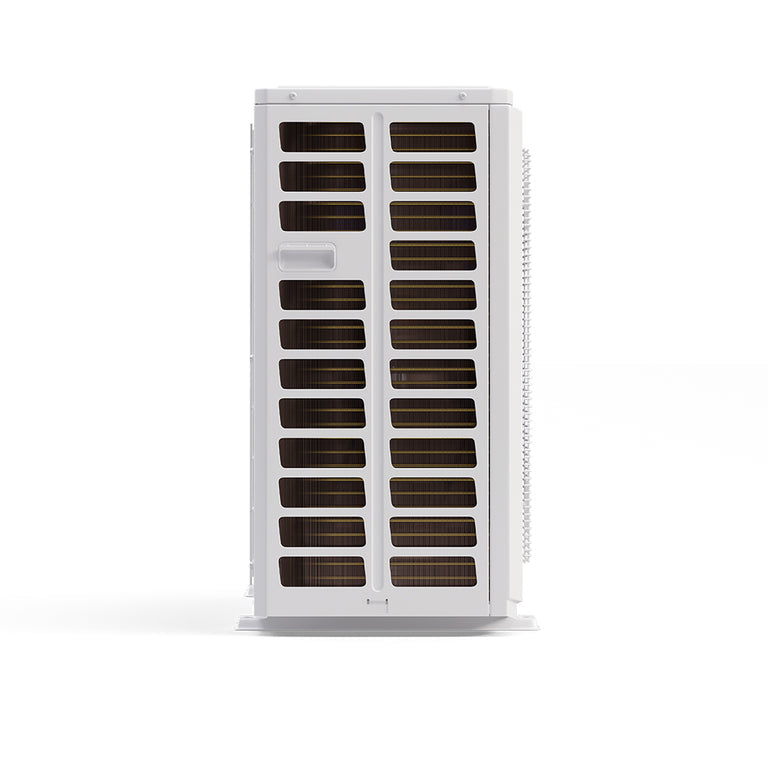

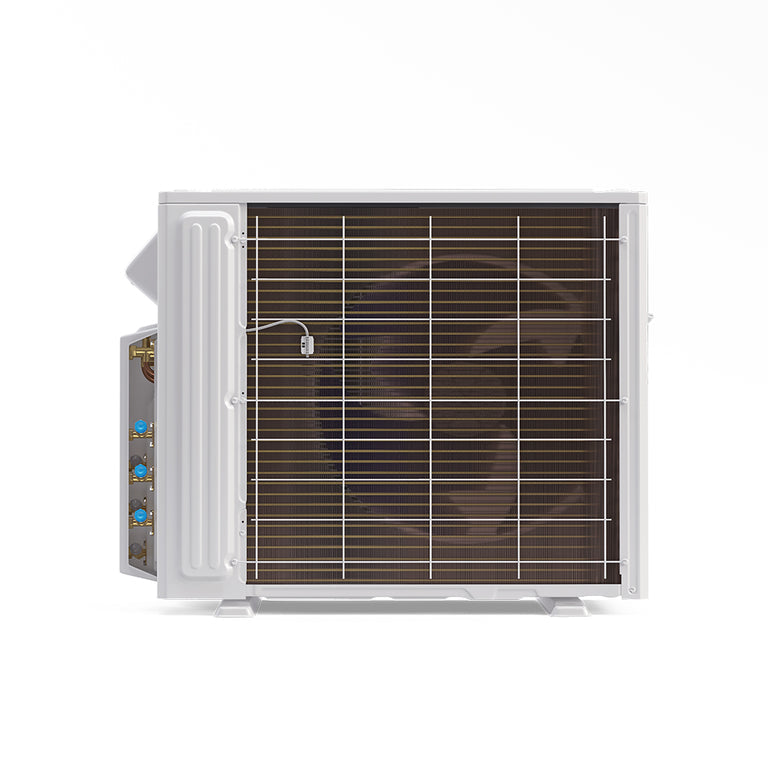

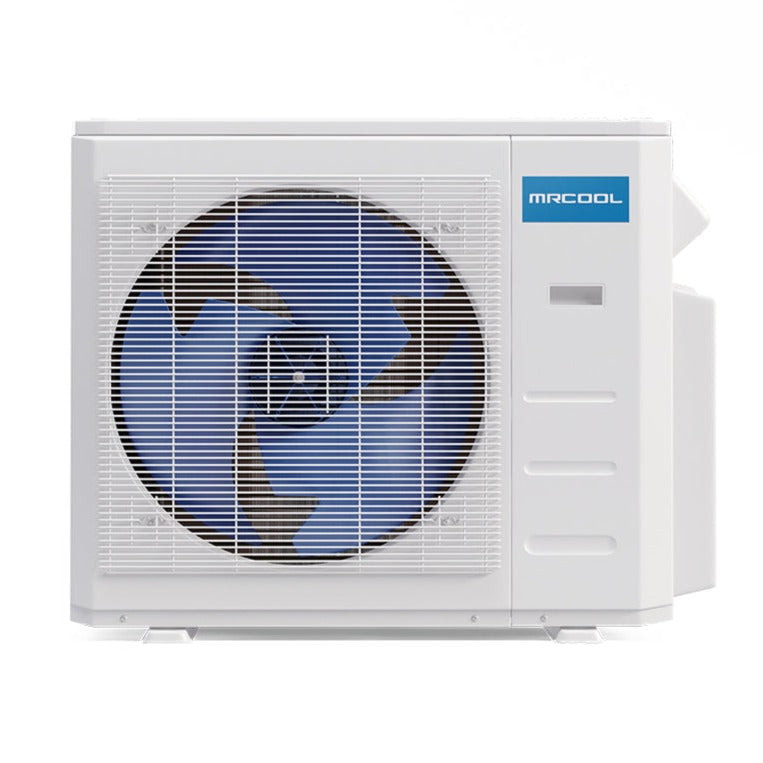

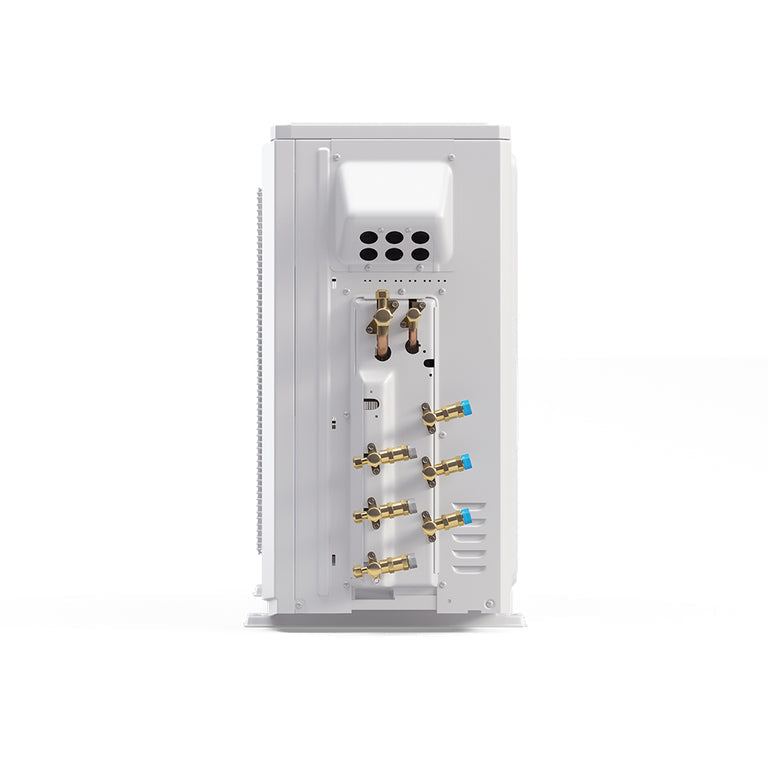

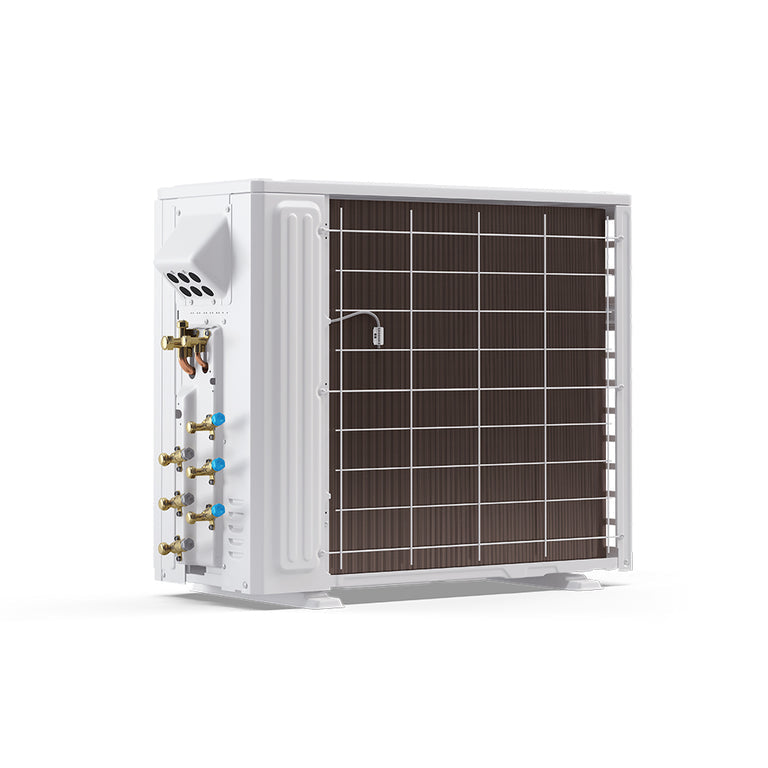

MRCOOL DIY 27,000 BTU 3-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser, DIY-MULTI3-27HP230
If you're in need of whole-home comfort but you don't have ductwork, or you want the best and most efficient solution to discomfort without the stress and cost of a professional installation, then this DIY 36k BTU 3 Ton 4-Zone Ductless Mini-Split Air Conditioner and Heat Pump Condenser is the perfect choice for you. This sturdy unit allows you to connect up to four DIY air handlers to it using pre-charged DIY line sets in order to cover as much space as possible in your home with clean, efficient, and comforting air. The best part about all of this is that you can install it yourself!
This condenser possesses an impressive temperature range, as it can provide you comfort from -13° to 122°F. It's also extremely well-built with a Gold Fin condenser coating that will protect it from rust and water damage. You'll also be able to enjoy the peace of mind from a 5 year parts warranty and a 7 year compressor warranty when you register your unit online. You'll feel economic, comfortable, and handy once this DIY 36k BTU 3 Ton 4-Zone Ductless Mini-Split Heat Pump Condenser is working to bring you total climate contentment.
Features:
- Easy DIY Installation
- Gold Fin condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
| Dimensions |
37.24W" x 16.14"D x 31.89"H |
| Weight |
162 lbs. |
| Freight Class |
92.5 |
| Mount Type |
Condenser |
| Unit Type |
Mini-Split |
| SEER |
21.5 |
| EER |
10.5 |
| COP 47 |
3.4 |
| HSPF |
11 |
| Tonnage |
3 |
| Cooling Capacity |
36,000 BTU |
| Heating Capacity |
36,000 BTU |
| Color |
White |
| Electrical Requirements |
208-230V / 60Hz / 30A |
| Max Fuse Breaker |
45 A |
| Max Coverage Area |
1500 sq ft |
| Zone Capacity |
4 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
102.3 oz |
| Decibel |
64.5 dBA |
| Ambient Temperature |
-13 - 122 F |
| Max Lineset Length |
262ft Max |
| Liquid Line Size |
1/4in (x4) |
| Suction Line Size |
1/2in (x4) |
| Control Type |
LED |
| Compressor Motor Type |
Rotary |
| Inverter |
Yes |
| Includes |
Batteries |
| Certificates |
CSA
AHRI |
| Warranty |
5-year Parts/7-year Compressor/1-year Remote |
