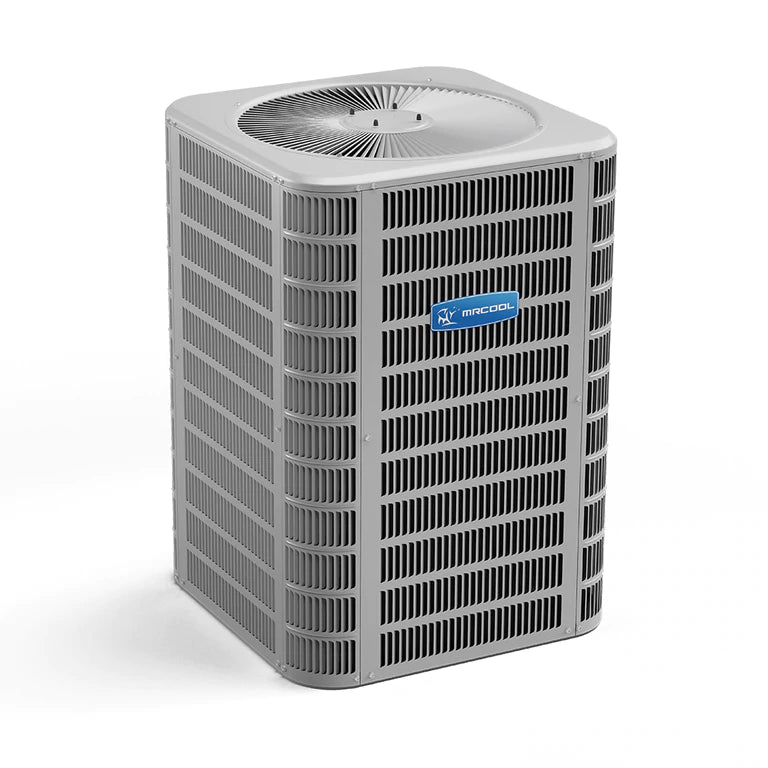

MRCOOL 1.5 Ton 18,000 BTU Split System Heat Pump - MHP15018A
The MRCOOL 15 SEER Heat Pump Split System works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck.
You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
FEATURES:
- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil
- 4-screw louver panels, corner-mounted controls and 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified
- 10 year registered parts warranty
SPECIFICATIONS & DIMENSIONS:
| Product Dimensions |
28.25"W x 28.25"D x 37"H |
| Product Weight |
175 lbs |
| Unit Type |
Split System Heat Pump |
| SEER |
15
|
| Max SEER |
14-16
|
| EER |
12 |
| COP 47 |
3.5 |
| COP 47 Part Load |
2.3 |
| HSPF |
8.2 |
| CFM |
650
|
| Tonnage |
1 1/2
|
| Cooling Capacity |
18000 |
| Heating Capacity |
17000 |
| Voltage |
Requires a minimum of 208V-230V/60HZ/20A (please check your home meets this electrical requirement prior to purchase) |
| Phase |
1 |
| Cycle |
60 |
| Stage |
Single |
| Max Fuse Breaker |
20 |
| Min Circuit Ampacity |
12.2 |
| Color |
Gray |
| Rated Load |
9 |
| Max Coverage Area |
750 |
| Refrigerant Type |
R-410A |
| Refrigerant Volume |
93 |
| Decibel Rating |
74 |
| Min Ambient Cool |
55 |
| Line Set Length |
15ft, 25ft, 35ft, 50ft |
| Max Line Set Length |
50ft
|
| Line Set Fitting Type |
Sweat |
| Liquid Line Size |
3/8 in |
| Suction Line Size |
3/ 4
|
| Compressor Motor Type |
Scroll |
| Condenser Fan Motor Type |
Direct Drive |
| Condenser Fan Motor HP |
1/6 |
| Condenser Fan Motor RPM |
825 |
| Metering Device |
TXV |
| Auxiliary Heater |
Yes |
| Auxiliary Heater Sizes |
7.5kw |
| Certifications |
ETL
AHRI |
| Warranty |
Registered 10 Year Parts Warranty
|
| Base Warranty |
5 Year Parts Warranty |
| Base Parts Warranty |
5 Year Parts Warranty |
PRODUCT MANUALS:
