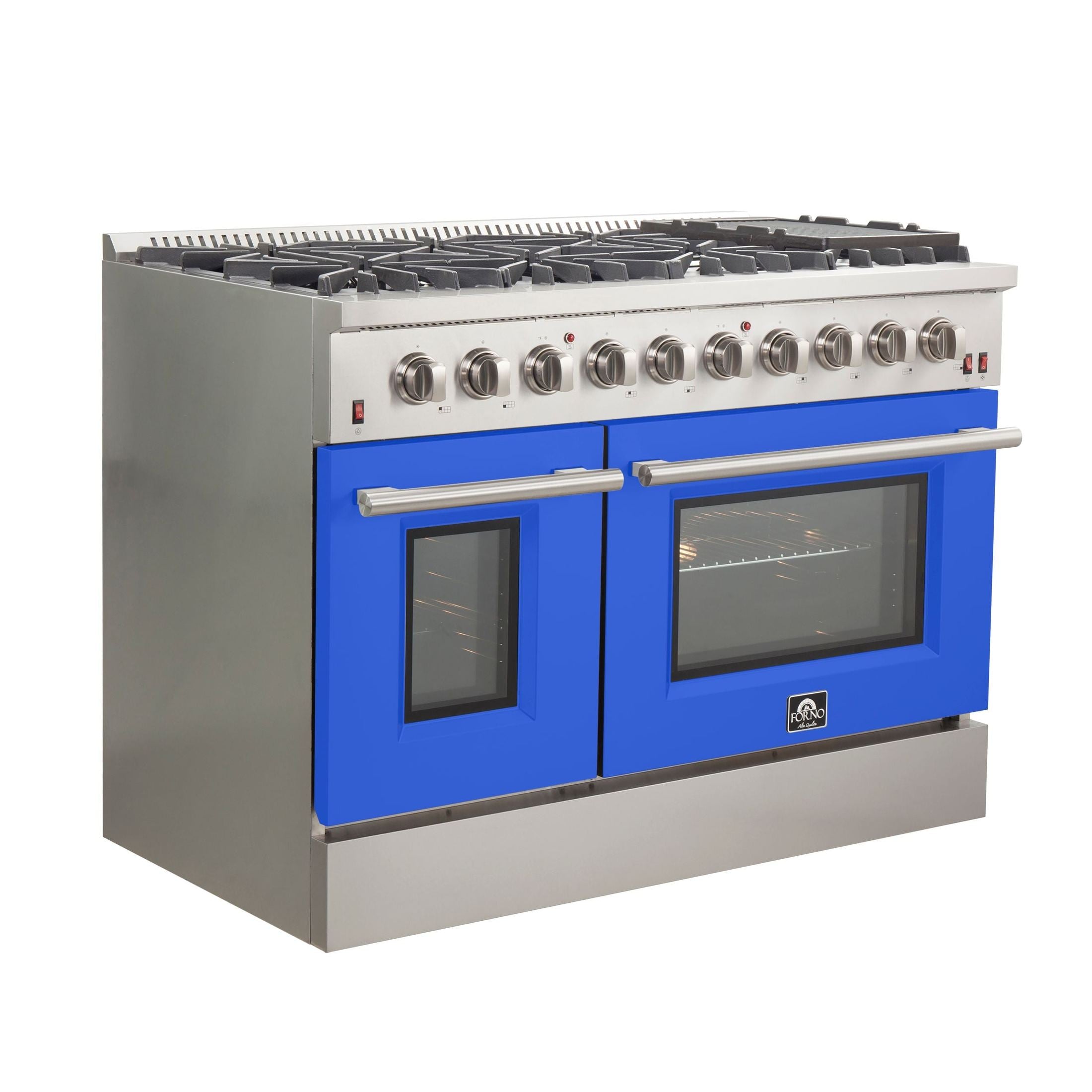

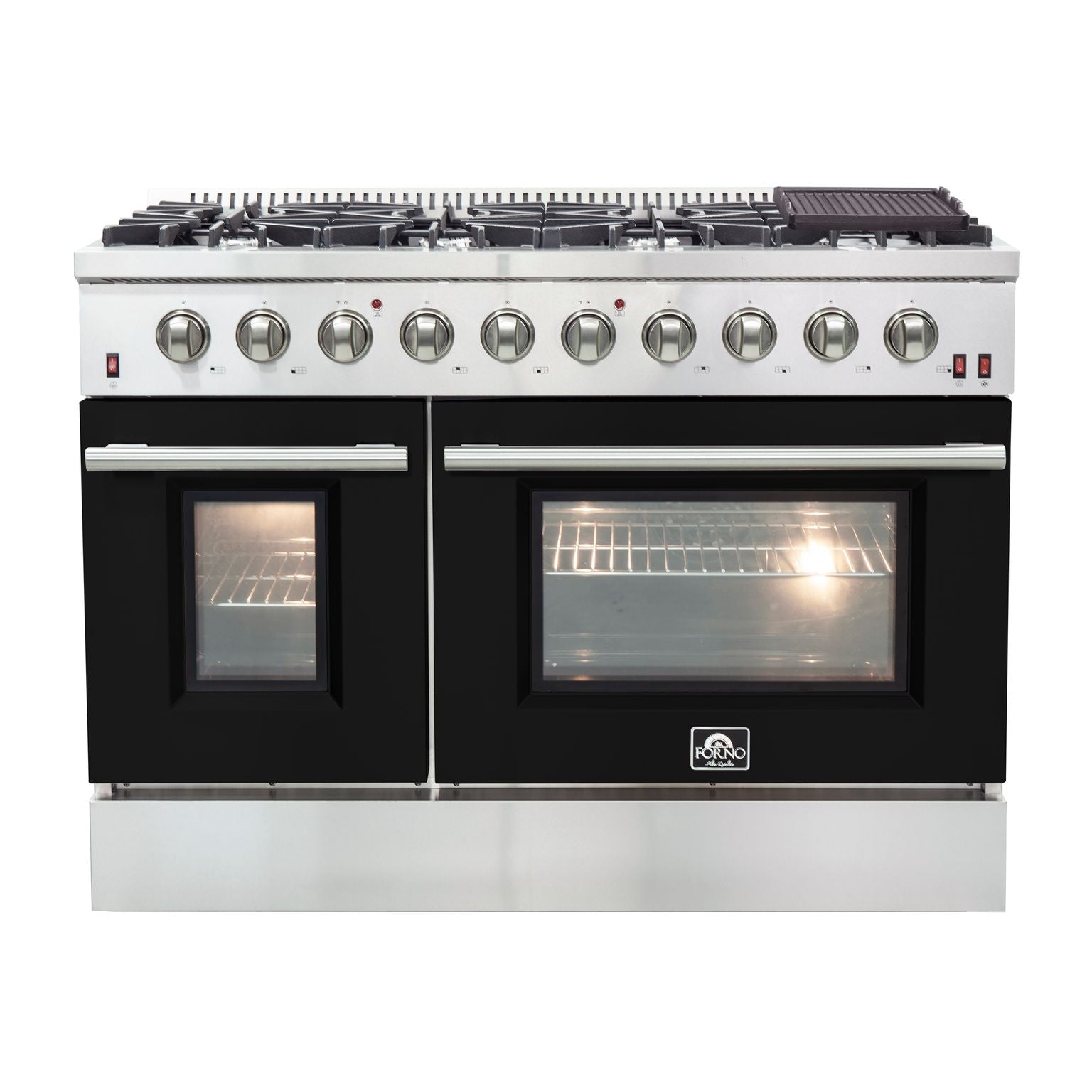

FORNO Vittorio - Gold Professional 48" Freestanding Colored Door Gas Range FFSGS6244-48RED

ALTA QUALITA 48" PRO-STYLE STAINLESS STEEL GAS RANGE WITH CONVECTION OVEN  8 DEFENDI ITALIAN BURNERS TOTALING 107,000 BTU

Features

• Black Matte Cast Iron Continious Burner Grates
• Black Enamel Surface Plate for Easy Clean
• Illuminated Zinc Cast Knobs
• True European Convection
• Infrared Broil Element with 10,000 BTU
• Black Enameled Oven Interior

Additional Features

• Surface Burners Include One 20,000 BTU Max and 1,000 Min.
• Dual Ring Burner For Maximum Cooking Control
• Auto Flame Re-ignition on Surface Burners
• 2" Heat Shield and Back Splash
• Stainless Steel Side Panels
• 3 Glass Layers In Door for Easy View and Safety
• Black Enameled Oven Interior
• 2 Halogen Oven Lights
• FORNO Easy Clean Pro-Style Handle
• Lower Stainless Decorative Panel
• 4 Oven Racks
• Reversible Cook Plate Accessory for Grill or Griddle
• Oven Heat Gasket Mounted on Oven Frame
• 2 Year Factory Parts and Labour Warranty

Specifications

• 4 Electroplate Racks (4mm & 7.5mm)
• Thermostat, Regulator and Safety Valves
• Adjustable Stainless Steel Legs ( from 38” to 39”)
• LP Kit Included
• Fuel Type: Natural Gas Converts to LP
• Automatic Ignition
• 8 Italian Defendi Burner
• Front Right Sealed Dual Burner BTU: 20,000 /Sim 1,000 BTU
• Front Left-Center Sealed Single Burner BTU: 15,000
• Front Right-Center Sealed Single Burner BTU: 15,000
• Front Left Sealed Single Burner BTU: 15,000
• Rear Left Sealed Single Burner BTU: 9,000
• Rear Left-Center Sealed Single Burner BTU: 9,000
• Rear Right-Center Sealed Single Burner BTU: 9,000
• Rear Right Sealed Single Burner BTU: 15,000
• Oven Capacity: 30” is 4.32 cu. ft & 18” is 2.26 cu. ft

Instruction Manual

https://www.dropbox.com/sh/gywhup6l47r35x3/AACHREU9q4fZIRDRKmSDiddZa?dl=0
