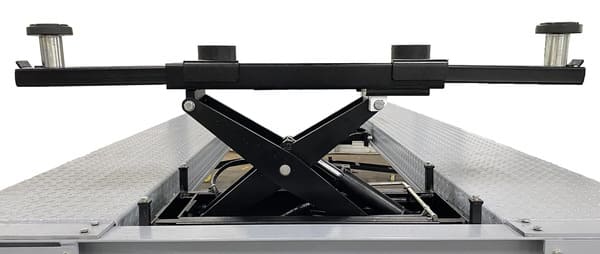

Triumph RJ-5000 5,000 lb Rolling Bridge Jack
Boost your vehicle service capabilities with the Triumph RJ-5000 Rolling Bridge Jack, designed for maximum versatility and precision. With a lifting capacity of up to 5,000 lbs and adjustable pad widths, this jack is perfect for lifting one end of a vehicle for brake jobs, suspension work, or wheel service. It comes equipped with a set of 4” height adapters, making it a reliable solution for both low-clearance and taller vehicles. Built for compatibility with most four-post lifts, the RJ-5000 delivers durability and ease of use straight out of the box.
Triumph RJ-5000 Bridge Jack Key Features
- 5,000 lb capacity handles most cars and light trucks
- Comes with one set of 4" height adapters
- Smooth rolling design for easy positioning
- Adjustable pad widths for broad lift compatibility
- Heavy-duty steel construction for long-term use
- Compatible with most Triumph four-post car lifts

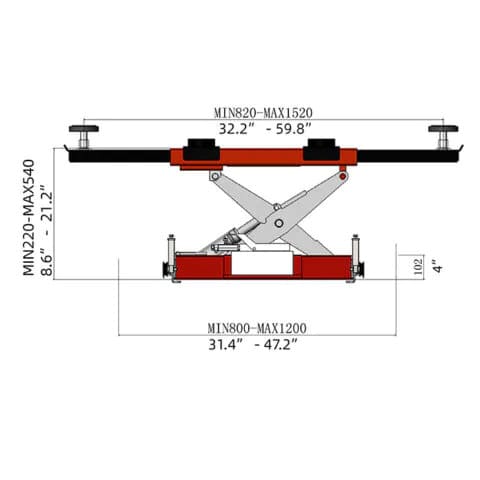

Rolling Bridge Jack Specifications – RJ-5000 Model
| Capacity |
5,000 lbs |
| Lowered Height |
8.6" |
| Max Lifting Height |
22.5" |
| Min Pad Width |
32.2" |
| Max Pad Width |
59.8" |
| Min Width Between Runways |
31.4" |
| Max Width Between Runways |
47.2" |
| Shipping Weight |
600 lbs |
| Shipping Dimensions |
48" x 28" x 16" |
