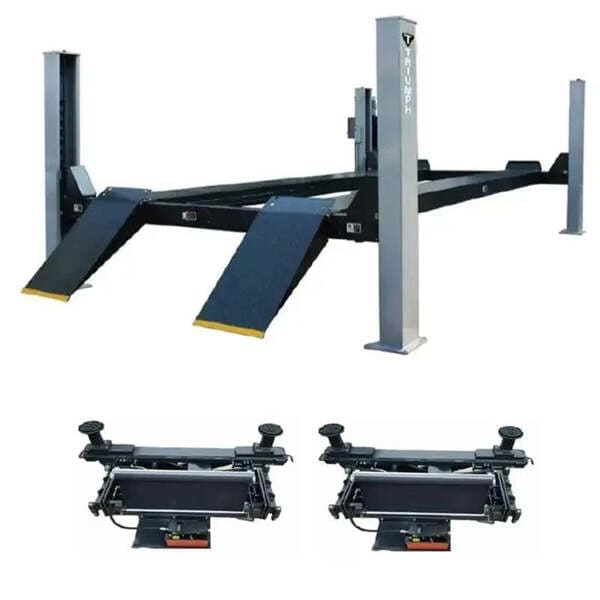

Triumph NTR-32 4 Post Heavy Duty Truck Lift Package
The Triumph NTR-32 Four-Post Lift with two RJ-15000 Rolling Bridge Jacks is engineered for extreme heavy-duty lifting. Built for commercial trucks, buses, and oversized fleet vehicles, this industrial-grade combo provides unmatched durability, stability, and safety for high-volume service centers and repair shops.
32,000 lb 4 Post Truck Lift Features
-
Handles up to 32,000 lbs for buses, trucks, and fleets
-
Industrial-grade steel construction for maximum strength
-
Four-post design ensures stability and balanced lifting
-
Hydraulic system delivers smooth, controlled operation
-
Dual RJ-15000 rolling jacks for precise wheel servicing
-
Multiple safety lock positions for added protection
-
Ideal for heavy-duty fleets, repair shops, and service centers
Triumph NTR-32 Lift Specifications
Capacity: 32,000 lbs
Overall Height: 93.1"
Overall Length (No Ramps): 305.5"
Overall Length (With Ramps): 344.6"
Overall Width: 168.7"
Runway Length: 295.2"
Runway Width: 24"
Width Between Runways: 48.75" – 52.7"
Width Between Columns: 139.2"
Minimum Runway Height: 9"
Maximum Lifting Height: 70.8"
Locking Positions: 9
Power Requirement: 220V Single Phase
Shipping Weight: 9,037 lbs
Shipping Dimensions: 301" x 30" x 43"

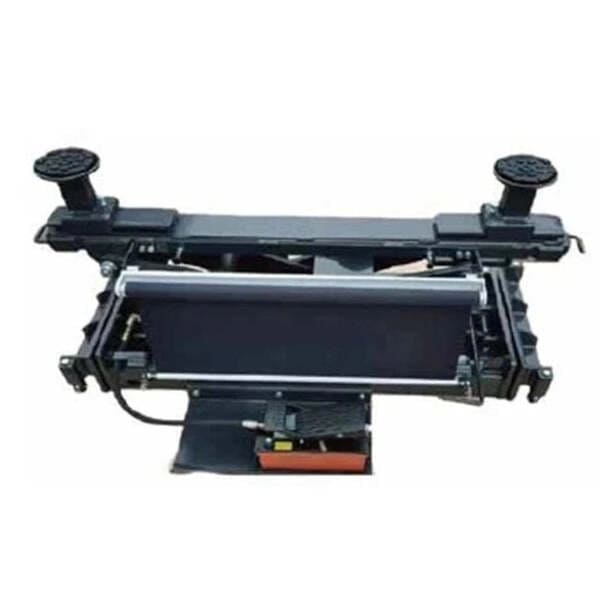

RJ-15000 Rolling Jack (x2):
-
Capacity: 15,000 lbs each
-
Lowered Height: 15.3"
-
Maximum Lifting Height: 28.3"
-
Width Between Pads: 42.6" – 68.7"
-
Width Between Runways: 48.7" – 55"
-
Shipping Weight: 661 lbs
-
Shipping Dimensions: 51" x 33" x 17"
