Triumph NTR-24 4 Post Heavy Duty Car Lift Package

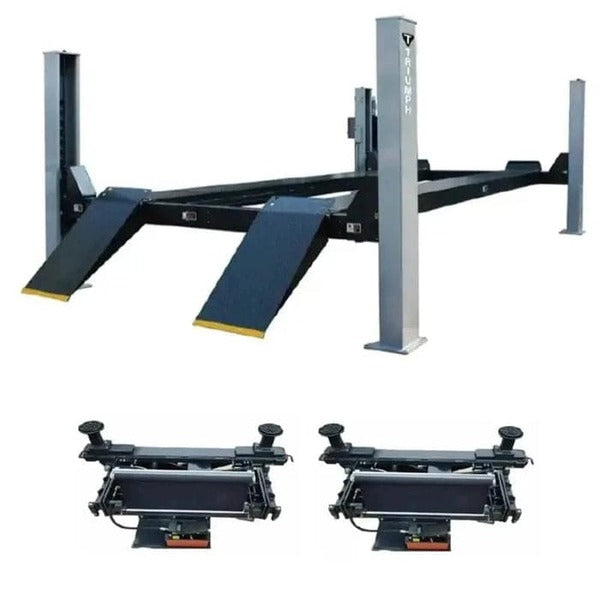

The Triumph NTR-24 Four-Post Lift with two RJ-15000 Rolling Bridge Jacks is engineered for heavy-duty vehicle lifting. Built for trucks, buses, and fleet vehicles, this combo provides unmatched durability, safety, and lifting capacity for industrial-grade shops and fleet service centers.
NTR-24 24,000 lb 4 Post Lift Features
-
Handles up to 24,000 lbs for trucks, buses, and fleets
-
Industrial-grade steel construction for maximum strength
-
Four-post stability ensures safe, balanced lifting
-
Hydraulic system delivers smooth operation and control
-
Dual RJ-15000 jacks allow wheel service flexibility
-
Multiple safety lock positions at various heights
-
Perfect for commercial shops, fleet facilities, and heavy-duty repair
Triumph NTR-24 Lift Specifications
Capacity: 24,000 lbs
Overall Height: 93.1"
Overall Length (No Ramps): 300"
Overall Length (With Ramps): 338.9"
Overall Width: 150.1"
Runway Length: 289.9"
Runway Width: 24"
Width Between Runways: 45.3" – 49.2"
Width Between Columns: 131.8"
Minimum Runway Height: 9"
Max Lifting Height: 70.8"
Locking Positions: 9
Power Requirement: 220V Single Phase
Shipping Weight: 6,614 lbs
Shipping Dimensions: 295" x 30" x 43"

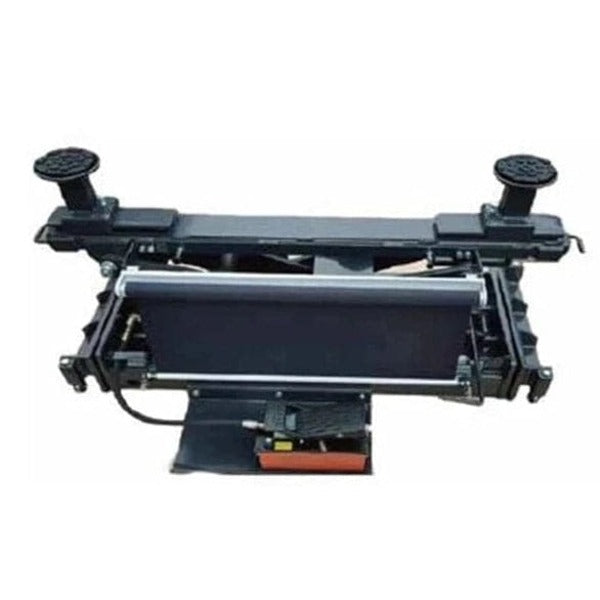

RJ-15000 Rolling Jack (x2):
-
Capacity: 15,000 lbs each
-
Lowered Height: 15.3"
-
Maximum Lift Height: 28.3"
-
Width Between Pads: 42.6" – 68.7"
-
Width Between Runways: 48.7" – 55"
-
Shipping Weight: 661 lbs
-
Shipping Dimensions: 51" x 33" x 17"
