Triumph NTO-20 20,000 lb Best 2 Post Car Lift
Built for serious lifting, the Triumph NTO-20 20,000 lb Two Post Auto Lift delivers commercial-grade performance for large trucks, fleet vehicles, and heavy-duty equipment. This ISO 9001 and CE Certified lift includes direct-drive cylinders, a single-point lock release, and an electric safety shut-off to ensure smooth, reliable operation. Free shipping is included to the lower 48 U.S. states, along with truck adapters and all mounting hardware.
Heavy-Duty Car Lift Features – Triumph NTO-20 20K
-
20,000 lb lifting capacity for heavy-duty and commercial vehicles
-
Direct drive cylinders for efficient, smooth lifting
-
Electrical override automatic safety shut-off
-
Free mounting hardware and truck adapters included
-
Certified ISO 9001 and CE compliant for quality assurance
-
Built with rugged components for long-lasting durability
-
Must be installed on 6" concrete slab rated at 4,000 PSI
-
Covered by a 1-year parts warranty

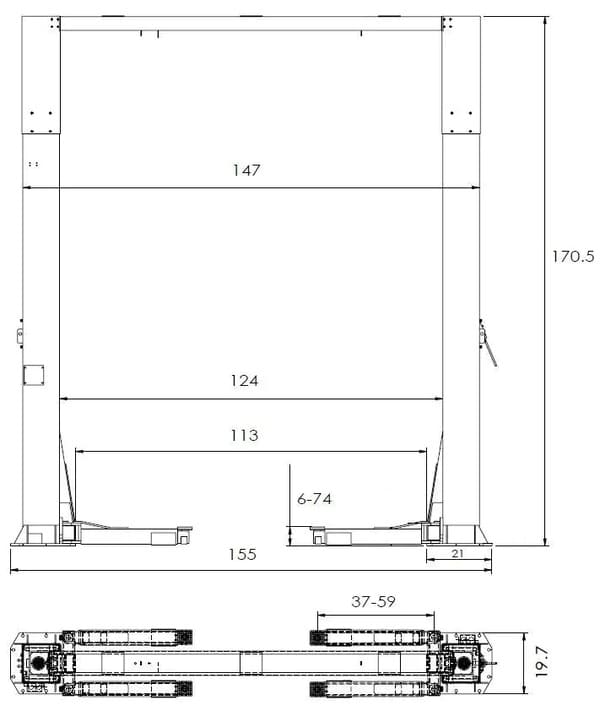

Triumph NTO-20 20,000 lb Vehicle Hoist Specifications
| Capacity |
20,000 lbs |
| Overall Height |
170.5" |
| Overall Width |
155" |
| Distance Between Posts |
124" |
| Drive Thru Width |
113" |
| Lifting Height |
74" |
| Lowered Height |
6" |
| Base Plate Size |
21" x 20" |
| Truck Adapters |
Included |
| Lock Release |
Single Point |
| Electric Safety Cutoff |
Yes |
| Lift Time |
40 Seconds |
| Voltage |
220 Volt |
| Horsepower |
3 HP |
| Concrete Requirement |
|
| Style |
Overhead |
