Triumph NT-9 9,000 lb Two Post Auto Lift for Garage & Shop Use
Experience reliable and affordable vehicle lifting with the NT-9 Two Post Auto Lift. Designed for both home garages and professional shops, this heavy-duty 9,000 lb capacity lift offers exceptional value and performance. Its three-stage front arms provide extended reach to accommodate a wide range of vehicles, while the floor plate design safely covers cables and hoses, making it ideal for low ceiling environments. Complete with a powerful 3 HP motor and essential mounting hardware, the NT-9 ensures a smooth, safe lift every time — perfect for jumpstarting your business or enhancing your dream garage.
Triumph NT-9 9,000 lb Two Post Auto Lift Features for Vehicle Lifting
-
Heavy-duty 9,000 lb lifting capacity for cars, trucks, and SUVs
-

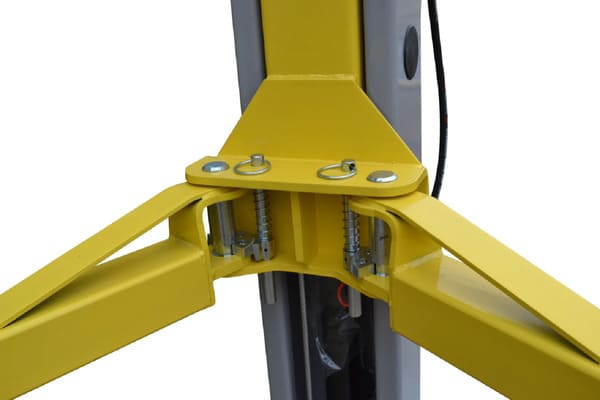

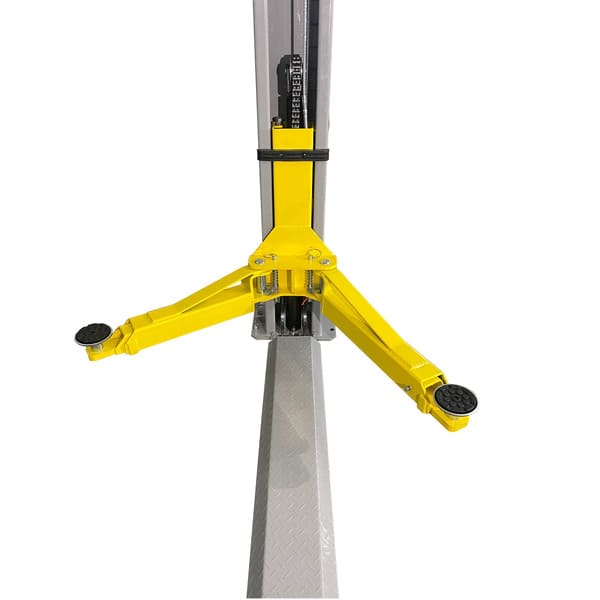

Three-stage adjustable front arms for versatile vehicle reach
-
Floor plate design for cable/hose protection and low ceiling clearance
-

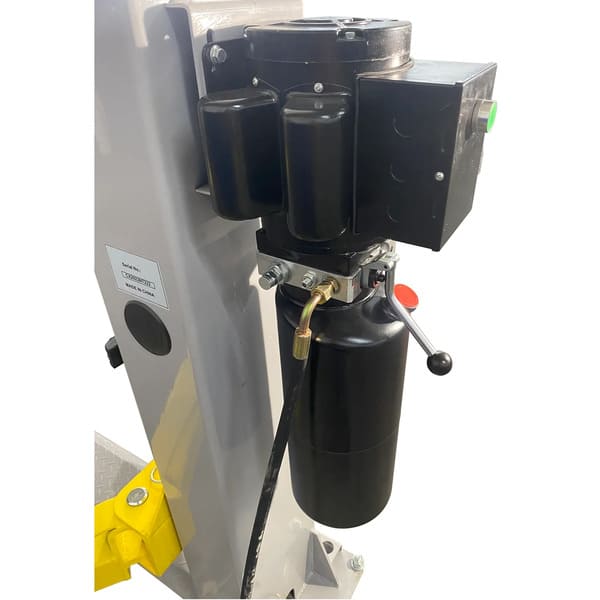

Includes power unit, motor, and floor mounting hardware
-
Dual-point lock release for enhanced safety
-
Truck adapters included for larger vehicles
-
Quick 40-second lifting time with 3 HP motor
-
Compatible with 110V electrical systems
NT-9 Two Post Auto Lift Specifications & Dimensions
| Lifting Capacity |
9,000 lbs |
| Overall Height |
111" |
| Overall Width |
132" |
| Width Between Posts |
|
| Drive Thru Width |
|
| Maximum Lifting Height |
72" |
| Lowered Height |
4.5" |
| Base Plate Size |
19" x 17" |
| Lock Release |
Dual Point |
| Electric Safety Shutoff |
No |
| Concrete Requirement |
3,000 PSI |
| Motor Power |
3 HP |
| Voltage |
110 Volts |
| Lift Time |
40 seconds |
| Shipping Weight |
1,303 lbs |
