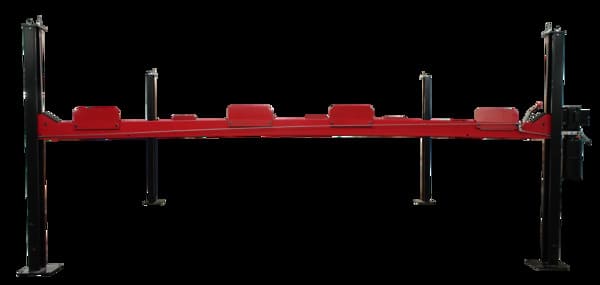

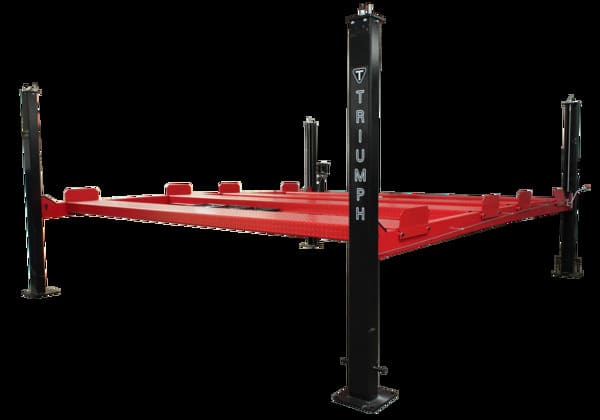

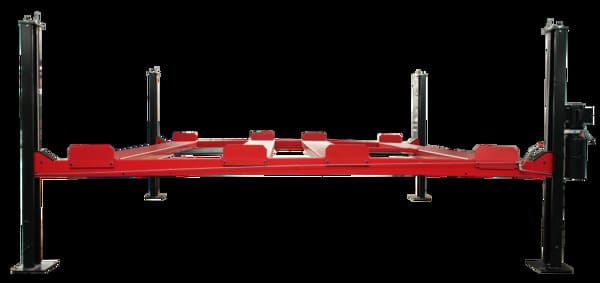

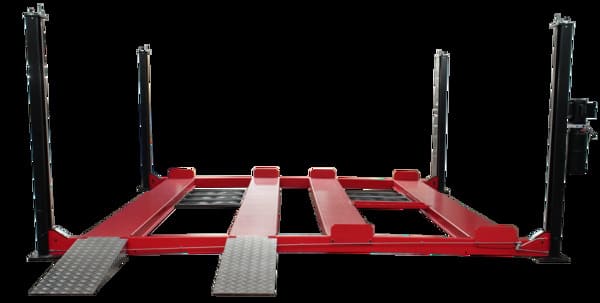

Triumph NSS-9000DW Double Wide 4 Post Car Lift

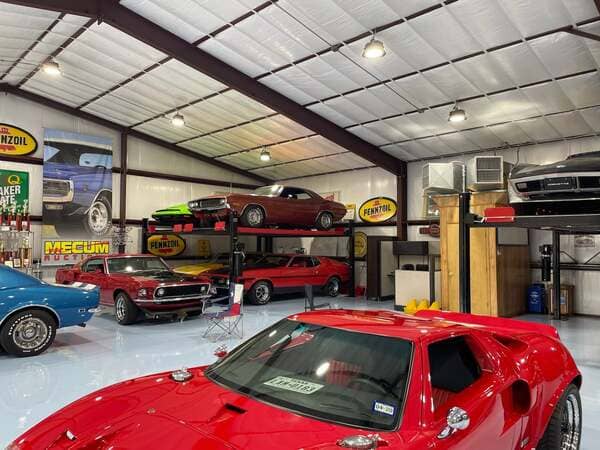

The Triumph NSS-9000DW is a 9,000 lb capacity double-wide 4-post lift designed for both vehicle storage and service. Its wide design allows you to park or work on two cars side-by-side, making it perfect for garages, collectors, or shops needing maximum efficiency. Equipped with 12 locking positions, single-point release, and included jack/drip trays, this lift combines safety, durability, and practicality.
Double Wide 4 Post Car Lift Features
-
9,000 lb lifting capacity
-

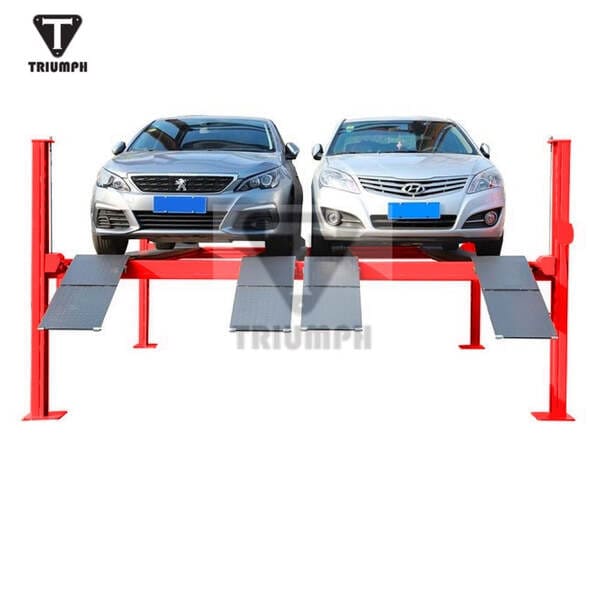

Double-wide design — store or service two vehicles side-by-side
-

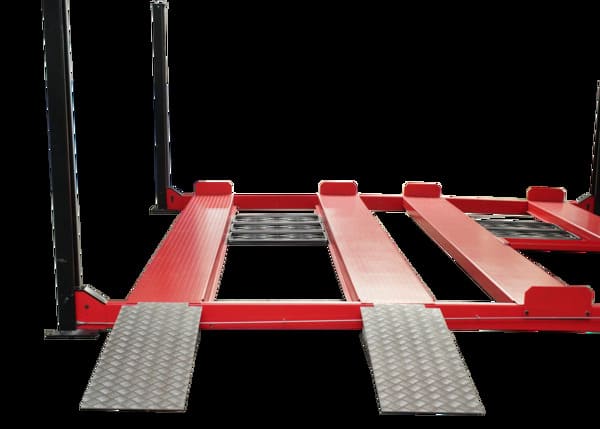

Heavy-duty steel runways with 12 locking positions
-
Single-point lock release for safe operation
-
Wide drive-through clearance (192")
-
Includes jack tray + 3 drip trays
-
110V power, ~60-second lift time
-
Powder-coated black & red finish

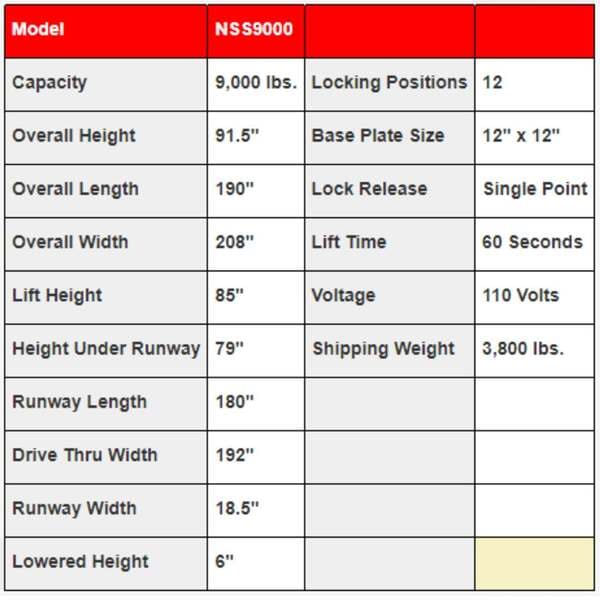

Triumph NSS-9000DW Car Lift Specifications
-
Capacity: 9,000 lbs
-
Overall Height: 91.5"
-
Overall Width: 208"
-
Overall Length: 190"
-
Runway Length: 180"
-
Runway Width: 18.5"
-
Lifting Height (Top of Runway): 77"
-
Clearance Under Runway: 72"
-

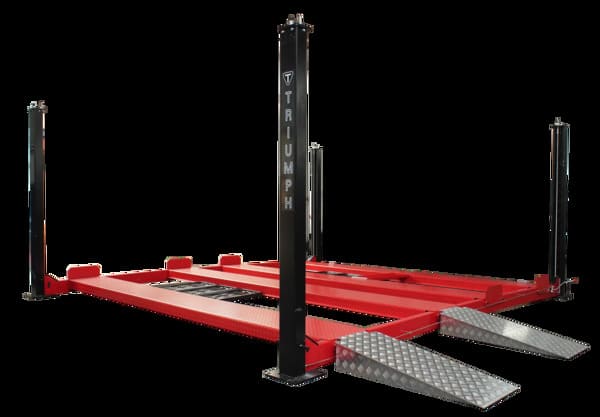

Lowered Height: 6"
-
Drive-Through Width: 192"
-
Locking Positions: 12
-
Base Plate: 12" × 12"
-
Voltage: 110V
-
Lift Time: ~60 sec
-
Shipping Weight: ~3,800 lbs
