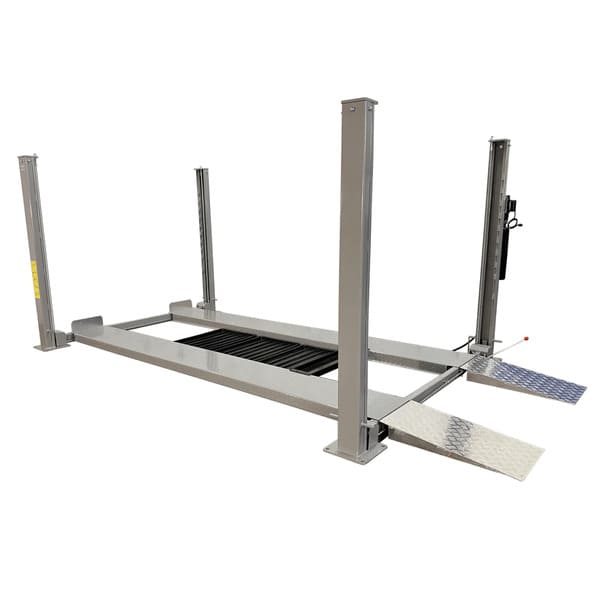

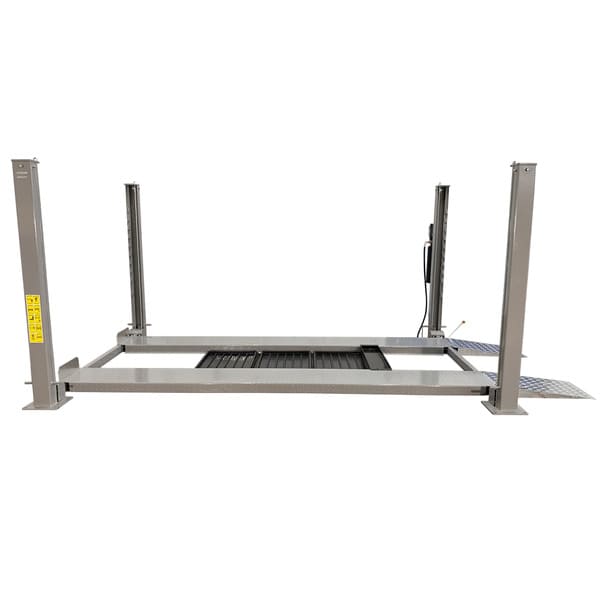

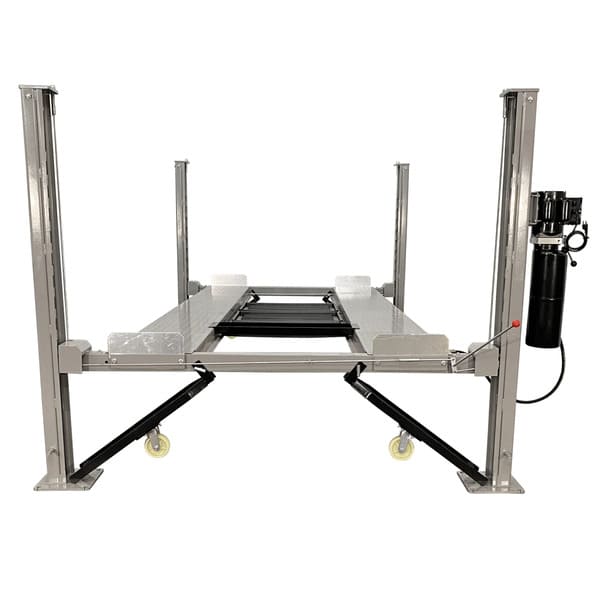

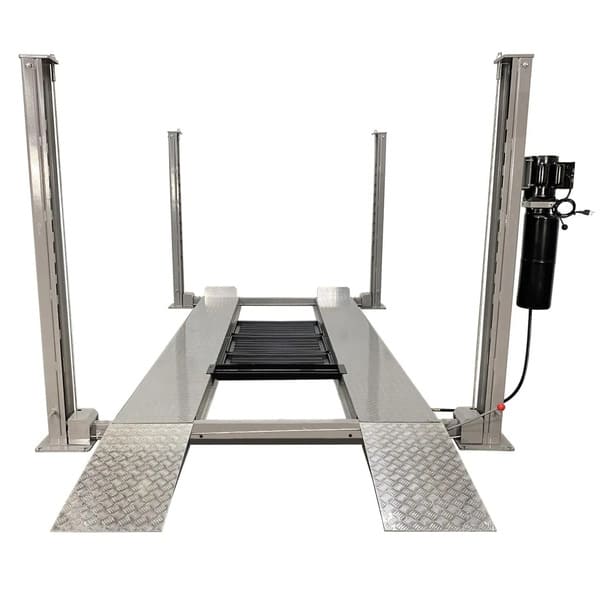

Triumph NSS-8 8,000 lb Four Post Car Lift for Auto Storage

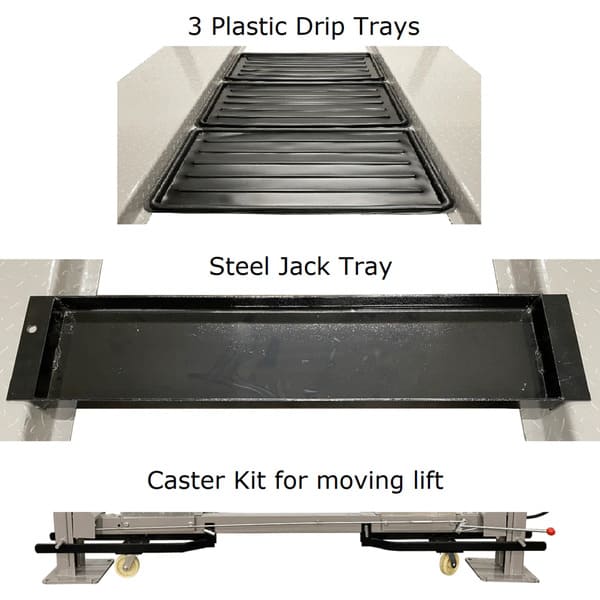

The Triumph NSS-8 Four Post Lift is the ideal solution for both vehicle storage and at-home service. Whether you're a DIY mechanic or just need more space in your garage, this 8,000 lb lift gives you the flexibility to work or park with confidence. The unit includes a caster kit, jack tray, and three drip trays — perfect for keeping your lower vehicle clean and maximizing utility.
With 10 automatic locking positions, a time-tested structure, and quick setup, the NSS-8 combines safety and convenience in one portable lift. No permanent installation required — just roll it where you need it and lift with ease. Comes standard in Grey.
Triumph NSS-8 8,000 lb Four Post Car Lift for Auto Storage Highlights
-
8,000 lb lifting capacity for cars, trucks, and SUVs
-

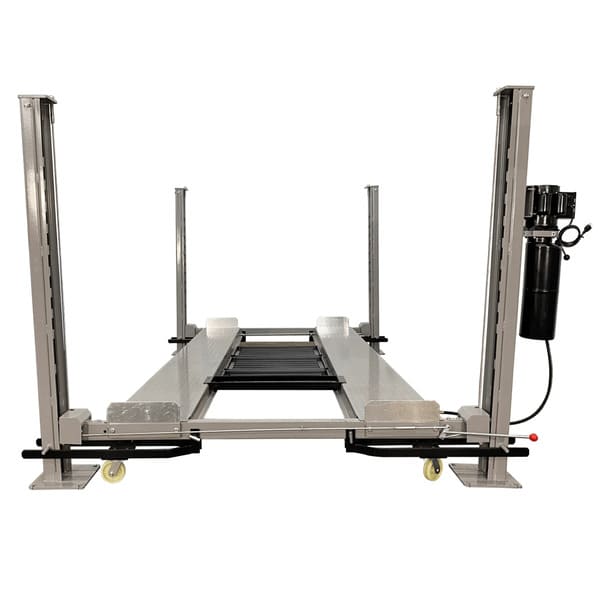

Includes caster kit for portability
-
Jack tray allows bottle or floor jack use
-

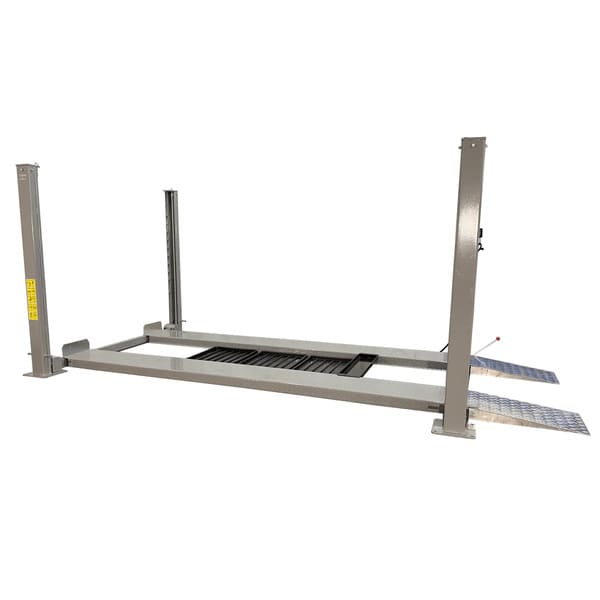

Drip trays catch fluid leaks from upper vehicle
-

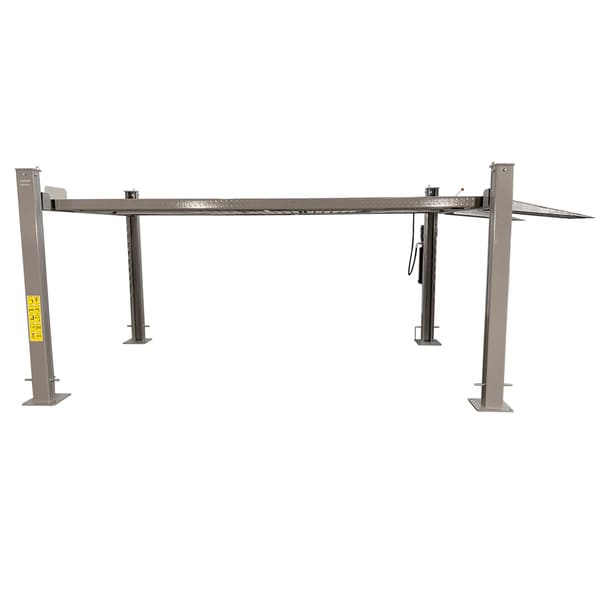

Automatic locks at 10 positions for added safety
-
Easy, quick setup – no bolting required
-
Durable construction with over 20 years of proven use
-
Ideal for residential garages and commercial shops
NSS-8 Four Post Auto Lift Dimensions & Specs
| Lifting Capacity |
8,000 lbs |
| Overall Height |
84" |
| Length w/o Ramps |
175" |
| Length w/ Ramps |
195" |
| Overall Width |
106" |
| Lift Height |
72" |
| Height Under Runway |
69" |
| Runway Length |
165" |
| Drive Thru Width |
93" |
| Runway Width |
18" |
| Space Between Runways |
37" |
| Lowered Height |
5" |
| Locking Positions |
10 |
| Base Plate Size |
12" x 12" |
| Lock Release |
Single-point |
| Lift Time |
40 seconds |
| Voltage |
110V |
| Shipping Weight |
1,600 lbs |
