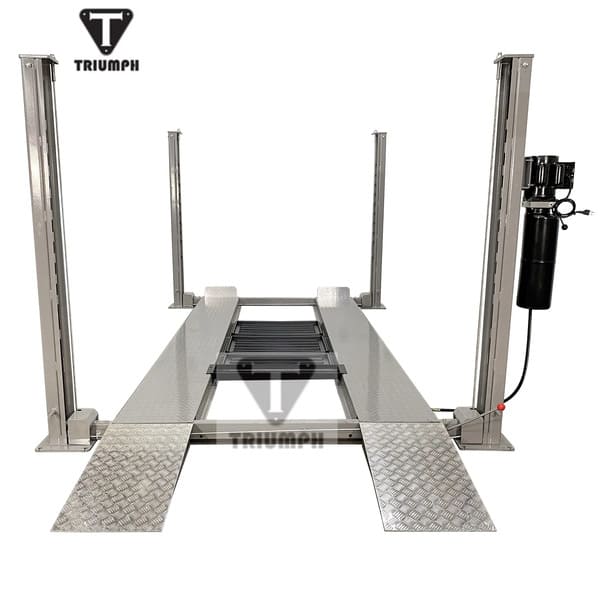

Triumph NSS-8 8,000 lb Four Post Car Lift for Vehicle Storage

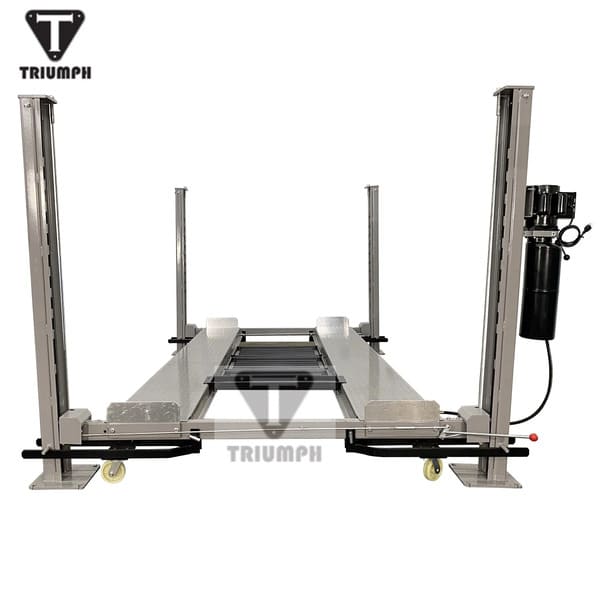

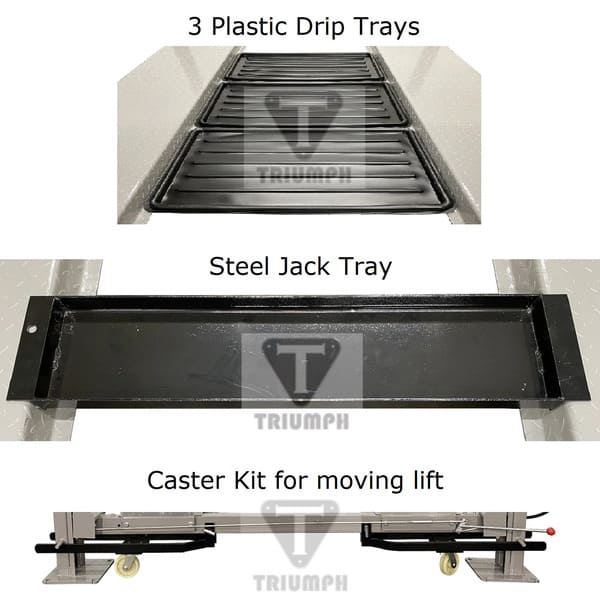

The Triumph 8,000 lb Classic Lift is a proven, reliable solution for both vehicle storage and service. Whether you’re a home mechanic or looking to maximize garage space, this four post lift delivers convenience, safety, and flexibility. It includes a caster kit for portability, a jack tray for lifting one end of the vehicle, and three drip trays to protect the lower car from fluid leaks. Built with over 20 years of time-tested engineering, this model features automatic locking at 10 height positions and a fully portable setup—no bolting required. Ships standard in Grey.
Triumph NSS-8 Features
-
8,000 lb capacity for cars, trucks, and SUVs
-
Three drip trays catch oil and fluid from upper vehicle
-
Jack tray compatible with bottle and floor jacks
-
Caster kit makes the unit fully portable
-
10-position automatic safety lock system
-
Tool-free, quick setup—no permanent installation
-
Ideal for home garages or professional shops

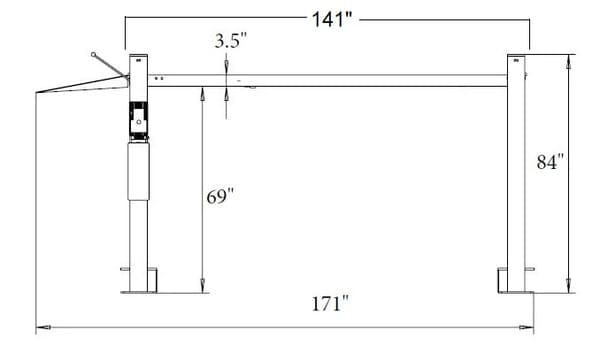

Triumph NSS-8 Specifications
| Capacity |
8,000 lbs |
| Overall Height |
84" |
| Overall Length w/ Ramps |
175" |
| Overall Length w/o Ramps |
141" |
| Overall Width |
106" |

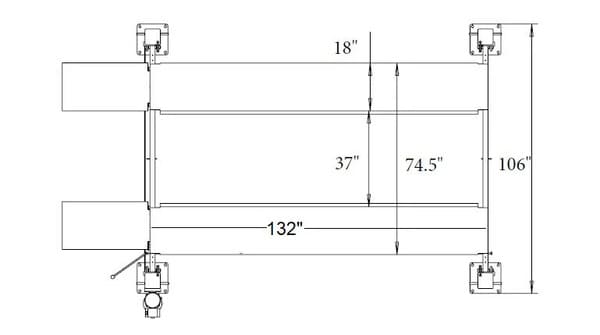

| Runway Length |
132" |
| Runway Width |
18" |
| Space Between Runways |
37" |

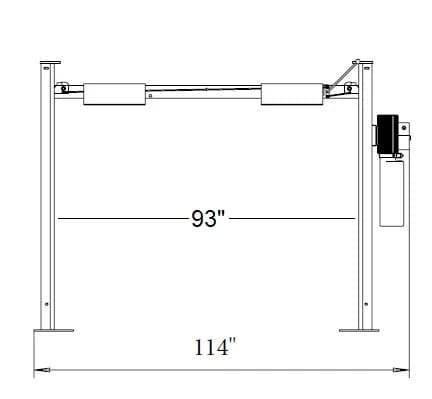

| Drive Thru Width |
93" |

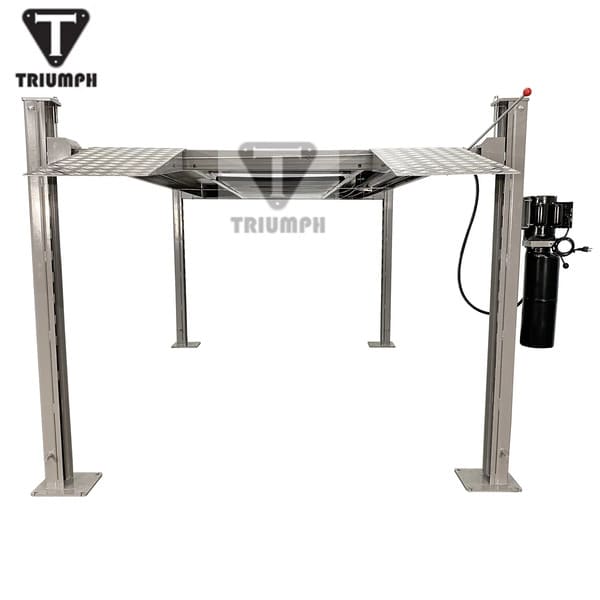

| Lift Height |
72" |
| Height Under Runway |
69" |
| Lowered Height |
5" |
| Locking Positions |
10 |
| Base Plate Size |
12" x 12" |
| Lock Release |
Single Point |
| Lift Time |
40 seconds |
| Voltage |
110V |
| Shipping Weight |
1,600 lbs |
