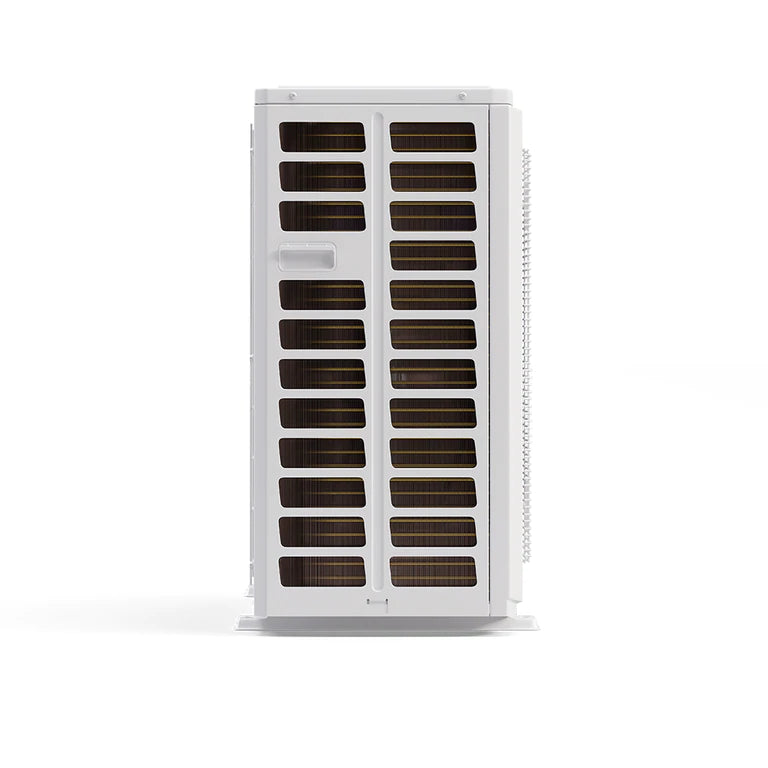

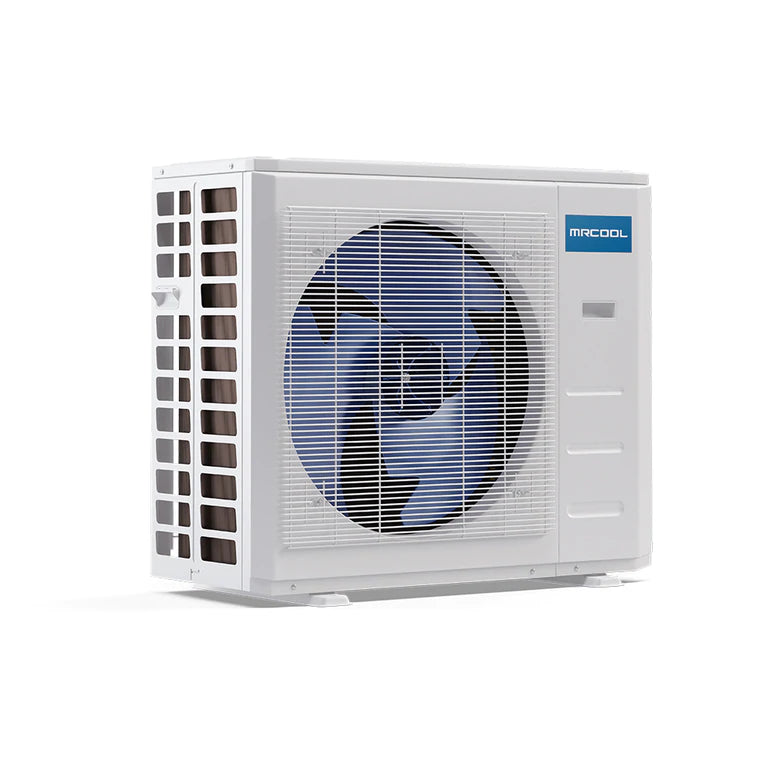

MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C
The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. This condenser has the ability to support up to 4 zones and, when paired with select MRCOOL air handlers, can provide a SEER efficiency rating of up to 21.5.
It even has the ability to provide heat when temperatures drop to -13°F. It features a Gold Fin Condenser coating which allows it to withstand the elements and resist corrosion. MRCOOL stands behind the quality & durability of this condenser by being the only manufacturer to offer a limited lifetime compressor warranty.
However, the most innovative feature is that it can be installed by the homeowner without the use of a certified technician. This is possible because the condenser is intended to be used with MRCOOL’s patented Pre-Charged Quick Connect Line Sets.
These line sets are pre charged with R-410A refrigerant and feature quick connect connectors which allow it to be connected using only wrenches. Because it is pre-charged, the system will not require vacuuming once the installation is complete.
The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump is one of the best options on the market when it comes to multi-zone comfort.
FEATURES:
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
SPECIFICATIONS & DIMENSIONS:
| Product Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Product Weight |
170.42 lbs |
| SEER |
21.5 |
| EER |
10.5 |
| HSPF |
hspf4/hspf5 : 11/8.5 |
| CFM |
2147.06 |
| Cooling Capacity |
36000 BTU |
| Heating Capacity |
36000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
45 A
|
| Min Circuit Ampacity |
27 A |
| Color |
White |
| Zone Capacity |
Up to 4 |
| Refrigerant Type |
R-410A
|
| Refrigerant Volume |
134.04 oz |
| Decibel Rating |
65 dBA |
| Inverter |
Yes |
| Min Ambient Cool |
5F ~ 122F |
| Min Ambient Heat |
-13F ~ 75.2F |
| Max Lineset Length |
196.85 ft TOTAL |
| Liquid Line Size |
1/4in |
| Suction Line Size |
3/8in+1/2in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
1000/900/750 |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Warranty |
5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty |
