MRCOOL DIY 4th Generation Mini Split 30K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit - DIYM336HPW01C28
The 4th Generation MRCOOL DIY 36K BTU 4-Zone Ductless Heat Pump (DIY-MULTI4-36HP230C) offers the latest in heat pump innovations. As part of a MRCOOL DIY system, the MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. The MRCOOL 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL DIY system. This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
PRODUCT INCLUDES:
MRCOOL DIY Multi-Zone 4-Zone Condenser, 4th Gen Series - DIY-MULTI4-36HP230C
MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with 25ft DIY Pro Cable and Enhanced Wi Fi - DIY-09-HP-WMAH-230C25 (x2)
MRCOOL DIY 12k BTU Ductless Mini Split Air Handler, Energy Star, 4th Gen - DIY-12-HP-WMAH-230C25
MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY25-1412 (x3)

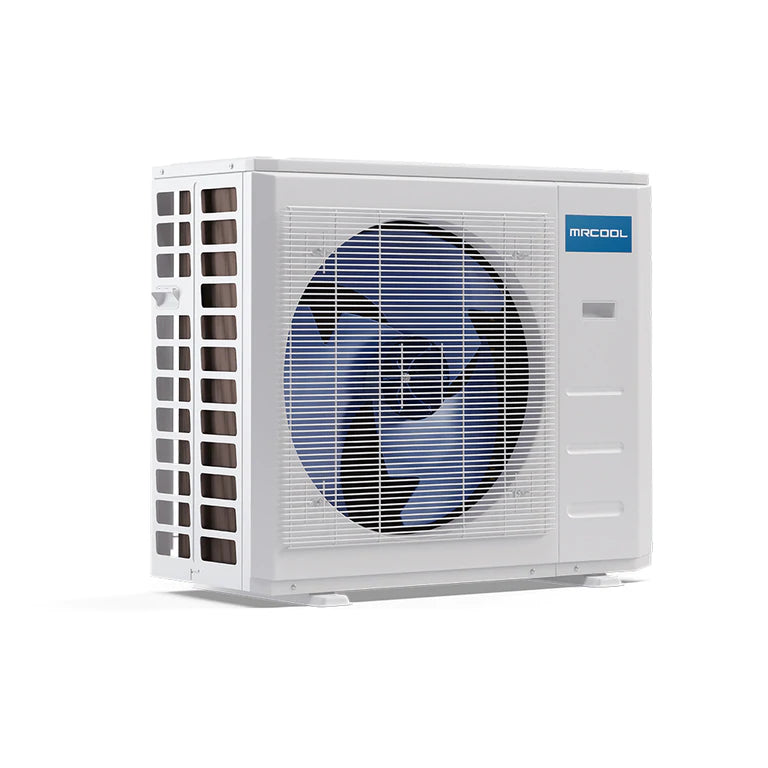

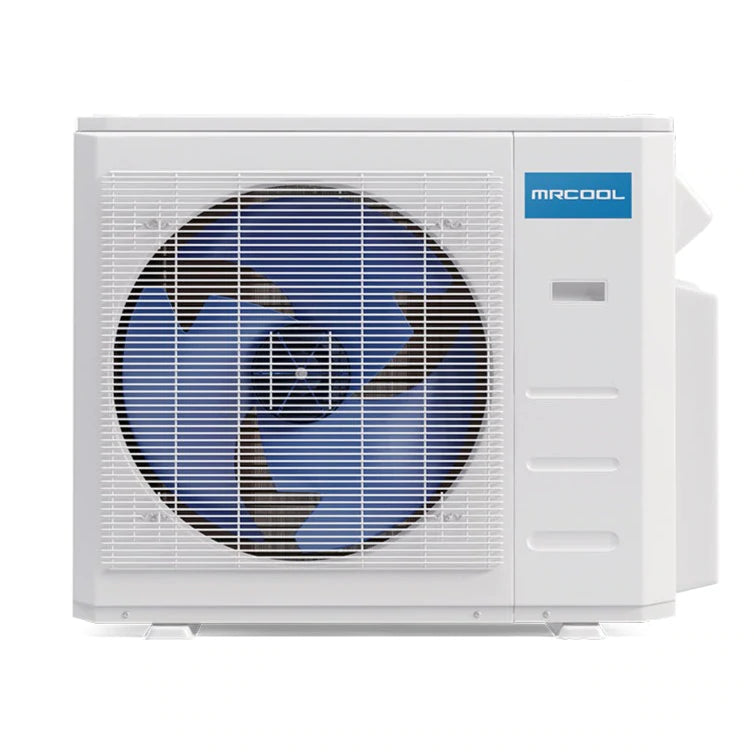

FEATURES CONDENSER DIY-MULTI4-36HP230C
- Up to 21.5 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty

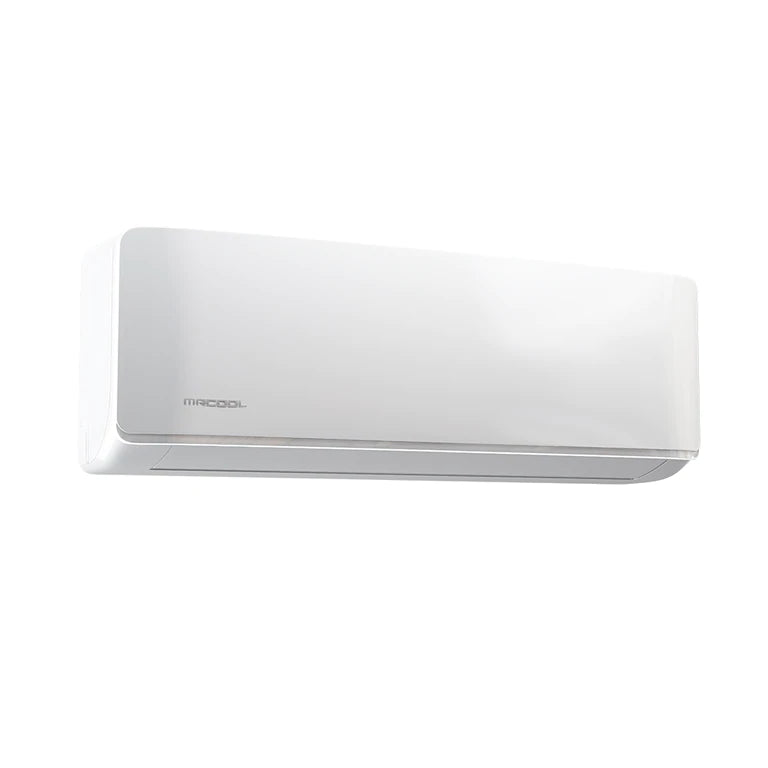

FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES AIR HANDLER DIY-12-HP-WMAH-230C25
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements

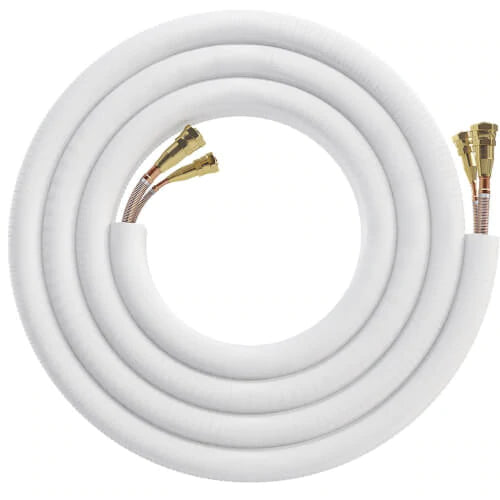

FEATURES LINESET DIY25-1412
- MRCOOL 25ft 1/4 x 1/2 Line set
- Line set for DIY 9K, 12K & 18K Indoor
- Line set Fitting Type: Quick-Connection
SPECIFICATIONS CONDENSER DIY-MULTI4-36HP230C
| Product Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Product Weight |
170.42 lbs |
| SEER |
21.5 |
| EER |
10.5 |
| HSPF |
hspf4/hspf5 : 11/8.5 |
| CFM |
2147.06 |
| Cooling Capacity |
36000 BTU |
| Heating Capacity |
36000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/27-45A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
45 A
|
| Min Circuit Ampacity |
27 A |
| Color |
White |
| Zone Capacity |
Up to 4 |
| Refrigerant Type |
R-410A
|
| Refrigerant Volume |
134.04 oz |
| Decibel Rating |
65 dBA |
| Inverter |
Yes |
| Min Ambient Cool |
5F ~ 122F |
| Min Ambient Heat |
-13F ~ 75.2F |
| Max Lineset Length |
196.85 ft TOTAL |
| Liquid Line Size |
1/4in |
| Suction Line Size |
3/8in+1/2in |
| Compressor Motor Type |
Rotary |
| Condenser Fan Motor RPM |
1000/900/750 |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Warranty |
5-year Parts/7-year Compressor
Registered Warranty - Limited Lifetime Warranty |
SPECIFICATIONS AIR HANDLER DIY-09-HP-WMAH-230C25
| Product Dimensions |
31.57"W x 7.44"D x 11.69"H |
| Product Weight |
23.81 lbs |
| Cooling Capacity |
9000 BTU |
| Heating Capacity |
9000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
15 A
|
| Min Circuit Ampacity |
3 A |
| Mount Type |
Wall |
| Color |
White |
| Max Coverage Area |
Up to 375 sqft |
| Refrigerant Type |
R-410A |
| Inverter |
Yes |
| Liquid Line Size |
1/4 in |
| Suction Line Size |
1/2 in |
| Blower Motor RPM |
1050/850/650 |
| Modes |
Fan Only
Quiet Mode
Auto Cool |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Includes |
Remote
Batteries
|
| Certifications |
Energy Star
AHRI |
| Warranty |
5-year Parts/7-year Compressor
|
| Restricted States |
GU;PR;VI |
SPECIFICATIONS AIR HANDLER DIY-12-HP-WMAH-230C25
| Product Dimensions |
31.57"W x 7.44"D x 11.69"H |
| Product Weight |
23.81 lbs |
| Cooling Capacity |
12000 BTU |
| Heating Capacity |
12000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
15 A
|
| Min Circuit Ampacity |
3 A |
| Mount Type |
Wall |
| Color |
White |
| Max Coverage Area |
Up to 500 sqft |
| Refrigerant Type |
R-410A |
| Inverter |
Yes |
| Liquid Line Size |
1/4 in |
| Suction Line Size |
1/2 in |
| Blower Motor RPM |
1050/850/650 |
| Modes |
Fan Only
Quiet Mode
Auto Cool |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Includes |
Remote
Batteries |
| Certifications |
Energy Star
AHRI |
| Warranty |
5-year Parts/7-year Compressor
|
| Restricted States |
GU;PR;VI |
SPECIFICATIONS LINESET DIY25-1412
|
COLOR
|
Copper
|
|
COLOR FAMILY
|
Bronze/Copper Metallic
|
|
LINESET FITTING TYPE
|
Quick-Connection
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
1/2
|
|
REGISTERED WARRANTY
|
N/A
|
|
HAS BATTERIES
|
No
|
|
CONTAINS ELECTRONICS
|
No
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
RESTRICTED STATES
|
GU;PR;VI
|
|
NET WEIGHT
|
19.84 lbs
|
|
GROSS WEIGHT
|
22.92 lbs
|
PRODUCT MANUALS:
CONDENSER MANUALS
9K AIR HANDLER MANUALS
12K AIR HANDLER MANUALS
LINESET MANUALS
