MRCOOL DIY 4th Generation Mini Split - 27K BTU 3 Zone Ductless Air Conditioner and Heat Pump with 25 ft. Install Kit - DIYM327HPW00C28
Introducing the 4th Generation MRCOOL DIY 27K BTU 3-Zone Ductless Heat Pump Condenser (DIY-MULTI3-27HP230) which is one of the most capable heat pumps on the market. As part of a MRCOOL DIY system, the MRCOOL DIY 9K BTU Ductless Wall Mounted Air Handler (DIY-09-HP-WMAH-230C) is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 375 sq. ft. This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers. For Multi-Zone systems, one line set per indoor unit is required to ensure the system will function properly.
PRODUCT INCLUDES:

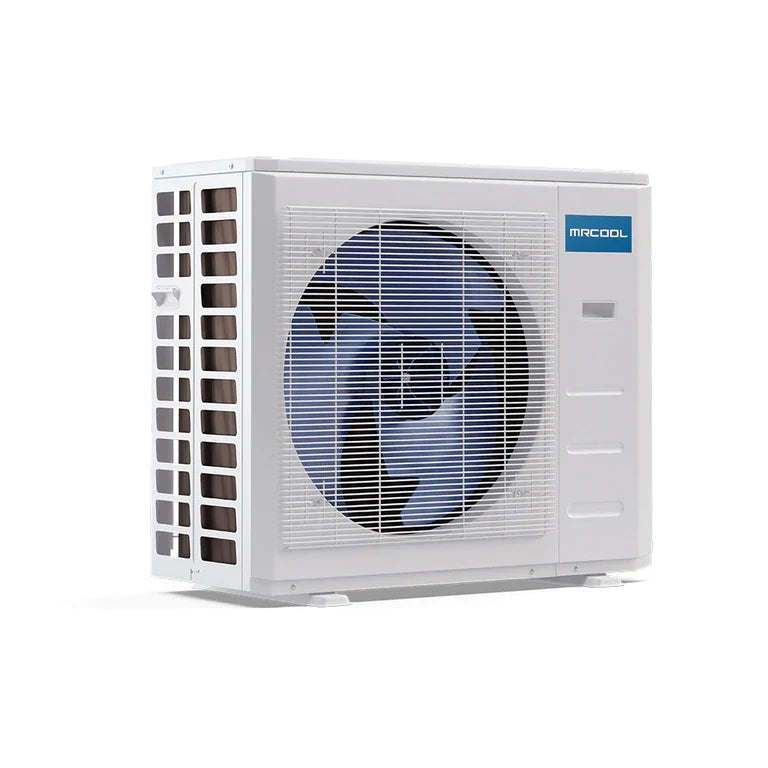

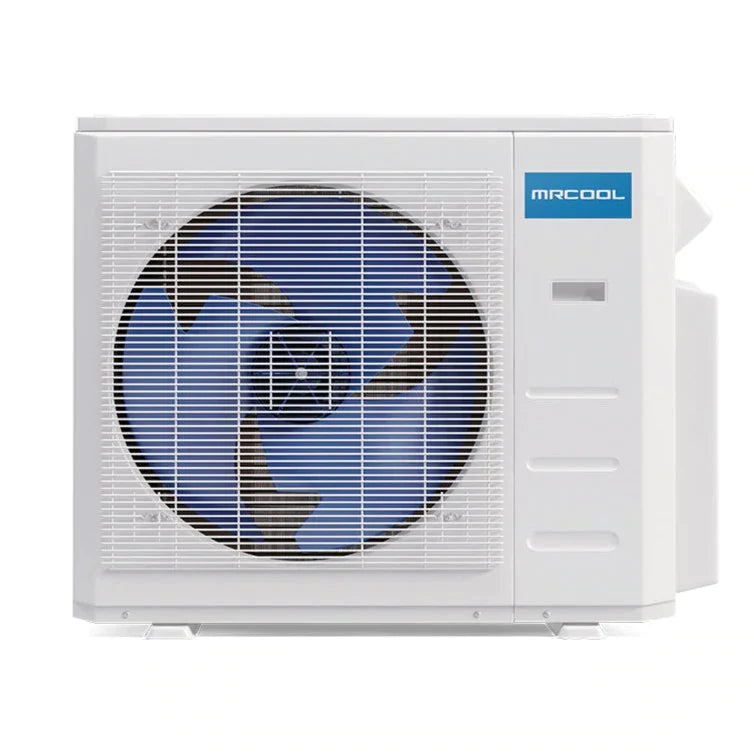

MRCOOL DIY Multi-Zone 3-Zone Condenser, 4th Gen Series - DIY-MULTI3-27HP230C

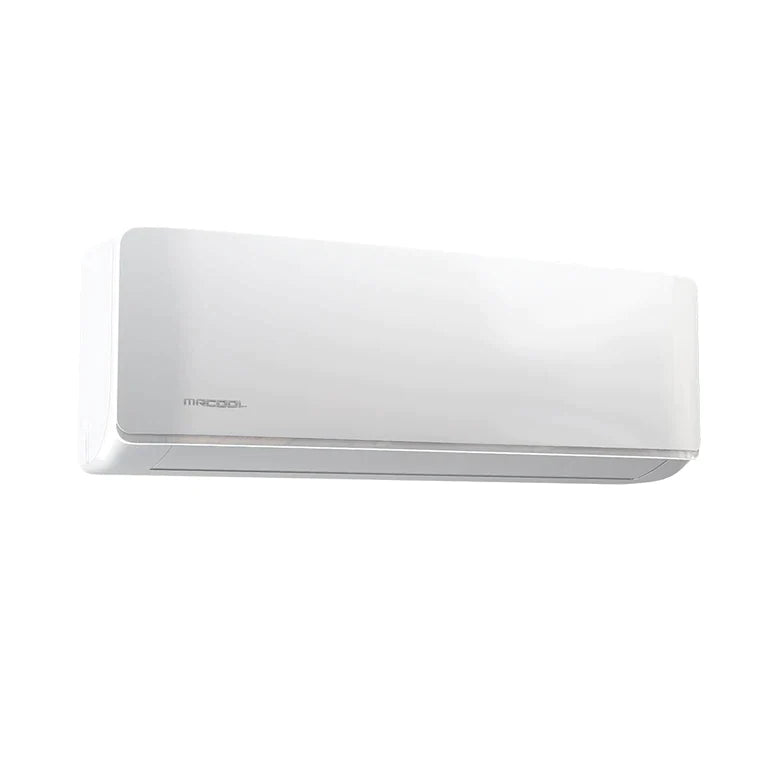

MRCOOL DIY 4th Generation 9K BTU Heat Pump Wall Mount Air Handler 230 Volt with 25ft DIYPro Cable and Enhanced WiFi - DIY-09-HP-WMAH-230C25 (x3)

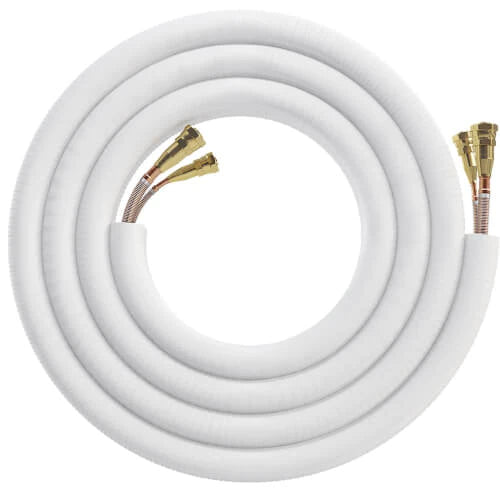

MRCOOL 25ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor - DIY25-1412 (x3)
FEATURES CONDENSER DIY-MULTI3-27HP230C
- Up to 22 SEER
- Gold Fin® condenser: corrosion resistant - live on the coast? Don't worry, our condenser is built to resist long term corrosion
- Energy Efficient DC Inverter
- R-410A environmentally friendly refrigerant
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
FEATURES AIR HANDLER DIY-09-HP-WMAH-230C25 (x3)
- Smart HVAC app: WIFI control - control your DIY anywhere with your Apple or Android smart device and an Internet connection
- Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
- Compatible with Amazon Alexa and Google Assistant
- Includes the new DIY Pro™ Cable, an added safety feature to protect the wiring from the outside elements
FEATURES LINESET DIY25-1412 (x3)
- This 25 ft. copper line set connects the MRCOOL Condenser to the MR COOL Air Handlers.
SPECIFICATIONS CONDENSER DIY-MULTI3-27HP230C
| Product Dimensions |
37.24"W x 16.14"D x 31.89"H |
| Product Weight |
139.99 lbs |
| SEER |
22 |
| EER |
12 |
| HSPF |
hspf4/hspf5 : 10.3/8.2 |
| CFM |
2129.41 |
| Cooling Capacity |
27,000 BTU |
| Heating Capacity |
27,000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
40 A
|
| Min Circuit Ampacity |
26 A |
| Color |
White |
| Zone Capacity |
Up to 3 |
| Refrigerant Type |
R-410A
|
| Refrigerant Volume |
91.71 oz |
| Decibel Rating |
61 dBA |
| Inverter |
Yes |
| Min Ambient Cool |
5F ~ 122F |
| Min Ambient Heat |
-13F ~ 75.2F |
| Max Lineset Length |
147.64ft TOTAL |
| Liquid Line Size |
1/4in |
| Suction Line Size |
3/8in |
| Compressor Motor Type |
Twin - Rotary |
| Condenser Fan Motor RPM |
1050/900/850 |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Warranty |
5-year Parts/7-year Compressor |
SPECIFICATIONS DIY-09-HP-WMAH-230C25 (x3)
| Product Dimensions |
31.57"W x 7.44"D x 11.69"H |
| Product Weight |
23.81 lbs |
| Cooling Capacity |
9000 BTU |
| Heating Capacity |
9000 BTU |
| Voltage |
Requires a minimum of 208V-230V/60HZ/3-15A (please check your home meets this electrical requirement prior to purchase)
|
| Phase |
1 |
| Cycle |
60 Hz |
| Max Fuse Breaker |
15 A
|
| Min Circuit Ampacity |
3 A |
| Mount Type |
Wall |
| Color |
White |
| Max Coverage Area |
Up to 375 sqft |
| Refrigerant Type |
R-410A |
| Inverter |
Yes |
| Liquid Line Size |
1/4 in |
| Suction Line Size |
1/2 in |
| Blower Motor RPM |
1050/850/650 |
| Modes |
Fan Only
Quiet Mode
Auto Cool |
| Wifi Compatibility |
Yes |
| App Compatibility |
Yes |
| Compatible with |
IOS
Android |
| Includes |
Remote
Batteries
|
| Certifications |
Energy Star
AHRI |
| Warranty |
5-year Parts/7-year Compressor
|
| Restricted States |
GU;PR;VI |
SPECIFICATIONS LINESET DIY25-1412 (x3)
|
COLOR
|
Copper
|
|
COLOR FAMILY
|
Bronze/Copper Metallic
|
|
LINESET FITTING TYPE
|
Quick-Connection
|
|
LIQUID LINE SIZE
|
1/4
|
|
SUCTION LINE SIZE
|
1/2
|
|
REGISTERED WARRANTY
|
N/A
|
|
HAS BATTERIES
|
No
|
|
CONTAINS ELECTRONICS
|
No
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
RESTRICTED STATES
|
GU;PR;VI
|
|
NET WEIGHT
|
19.84 lbs
|
|
GROSS WEIGHT
|
22.92 lbs
|
