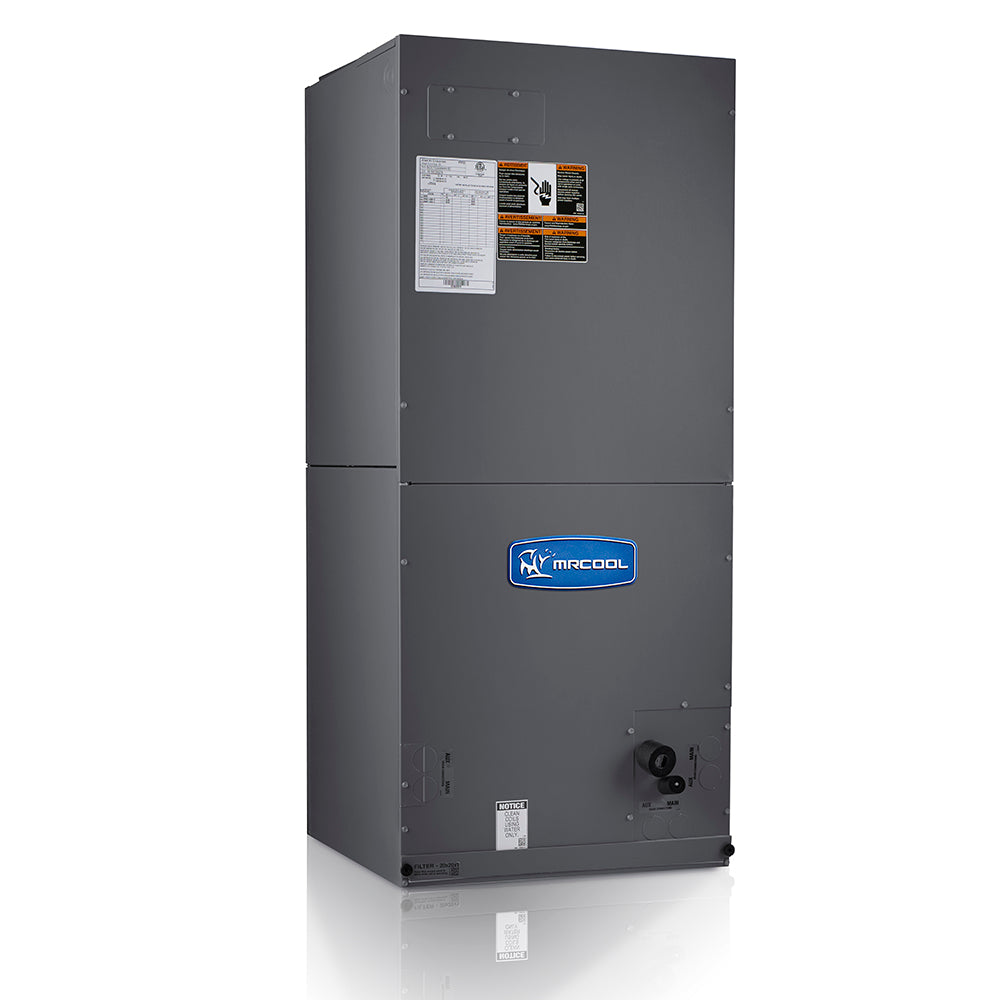

MRCOOL 4 Ton 16 SEER Split System Air Handler - MAHM048ETA
The MRCOOL Multi-Position Air Handler is designed to deliver dependable comfort, and is built for reliability. The electronically commutated motor (ECM) delivers consistent airflow throughout the seasons, allowing you to remain relaxed at all times.
When choosing a MRCOOL Multi-Position Air Handler, you can always know that you are being energy and time efficient.
FEATURES:
- Smaller profile for closet applications
- Optional auxiliary heat kits available
- Baked polyester paint finished over galvanized steel for maximum durability
- Antimicrobial treated drain pan to resist mold and mildew growth
- Factory tested for leakproof construction
- Foil faced insulation for enhanced indoor air quality
- Cool Guard total corrosion protection technology designed coil
- Built-in indoor time delay for increased efficiency and comfort
- One piece design
- High-strength/heat resistant/corrosion resistance SMC drain pans
- Multi-position = Upflow/ Horizontal Left/ Horizontal Right/ Counter Flow (with kit)
- AHRI certified and ETL listed
SPECIFICATIONS & DIMENSIONS:
|
SEER
|
Up to 16
|
|
CFM
|
1600
|
|
TONNAGE
|
4
|
|
COOLING CAPACITY
|
48000
|
|
VOLTAGE
|
208/230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER
|
15
|
|
MIN CIRCUIT AMPACITY
|
9.5
|
|
COLOR
|
Gray
|
|
COLOR FAMILY
|
Gray
|
|
MAX COVERAGE AREA
|
2000
|
|
REFRIGERANT TYPE
|
R-410A
|
|
NUMBER OF SPEEDS
|
5
|
|
INVERTER
|
No
|
|
LINESET INCLUDED
|
No
|
|
LINE SET LENGTH
|
15ft, 25ft, 35ft, 50ft
|
|
MAX LINESET LENGTH
|
50ft
|
|
LINESET FITTING TYPE
|
Sweat
|
|
LIQUID LINE SIZE
|
3/8
|
|
SUCTION LINE SIZE
|
7/8
|
|
BLOWER MOTOR TYPE
|
ECM
|
|
BLOWER MOTOR HP
|
1
|
|
BLOWER MOTOR SPEEDS
|
5 Speed
|
|
BLOWER MOTOR RPM
|
1110-1760
|
|
FILTER TYPE
|
replacement
|
|
FILTER SIZE
|
18x20
|
|
AUXILIARY HEATER INCLUDED
|
no
|
|
AUXILIARY HEATER AVAILABLE
|
yes
|
|
AUXILIARY HEATER SIZES
|
10kw, 15kw, 20kw
|
|
UL RECONIZED
|
No
|
|
UL LISTED
|
No
|
|
ETL LISTED
|
yes
|
|
ETL CERTIFIED
|
no
|
|
ISO CERTIFIED
|
No
|
|
LEED CERTIFIED
|
No
|
|
ENERGY STAR COMPLIANT
|
No
|
|
ENERGY STAR CERTIFIED
|
No
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
Registered 10 Year Parts Warranty
|
|
BASE WARRANTY
|
5 Year Parts Warranty
|
|
REGISTERED PARTS WARRANTY
|
Registered 10 Year Parts Warranty
|
|
BASE PARTS WARRANTY
|
5 Year Parts Warranty
|
|
HAS BATTERIES
|
No
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
RESTRICTED STATES
|
No
|
|
NET DEPTH
|
19.5
|
|
NET HEIGHT
|
55
|
|
NET WIDTH
|
21.5
|
|
NET WEIGHT
|
186
|
|
GROSS DEPTH
|
27
|
|
GROSS HEIGHT
|
58.5
|
|
GROSS WIDTH
|
25.5
|
