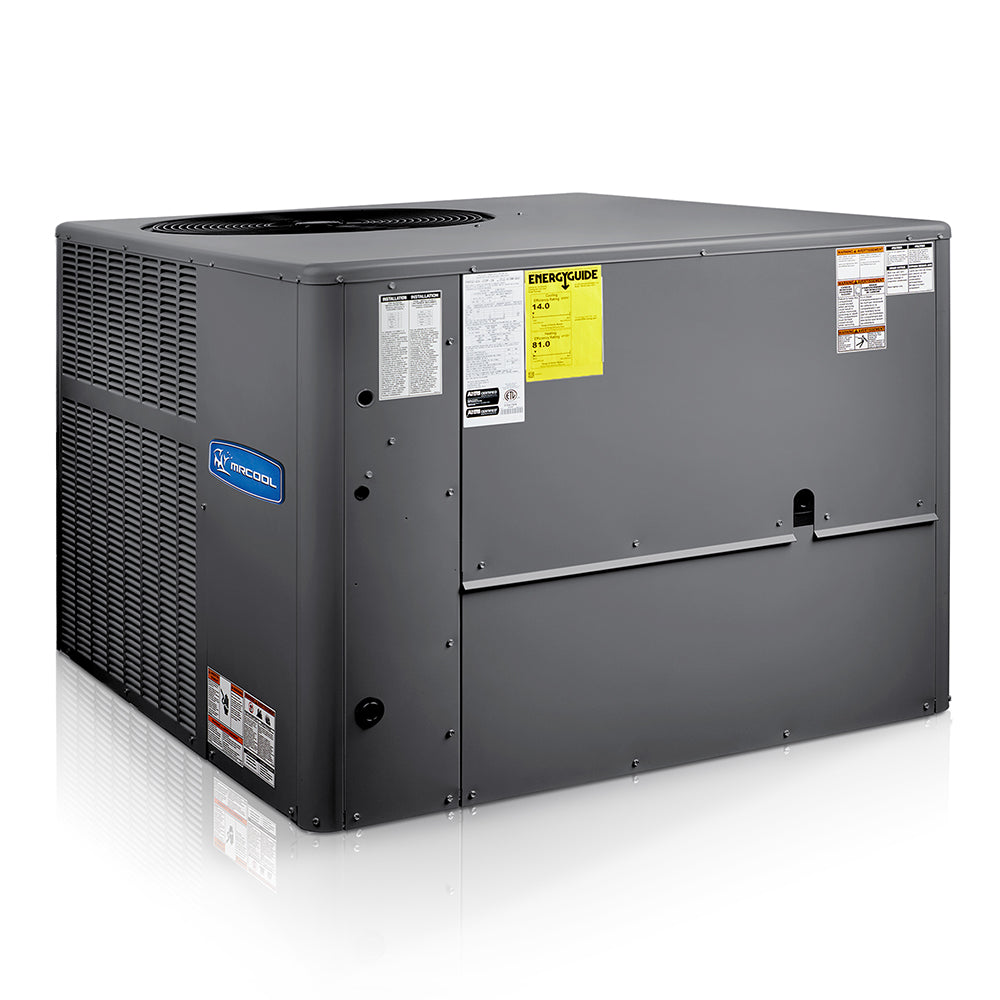

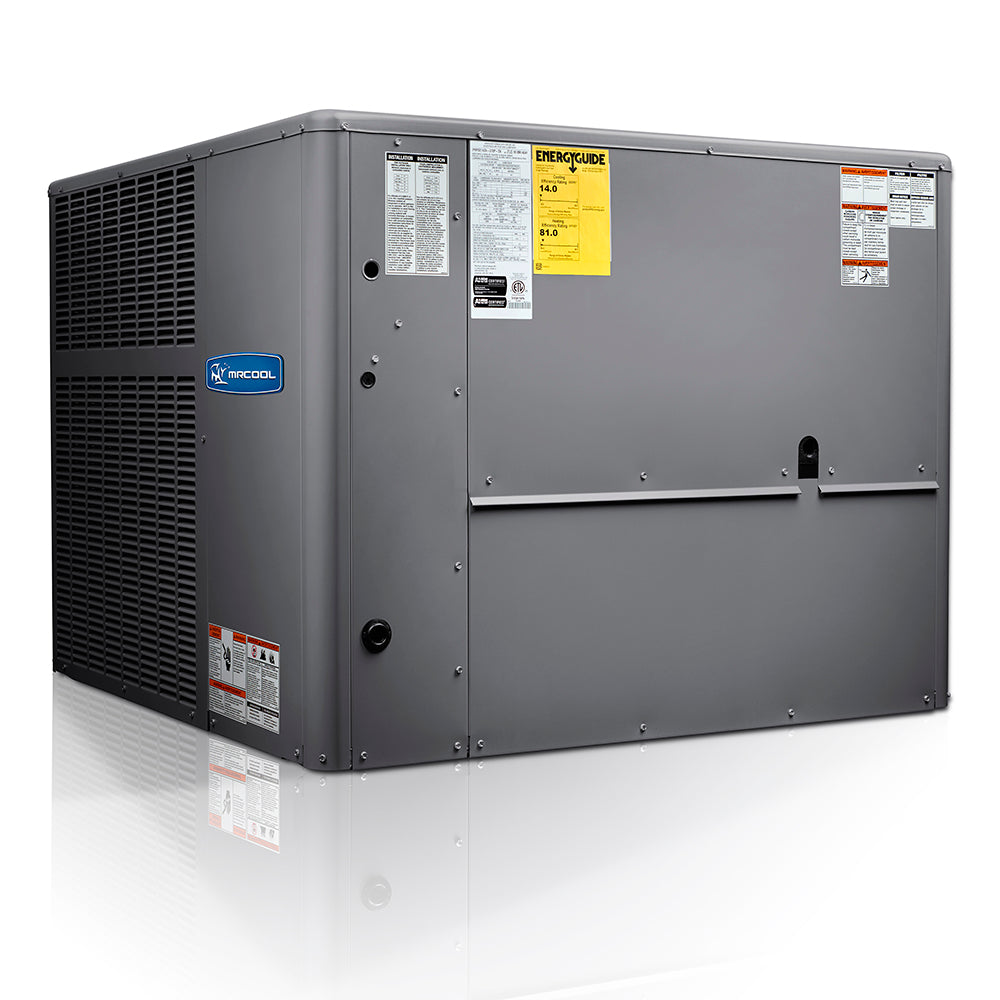

MRCOOL 14 SEER 3.5 Ton Louvered Packaged Air Conditioner - MPC421M414A
This is a brand new 3.5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning.
This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).
FEATURES:
- Approved for installation in manufactured housing and mobile homes
- Multi-Positional Application
- Environmentally friendly R410A refrigerant
- Insulated to minimize heat loss and reduce sound
- Efficient multispeed motor for wide airflow range
- Low ambient kits available
- Utility connections on right side
- One piece base design for strength and stability
- Rounded corners for safety and an attractive, clean appearance
- Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
- All units ETL and ETLC approved and AHRI Certified
- One piece no leak top design
SPECIFICATIONS & DIMENSIONS:
|
SEER
|
14
|
|
EER
|
11
|
|
CFM
|
1400
|
|
TONNAGE
|
3 1/2
|
|
COOLING CAPACITY
|
40000
|
|
VOLTAGE
|
208-230
|
|
PHASE
|
1
|
|
CYCLE
|
60
|
|
MAX FUSE BREAKER
|
40
|
|
MIN CIRCUIT AMPACITY
|
27.5
|
|
COLOR
|
Gray
|
|
COLOR FAMILY
|
Gray
|
|
RATED LOAD
|
15.9
|
|
MAX COVERAGE AREA
|
1750
|
|
REFRIGERANT TYPE
|
R-410A
|
|
REFRIGERANT VOLUME
|
108
|
|
DECIBEL RATING
|
78
|
|
MIN AMBIENT HEAT
|
0
|
|
COMPRESSOR MOTOR TYPE
|
Single Stage
|
|
CONDENSER FAN MOTOR TYPE
|
ECM
|
|
CONDENSER FAN MOTOR HP
|
1/4
|
|
BLOWER MOTOR TYPE
|
ECM
|
|
BLOWER MOTOR HP
|
3/4
|
|
BLOWER MOTOR SPEEDS
|
Multi-speed
|
|
BLOWER MOTOR RPM
|
475-1540
|
|
FILTER TYPE
|
Replacable
|
|
FILTER SIZE
|
20x20
|
|
METERING DEVICE
|
TXV
|
|
AUXILIARY HEATER INCLUDED
|
No
|
|
AUXILIARY HEATER AVAILABLE
|
Yes
|
|
AUXILIARY HEATER SIZES
|
5kw, 7.5kw, 10kw, 15kw
|
|
UL RECONIZED
|
No
|
|
UL LISTED
|
No
|
|
ETL LISTED
|
Yes
|
|
ETL CERTIFIED
|
No
|
|
LEED CERTIFIED
|
No
|
|
ASHRAE COMPLIANT
|
No
|
|
ENERGY STAR COMPLIANT
|
No
|
|
ENERGY STAR CERTIFIED
|
No
|
|
AHRI CERTIFIED
|
Yes
|
|
REGISTERED WARRANTY
|
10-Year Parts Limited Warranty
|
|
BASE WARRANTY
|
5 year base limited parts warranty
|
|
HAS BATTERIES
|
No
|
|
CONTAINS ELECTRONICS
|
Yes
|
|
CONTAINS CHEMICALS
|
Yes
|
|
CONTAINS AEROSOL
|
Yes
|
|
CONTAINS COMPRESSED GAS
|
Yes
|
|
PROPOSITION 65 WARNING
|
Yes
|
|
RESTRICTED STATES
|
No
|
|
NET DEPTH
|
55.27
|
|
NET HEIGHT
|
40.88
|
|
NET WIDTH
|
46.8
|
|
NET WEIGHT
|
405
|
|
GROSS DEPTH
|
48
|
|
GROSS HEIGHT
|
46
|
|
GROSS WIDTH
|
57.5
|
|
GROSS WEIGHT
|
433
|
|
FREIGHT CLASS
|
125
|
