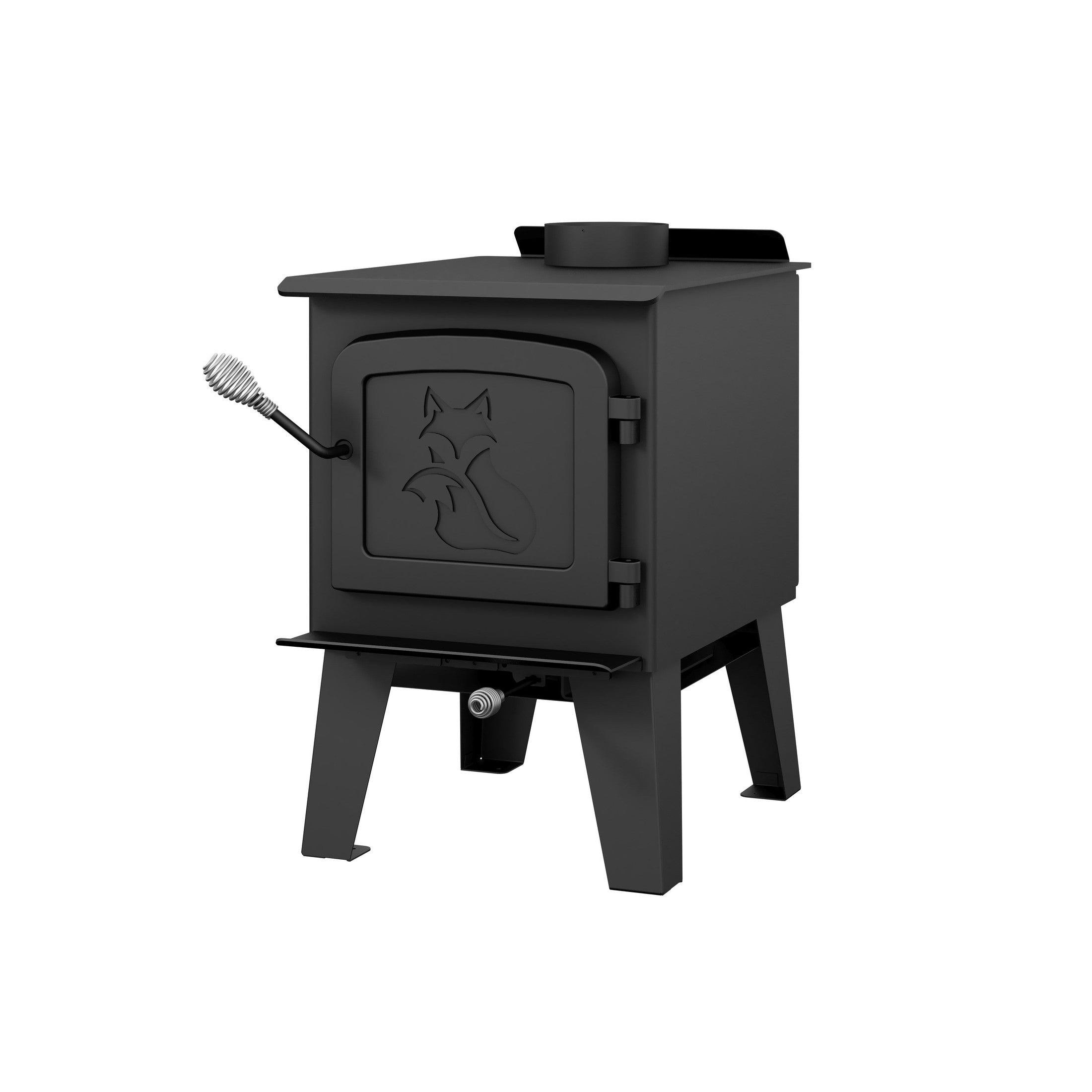

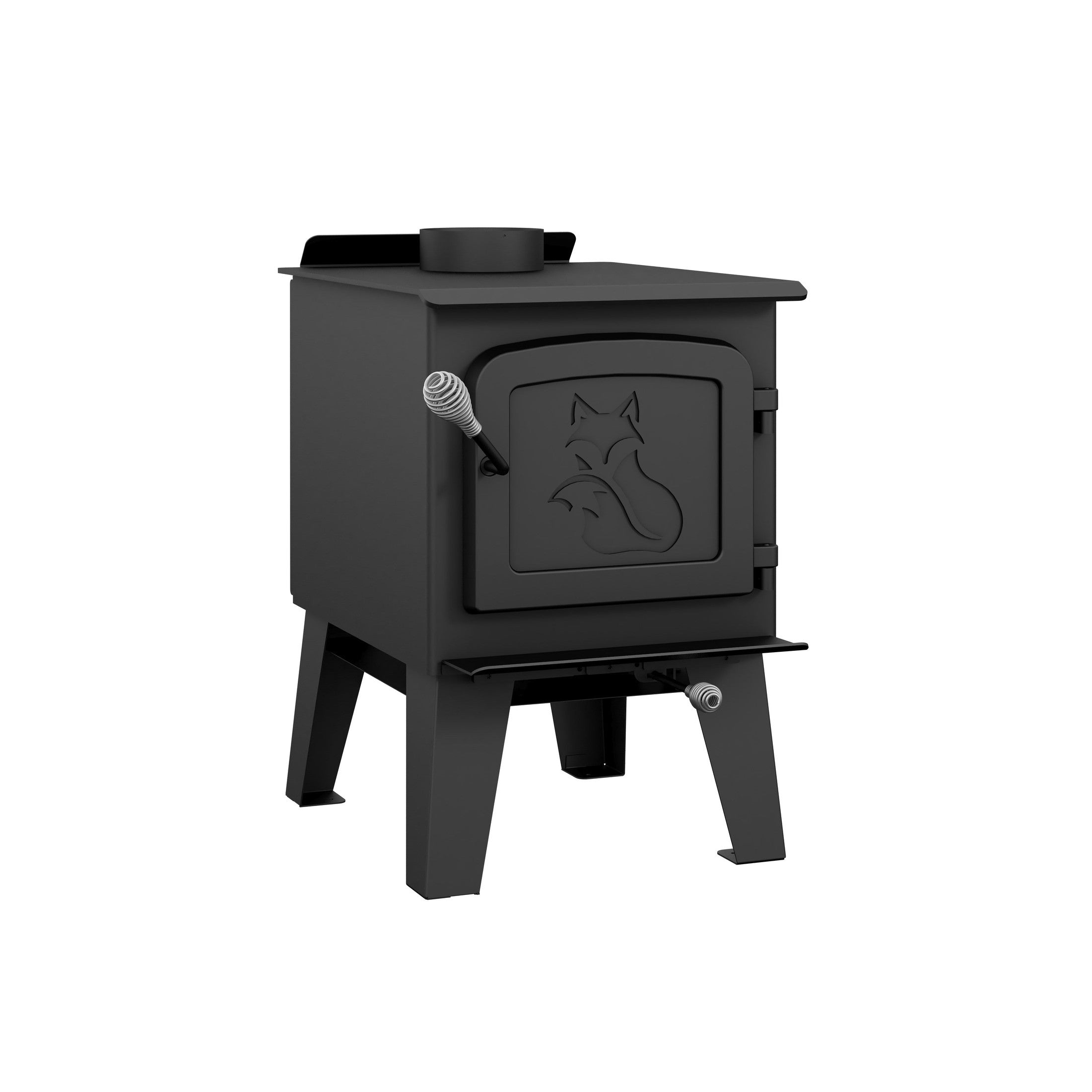

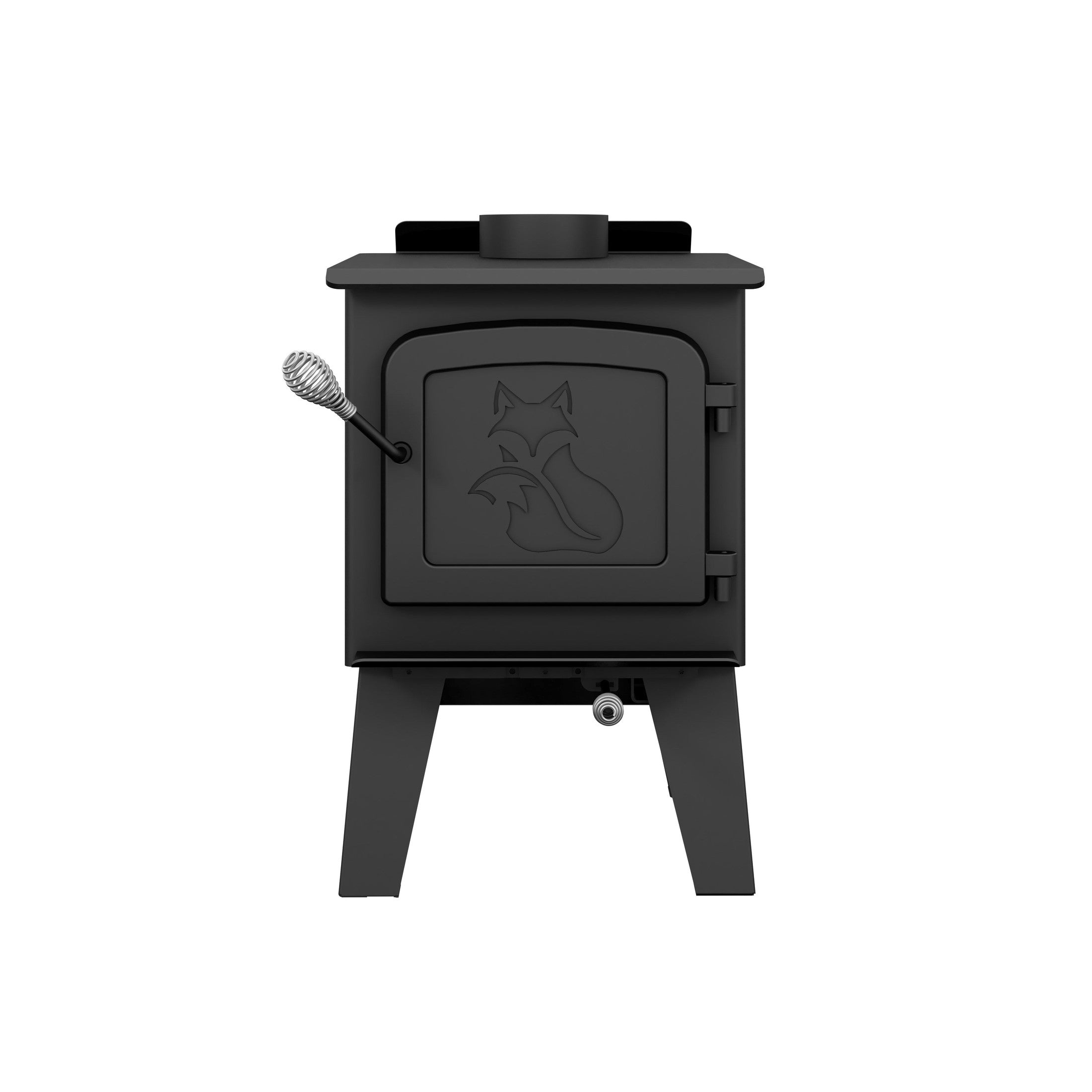

Among the most compact on the market, the Fox wood stove can heat up to 1,200 ft². With a maximum heat output of 45,000 BTU/h. Non-catalytic and EPA certified at an emission rate of 1.8 g/h, this model can efficiently heat small spaces. Its cast iron door, superimposed with steel sheets, is decorated with a fox. The bottom of its combustion chamber is deeper than other models in its category and allows a greater accumulation of ashes, and thus to be able to empty them much less frequently. Packaged in a rigid cardboard box for ease of transport, this appliance requires simple assembly.
Included: steel legs, air deflector, cast iron door with adjustable hinges, ash lip, air damper
FEATURES:
Heating area
250 - 1,200Ft2
Size
18 1/2"W X28 7/8"D X28 3/4"H
Maximum log length
17"
Average particulate emission rate
1.8 g/h
Up to 5 hours burn time
Up to 17" logs
1.55 ft³ firebox
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
SPECIFICATIONS:
General Features:
Combustion technology
Non-catalytic
High-efficiency certified appliance
Yes, EPA 2020 approved
Maximum log length
17"
Log positioning
Loading over depth
Chimney diameter
6"
Flue outlet diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height (feet)
12'
Baffle type
High quality vermiculite
Approved for an alcove installation
Yes
Approved for a mobile home installation
Yes, with fresh air intake
Shipping Weight
230 lb
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface – dimensions (Width X Height)
10 1/4" X 8 1/2"
Glass air-wash system
Yes
Overall dimension (Height)
28 3/4"
Overall dimension (Width)
18 1/2"
Overall dimension (Depth)
28 7/8"
Door opening – dimension (Height)
7 5/8"
Door opening - dimension (Width)
12"
Firebox – dimension (Height)
11 3/4"
Firebox – dimension (Width)
14 1/4"
Firebox – dimension (Depth)
19 1/8"
Firebox lined with refractory bricks for better heat distribution
Yes
Stainless-steel secondary-air system improving gas combustion
Yes
Steel thickness – body
3/16"
Steel thickness – top
1/4"
USA standard (emissions)
EPA
Canadian Standard (emissions)
CSA B415.1-10
USA standard (safety)
UL 1482, UL 737
Canadian standard (safety)
ULC S627
Tested and listed as per applicable standards
By an accredited laboratory (CAN/USA)
Warranty
Limited lifetime
Appliance Performance:
Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
250 - 1,200 ft²
Overall firebox volume
1.8 ft³
EPA loading volume
1.55 ft³
Maximum burn time(9)
5 h
Maximum heat output-dry cordwood(4)
45,000 BTU/h (13.19 kW)
Minimum overall heat output rate(4)(5)
12,124 BTU/h (3.55 kW)
Maximum overall heat output rate(4)(5)
26,700 BTU/h (7.83 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
74 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
79 %
Optimum efficiency(1)(2)
80 %
Optimum heat transfer efficiency(8)
79 %
Average particulate emission rate(3)
1.8 g/h
Average CO(10)
74 g/h
Size
Small
Maximum log length
17"
Shipping weight
235 lb (107 kg)
Overall dimension (Width)
18 1/2"
Overall dimension (Height)
28 3/4"
Overall dimension (Depth)
28 7/8"
Warranty
Limited lifetime
Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Optional
(1)This appliance is officially tested and certified by an independent agency.
(2)Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
()Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(3)The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(4)As measured per CSA B415.1-10 stack loss method.
(5)Higher Heating Value of the fuel.
(6)Lower Heating Value of the fuel.
(7)Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(8)Optimum overall efficiency at a specific burn rate (LHV).
(9)The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(10)Carbon monoxyde.
Clearances:
United-States
Single wall pipe
Double wall pipe
Clearance – back wall
12"
6"
Clearance - corner
11"
7"
Clearance – side wall
18"
18"
Clearance – top (measured from the platform on which the appliance is installed)**
