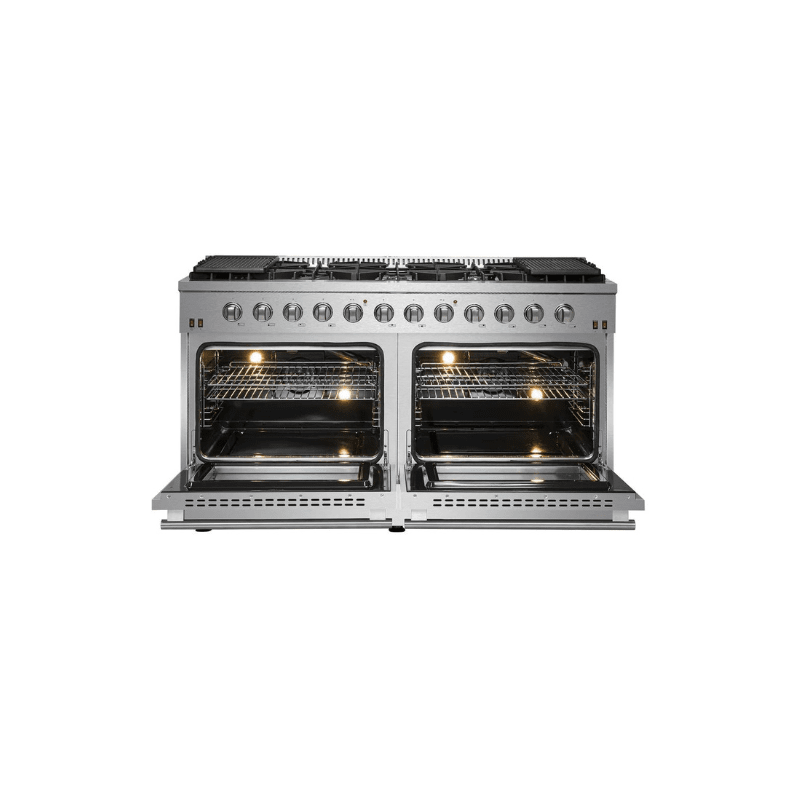

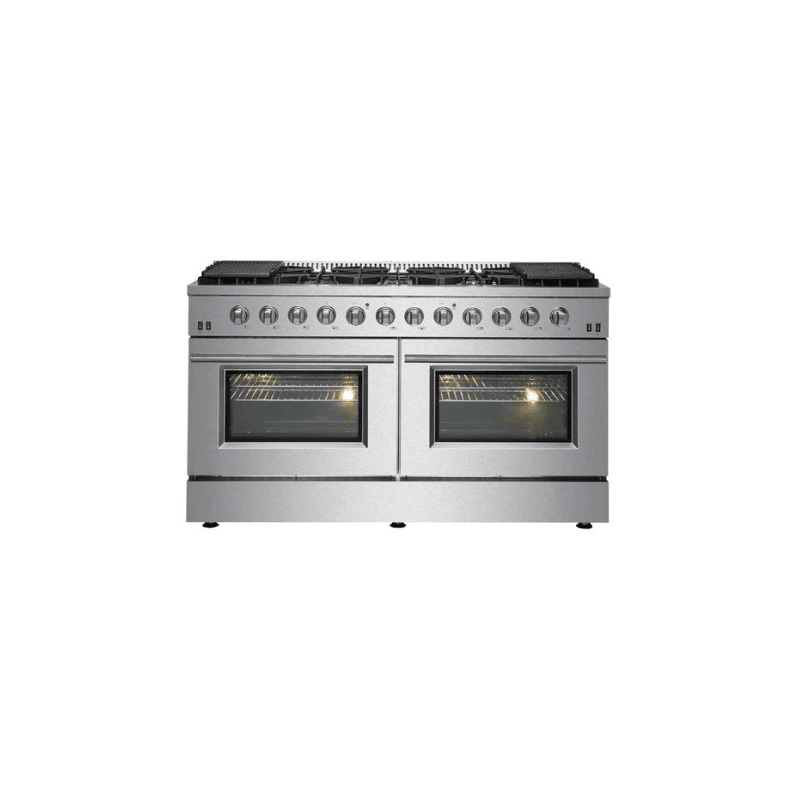

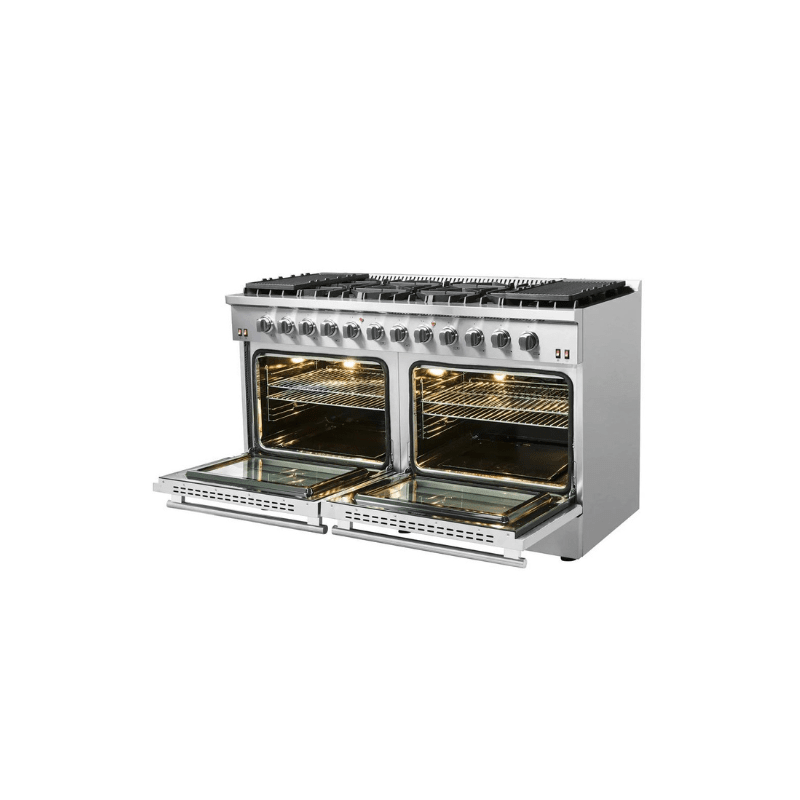

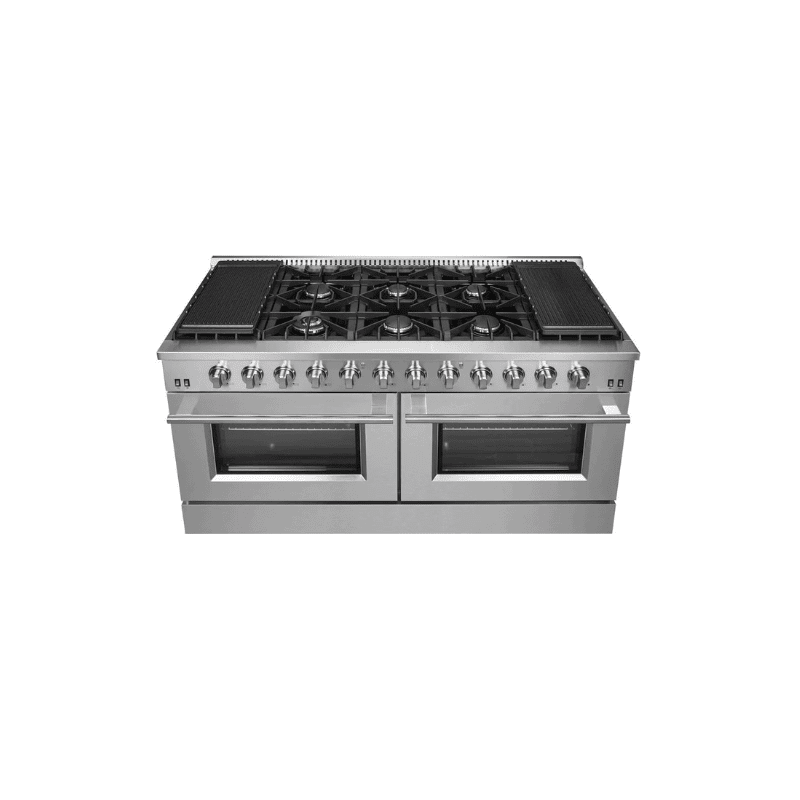

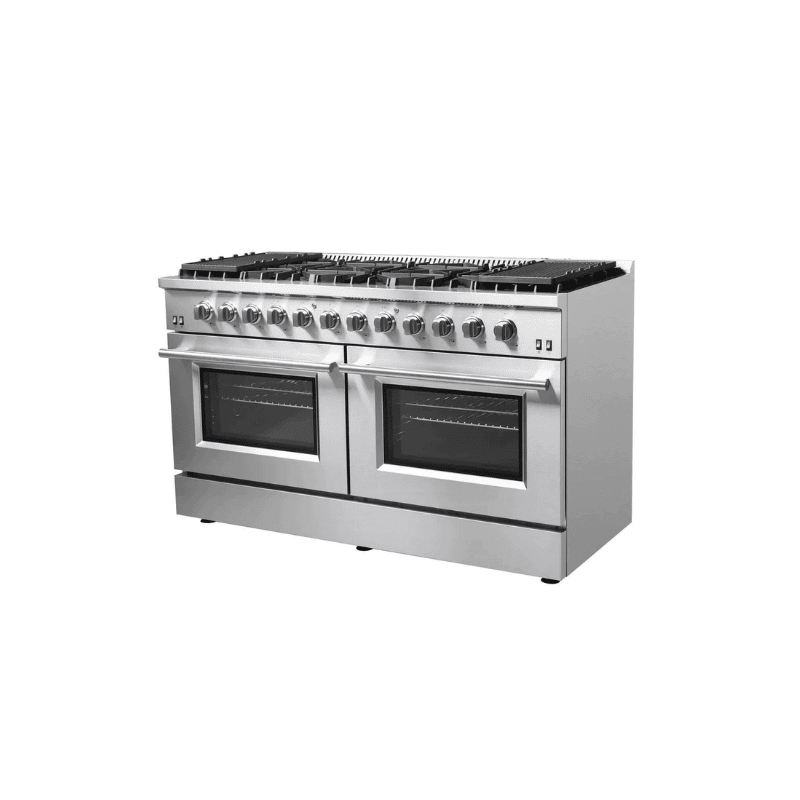

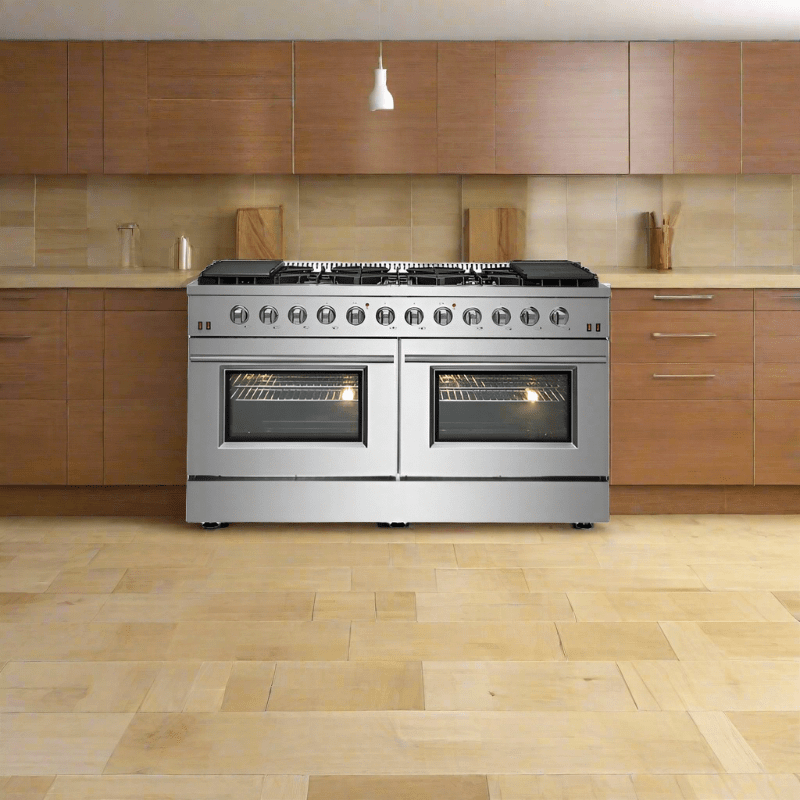

FORNO Vittorio 60" Freestanding Gas Range - FFSGS6244-60
This 60 Inch Professional Freestanding Gas Range by Forno offers a 10 Sealed Burners Cooktop and an 8.64 cu. ft. convection oven. The range also features cast iron grates, a convection fan, and zinc control knobs.
FEATURES:
- Heavy-duty Food Grade 430 Stainless-Steel
- Zinc Control Knobs
COOKTOP FEATURES:
- 10 Sealed Burners
- 142,000 BTU Total Stove-Top Output
- Deep Recessed Enamel

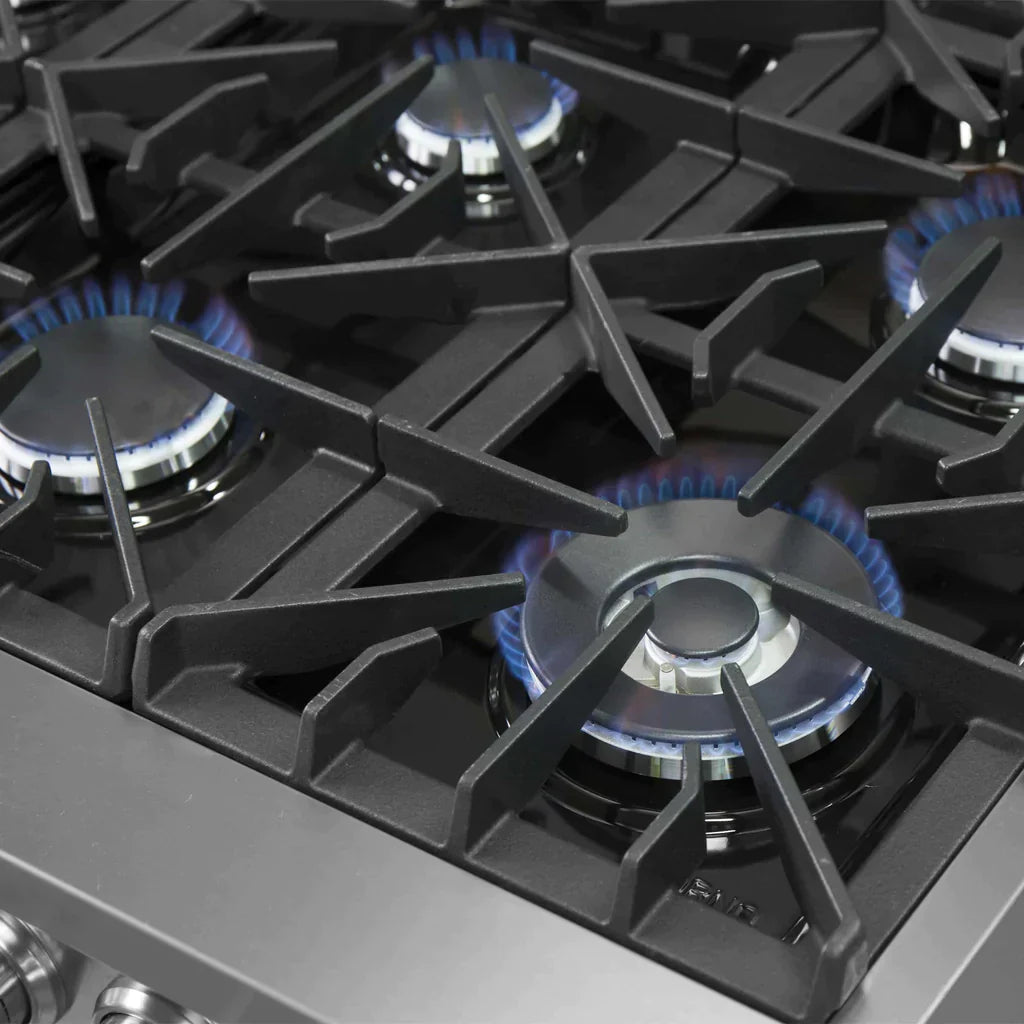

- Continuous Cast Iron Grates

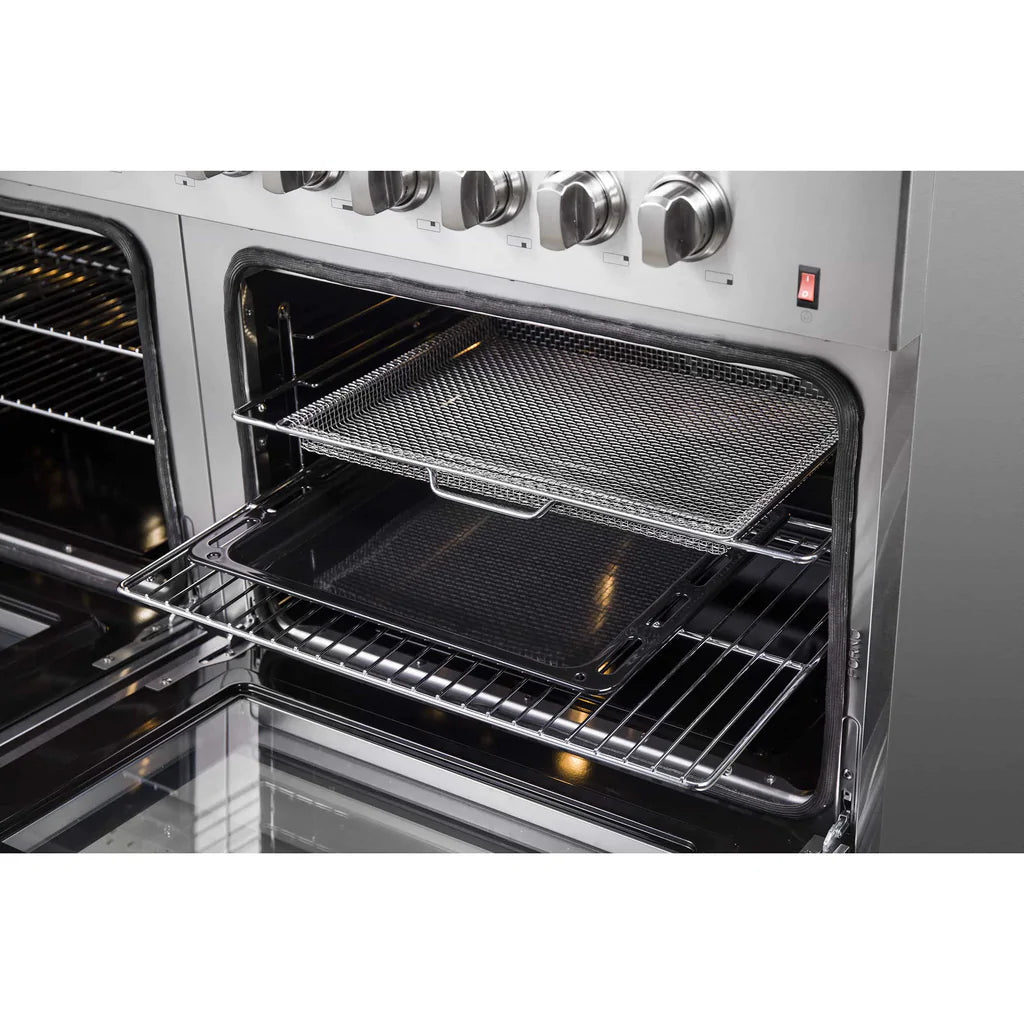

OVEN FEATURES:
- 8.64 cubic feet Overall Electric Double Oven Capacity
- 4 Electro-Plated Steel Oven Racks
- Black Enamel Oven Interior
- 3-Layer Oven Door Glass
- Halogen Oven Lights
- U Tube Auto-Ignition
- Convection Fan Hot Air Circulation
INCLUDES:
- Griddle
- LP Conversion Kit
- Power Cord
SPECIFICATIONS FOR GAS COOKTOP-GAS OVEN:
|
Weight & Dimensions
|
|
| Overall Weight |
592 lbs |
| Overall Dimensions |
60”W x 37.4”H x 28”D |
| Cutout Dimensions |
60.25”W x 28”D
|
| Oven Door Open 90º |
28” |
| Right Oven Interior Dimensions |
24.92”W x 16″H x 18.7”D |
| Left Oven Interior Dimensions |
24.92”W x 16″H x 18.7”D |
|
Electrical
|
|
| Volts/Amperage |
120V / 15A
|
| Power Cord Length |
5′ |
| Receptacle Type |
3-prong grounding-type |
|
Certifications
|
|
|
ETL Listed
|
Yes |
|
Title 20 – California Regulation
|
Yes |
|
Cooktop
|
|
| Overall Burners BTU |
142,000 |
| Front Right Burner BTU |
20,000
|
| Front Right Center Burner BTU |
15,000 |
| Front Center Burner BTU |
15,000 |
| Front Left Center Burner BTU |
15,000 |
| Front Left Burner BTU |
20,000
|
| Rear Right Burner BTU |
9,000
|
| Rear Right Center Burner BTU |
15,000 |
| Front Center Burner BTU |
9,000 |
| Rear Left Center Burner BTU |
15,000 |
| Rear Left Burner BTU |
9,000
|
|
Oven
|
|
| Overall Oven Capacity |
8.64
|
| Overall Broil Top BTU |
20,000
|
| Overall Bottom BTU |
44,000 |
| Right Oven Capacity |
4.32 |
| Right Broil Top BTU |
10,000 |
| Right Bottom BTU |
22,000 |
| Left Oven Capacity |
2.26 |
| Left Broil Top BTU |
10,000 |
| Left Bottom BTU |
22,000 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Gas Heat Configuration |
Sealed Burners |
| Number of Burners |
10 |
| Cooktop Surface |
Deep Recessed Enamel |
| Number of Ovens |
2
|
| Number of Racks |
4
|
| Broiler |
Gas |
| Bake Element |
Gas |
| Cleaning Type |
Normal
|
| Interior Light |
2
|
| Control Type |
Knob |
| Control Location |
Front |
| Sealed Burners |
Yes |
| LP Gas Convertible |
Yes |
| Convection Fan |
Yes |
| Convection Oven |
Yes |
| Continuous Cast Iron Grate |
Yes |
| Halogen Oven Lights |
Yes |
| Pro-Style Handle |
Yes |

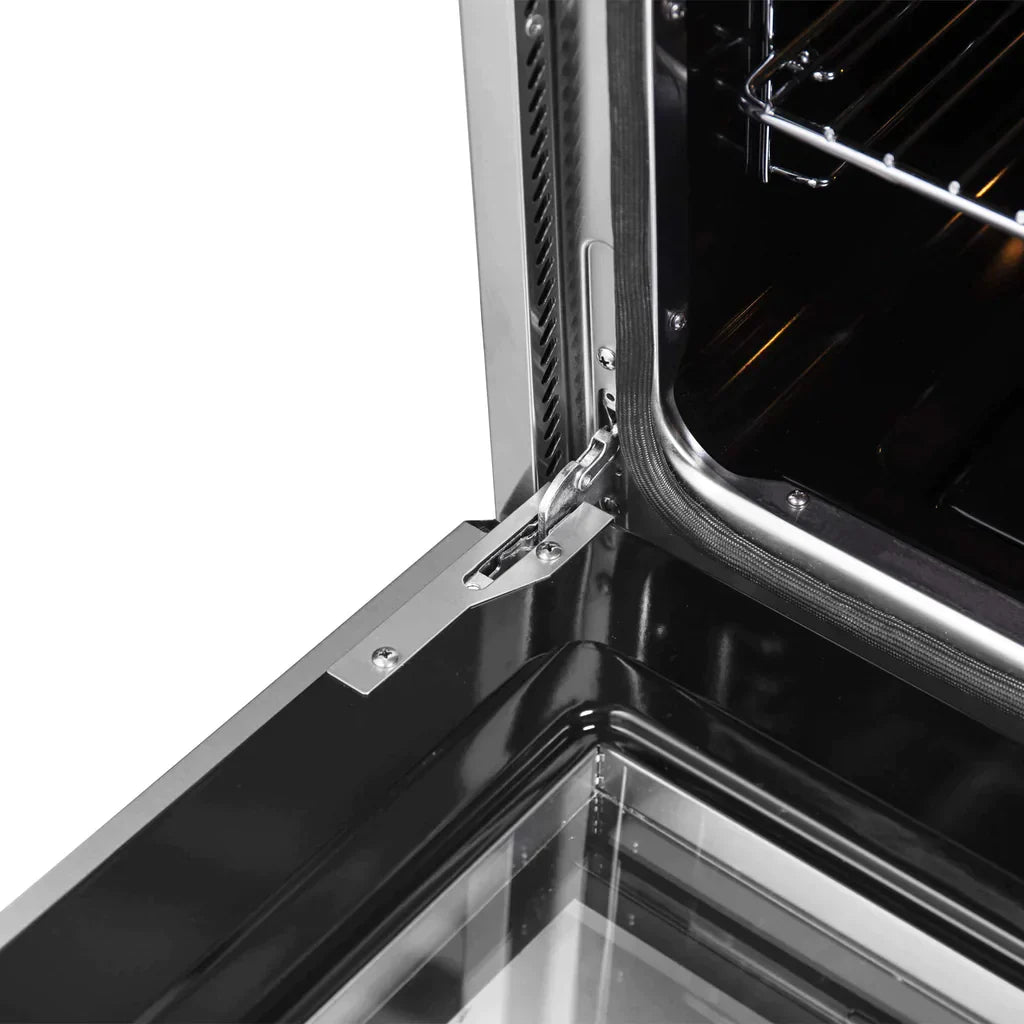

| Soft Door Close |
Yes |
| Illuminated Zinc Knobs |
No
|
| Blue Enamel Oven Interior |
No |
| Adjustable Legs |
Yes |
| Stainless Steel Square Leg Covers |
No
|
| Smudge Resistant |
Yes |
| Food Grade 430 Stainless Steel |
Yes |
| Back Splash Guard Included |
Yes |
| Griddle Include |
No |
| LP Conversion Kit Included |
Yes |
| Thermostat |
Yes
|
| Regulator |
Yes |
| Safety valves |
Yes
|
| Temperature Gauge |
No |
| Timer |
No |
| Clock |
No |
| Primary Material |
304 Stainless Steel |
