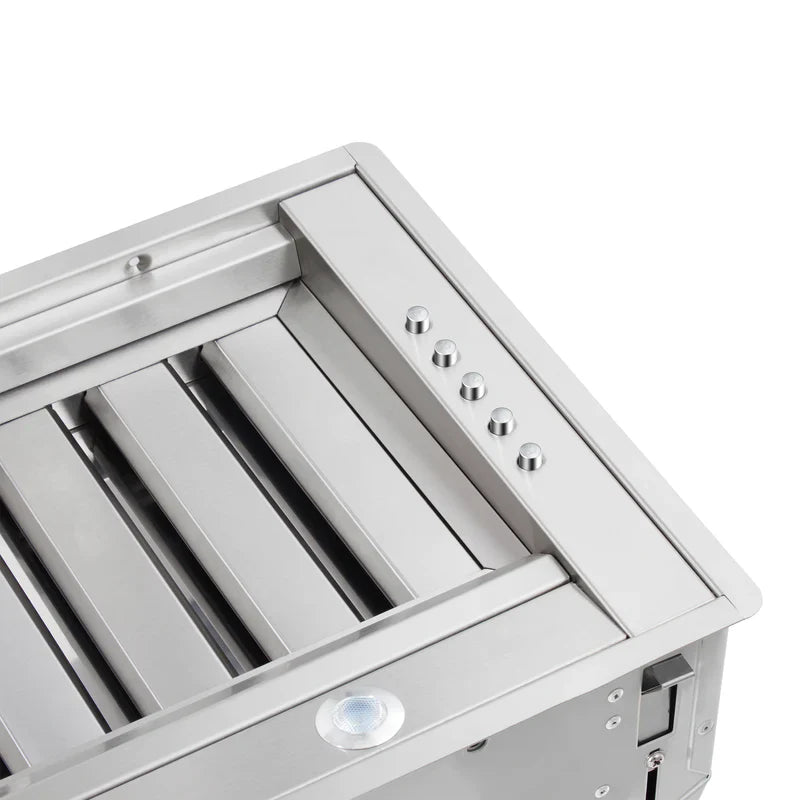

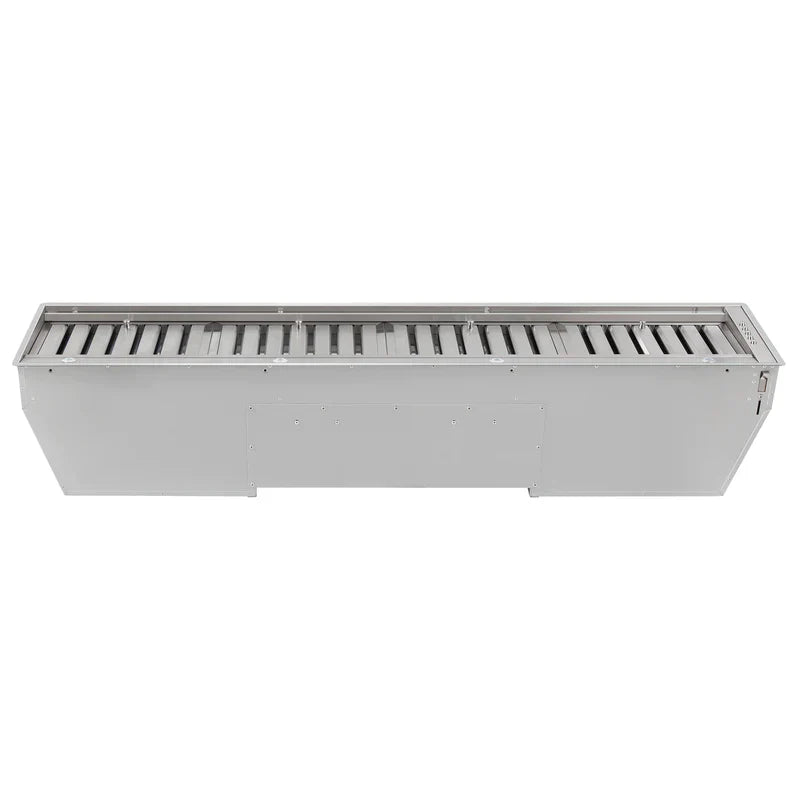

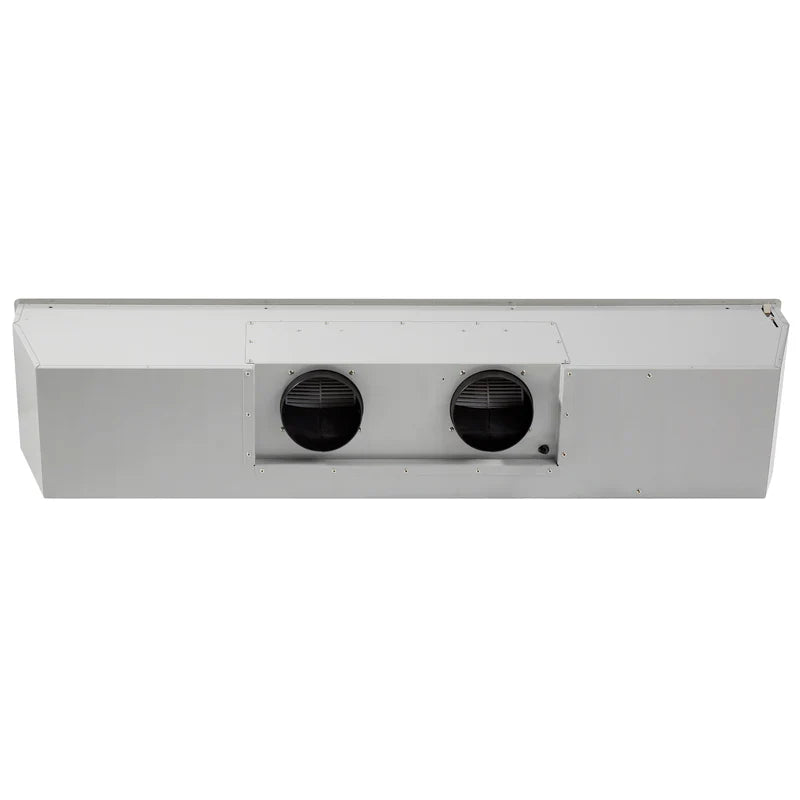

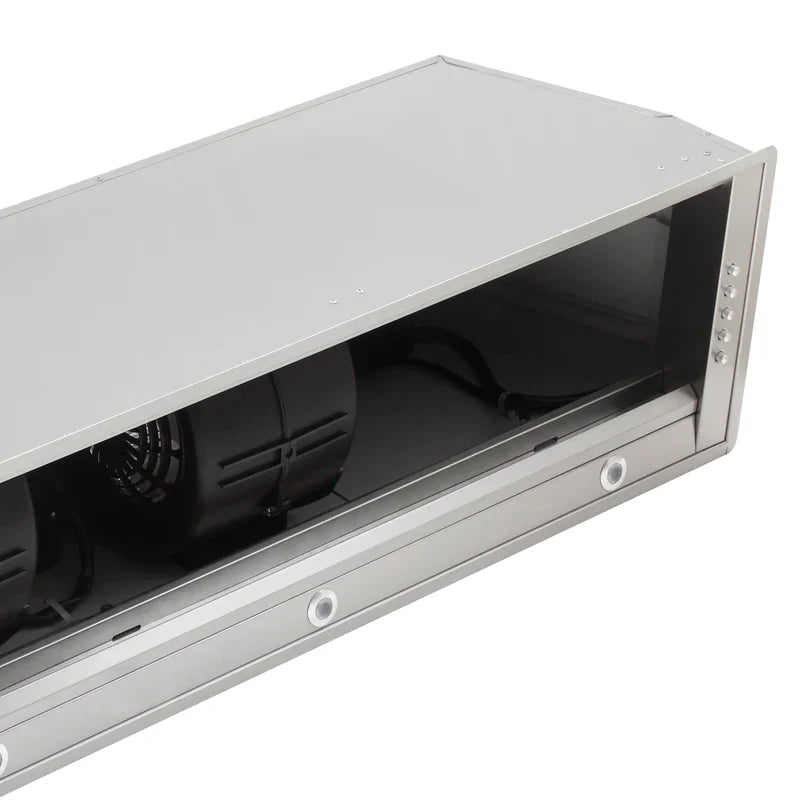

Forno Frassanito 60-Inch Recessed Range Hood Insert with 900 CFM Motor, Baffle Filters in Stainless Steel - FRHRE5346-60
The Forno Frassanito 60” Recessed Range Hood is made of stainless steel for a clean sleek look. Boasting an impressive 900 CFM airflow capture, this range hood will quickly trap cooking smoke, odors, and grease particles in the air. With 3 surface lights seeing the cooktop while in use . An intuitive 3-speed push button control panel allows you to quickly adjust the hood’s settings according to your specific needs. With its modern design and efficient performance, this range hood is sure to be a stylish yet practical addition to your kitchen.
FEATURES:
- Features a stainless steel finish and baffle filter design.
- A powerful 900 CFM airflow blower quickly and efficiently removes smoke, grease, and odours from your kitchen, ensuring maximum ventilation of fumes while minimizing noise levels.
- 3 speed push button control makes it simple to adjust the fan speed according to your needs.
- Three LED surface lights offer long-lasting performance and energy efficiency with bright illumination of the cooking surface.
- The baffle filter's combination of panels and curved plates a larger surface area that causes oils in the hot air to condensate on the steel. Dishwasher safe design allows for easy cleaning.
- This insert range hood is designed to fit seamlessly into any custom cabinetry installation or hood enclosure.
- Maximum power ventilation at a low noise level of 65dB allows you to enjoy an effective ventilation system without obtrusive noise disruption. Low setting delivers sound level of 45dB.
SPECIFICATIONS:
| Weight and Dimensions |
|
Overall Weight
|
67.68 lbs
|
Overall Dimensions
|
58.94" W X 11.10" D X 11.85" H
|
| Product Dimensions |
58.94" W x 11.10" D x 11.85" H
|
Minimum Height from Cooktop
|
25" for Electric Range 30" for Gas Range
|
Maximum Height from Cooktop
|
30"
|
Cutout Dimensions
|
58.27" W X 10.51" D X 0.79" H
|
| Electrical Specs |
|
Amperage
|
3.8A
|
Volts
|
120
|
Wattage
|
460
|
Power Source
|
AC |
Lighting Type
|
LED Lamp
|
Bulb Type
|
LED GU11
|
Bulb Wattage
|
1.5W
|
Power Cord Included
|
Yes
|
Plug Type
|
NEMA 5-16
|
| Details |
|
|
|
Built-in / Insert
|
|
|
Stainless Steel / Grey Metal
|
Duct Shape
|
6" Round
|
Blower Type
|
PVC
|
Air Discharge Direction
|
Vertically Upward
|
Exhaust Vent Location
|
Top
|
Filter Type
|
Baffle
|
Filter Material
|
Stainless Steel
|
Washable Filter
|
Yes
|
Damper
|
Yes
|
Speed Control
|
3 Speeds
|
Speed Control Type
|
Push Button Control
|
Hardware Finish
|
Stainless Steel
|
Primary Material
|
Stainless Steel
|
Rangehood Chimney
|
No
|
Chimney Short Kit
|
No
|
Glass Component
|
No
|
Crown Molding
|
No
|
Reversible Blower
|
No
|
Smudge Resistant
|
No
|
Heat Sensors
|
No
|
Heat Sensors
|
No
|
Delay Shut Off
|
No
|
Remote Control
|
No
|
Timer
|
No
|
Clean Filter Alert
|
No
|
Supplier Intended and Approved Use
|
Residential Use
|
|
CFM |
|
Maximum CFM
|
900 |
Minimum CFM
|
450 |
CFM speed 1
|
450
|
CFM speed 2
|
650
|
CFM speed 3
|
900
|
Air Flow per Speed Level (m3/hour)
|
|
Air Flow Speed 1 (m3/hour)
|
765
|
Air Flow Speed 2 (m3/hour)
|
1105
|
Air Flow Speed 3 (m3/hour)
|
1530
|
| RPM Speed Level |
|
RPM Speed 1
|
1130
|
RPM Speed 2
|
1590
|
RPM Speed 3
|
1820
|
Sones per Speed Level
|
|
Maximum Sones
|
13
|
Minimum Sones
|
3.3
|
Sones Speed 1
|
3.3
|
Sones Speed 2
|
6.5
|
Sones Speed 3
|
13
|
Decibels per Speed Level (dB)
|
|
Maximum Decibel (dB)
|
65
|
Minimum Decibel (dB)
|
45
|
Decibel Speed 1 (dB)
|
45
|
Decibel Speed 2 (dB)
|
55
|
Decibel Speed 3 (dB)
|
65
|
| Warranty and Certification |
|
ETL Listed
|
Yes |
Commercial Warranty
|
No
|
Warranty Type
|
Limited
|
Warranty Length
|
2 Years
|
Warranty on Parts
|
2 Years
|
Warranty on Labor
|
2 Years
|
