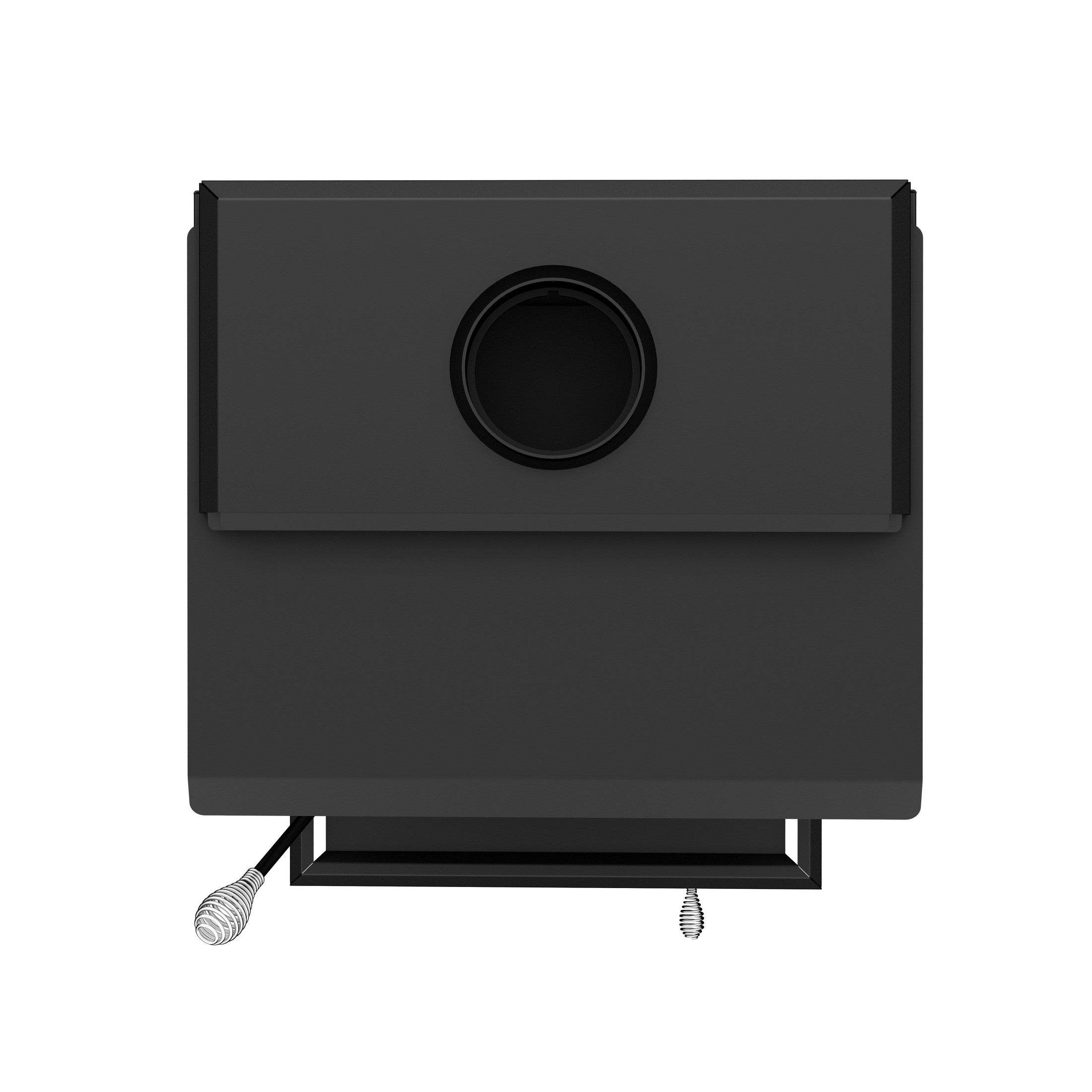

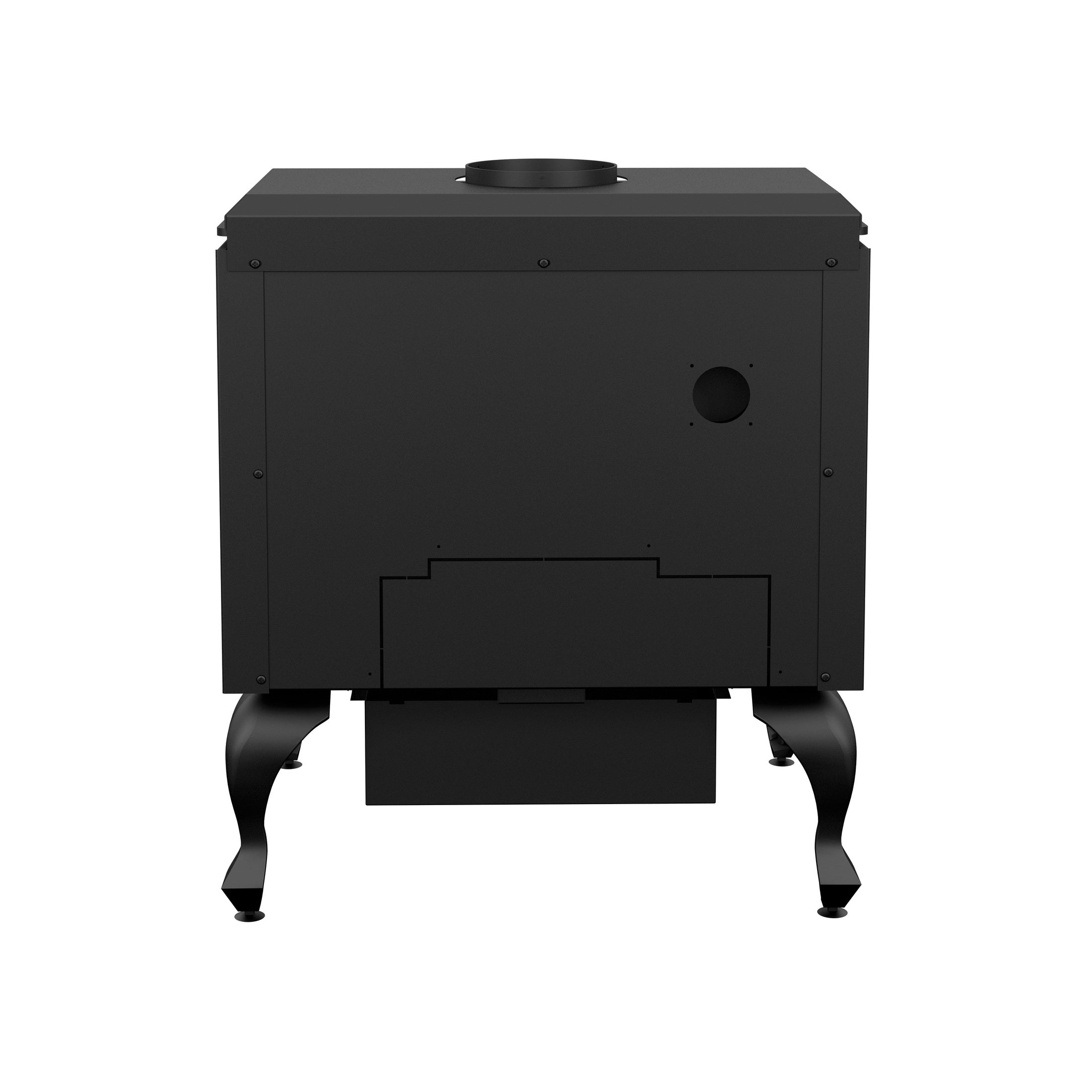

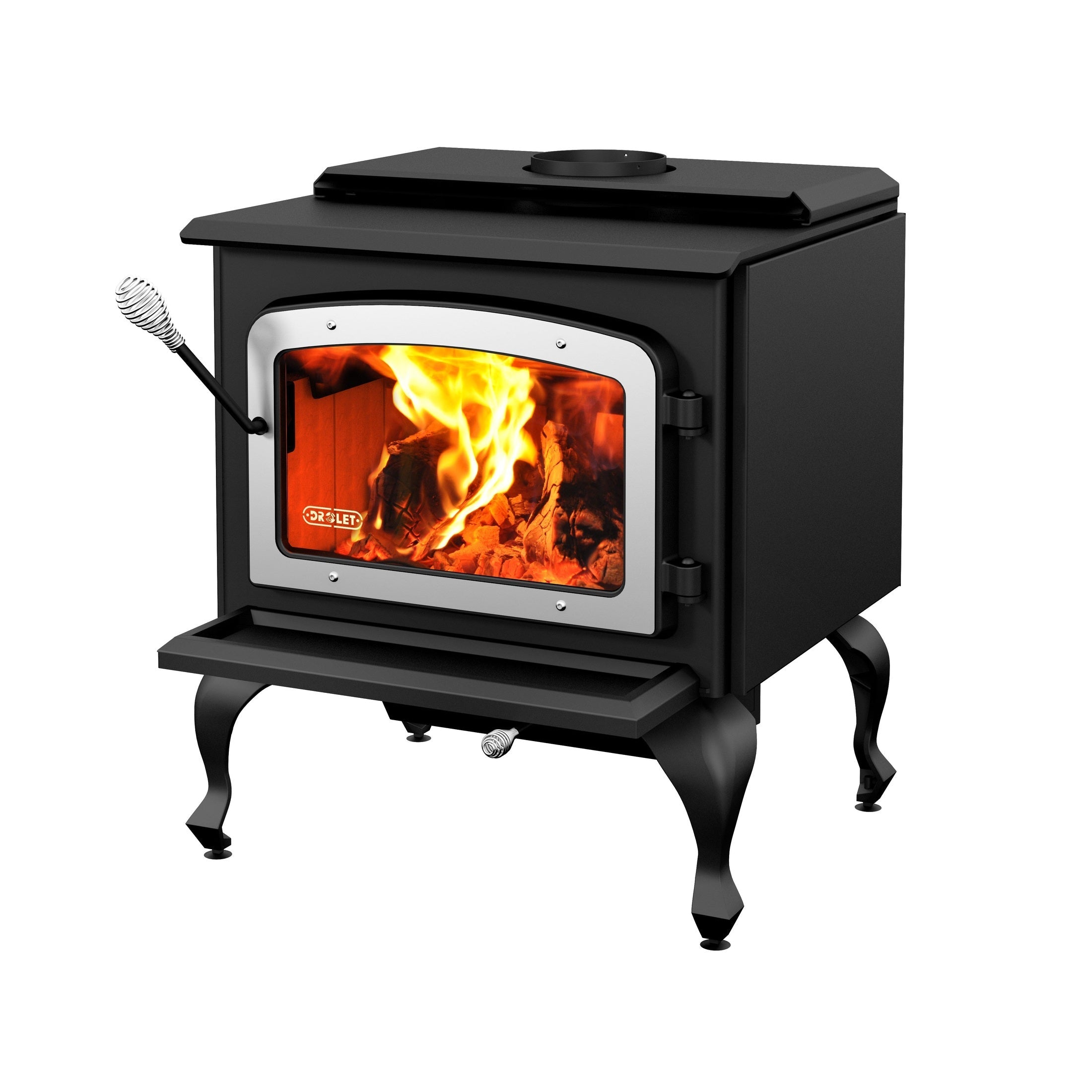

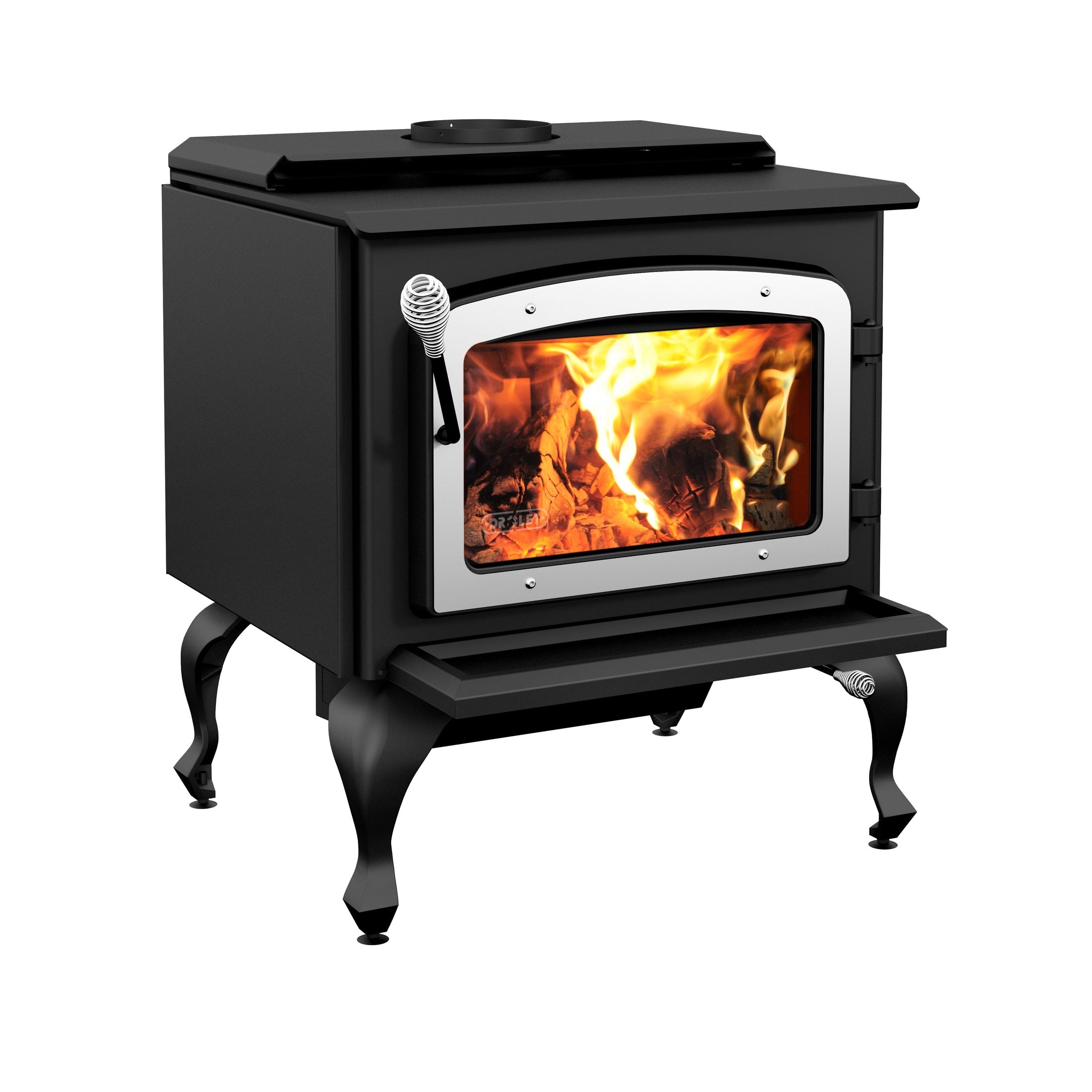

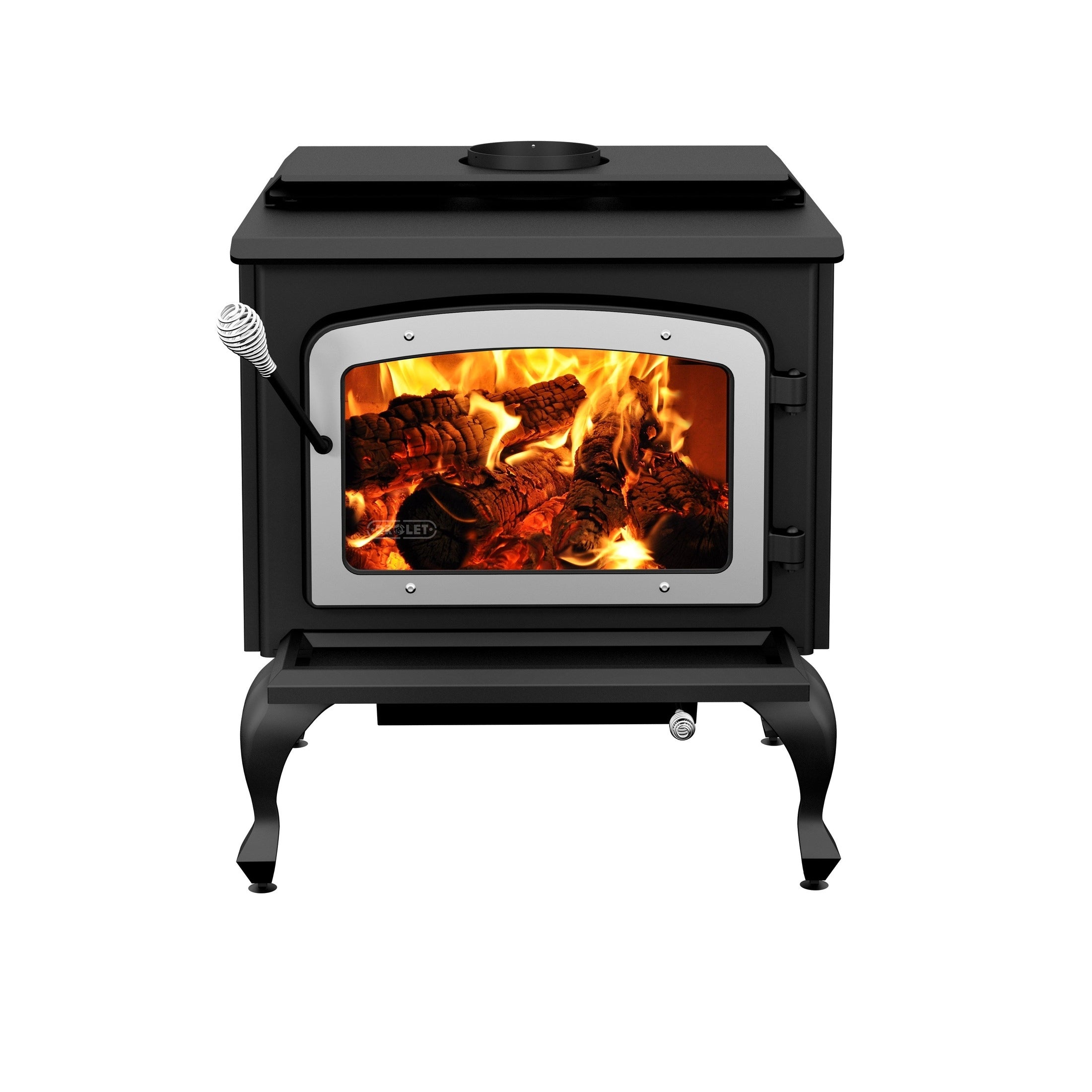

Drolet Escape 1800 Wood Stove on Legs - Brushed Nickel Door - DB03112
Ideal for spaces up to 2,100 ft², this large non-catalytic wood stove produces up to 75,000 BTU/h and emits only 1.54 g/h of fine particles. The unit is equipped with side panels that reduce clearances to combustible materials, and a top heat exchanger that redirects heat to the front of the unit.
Included: cast iron legs with ash drawer, brushed nickel door overlay, top air deflector, ceramic glass, side panels, ash lip, air damper
FEATURES:
Heating area
500 - 2,100Ft2
Size
26 1/8"W X25 7/8"D X30 1/4"H
Maximum log length
20"
Average particulate emission rate
1.54 g/h
Up to to 8 hours
Up to 20'' logs
2.4 ft³ firebox
Heavy duty 5/16'' steel top
EPA certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
SPECIFICATIONS:
General Features:
Stainless-steel secondary-air system
Yes
Flue outlet diameter
6"
Distance-center of the flue outlet to back unit
6 3/4"
Distance-center of the flue outlet to side unit
12 7/8"
Recommended chimney diameter
6"
Type of chimney
CAN/ULC S629, UL 103 HT (2100 °F)
Minimum chimney height
12'
Door type
Single, glass with cast iron frame
Door opening size (Width)
17 1/2"
Door opening size (Height)
9"
Glass type
Ceramic glass
Glass surface - W x H
16" x 9 1/4"
Steel thickness-body
3/16"
Steel thickness-top
5/16"
Firebox size (Width)
21"
Firebox size (Height)
12"
Firebox size (Depth)
16 1/2"
Log positioning
Loading over width
Firebox lined with refractory bricks
Yes
Baffle type
High quality vermiculite
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA / ASTM WK47329
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, UL 737
Appliance Performance:
Fuel type
Dry cordwood (16" recommended)
Recommended heating area(9)
500 - 2,100 ft²
Overall firebox volume
2.4 ft³
EPA loading volume
2.02 ft³
Maximum burn time(9)
8 h
Maximum heat output-dry cordwood(4)
75,000 BTU/h (22 kW)
Minimum overall heat output rate(4)(5)
14,800 BTU/h (4.34 kW)
Maximum overall heat output rate(4)(5)
28,600 BTU/h (8.38 kW)
Average overall efficiency-dry cordwood (HHV)(5)(6)
69 %
Average overall efficiency-dry cordwood (LHV)(5)(7)
74 %
Optimum efficiency(1)(2)
77 %
Optimum heat transfer efficiency(8)
75 %
Average particulate emission rate(3)
1.54 g/h
Average CO(10)
89.4 g/h
Size
Large
Maximum log length
20"
Shipping weight
375 lb (170 kg)
Overall dimension (Width)
26 1/8"
Overall dimension (Height)
30 1/4"
Overall dimension (Depth)
25 7/8"
Warranty
Limited lifetime
Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
Optional
Combustion technology
Non-catalytic
(1)This appliance is officially tested and certified by an independent agency.
(2)Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.
()Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.
(3)The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.
(4)As measured per CSA B415.1-10 stack loss method.
(5)Higher Heating Value of the fuel.
(6)Lower Heating Value of the fuel.
(7)Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(8)Optimum overall efficiency at a specific burn rate (LHV).
(9)The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(10)Carbon monoxyde.
Clearances:
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm)
United-States
Single wall pipe
Double wall pipe
Clearance – back wall
11"
6"
Clearance - corner
10"
7"
Clearance – side wall
16"
16"
Clearance – top (measured from the platform on which the appliance is installed)**
