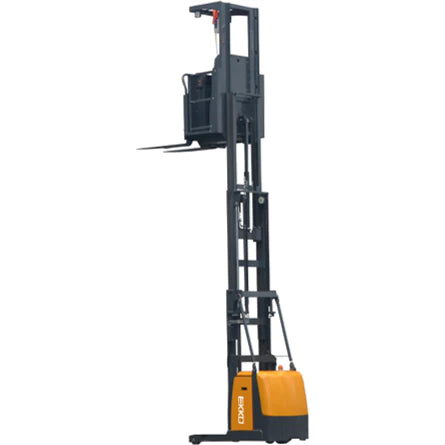

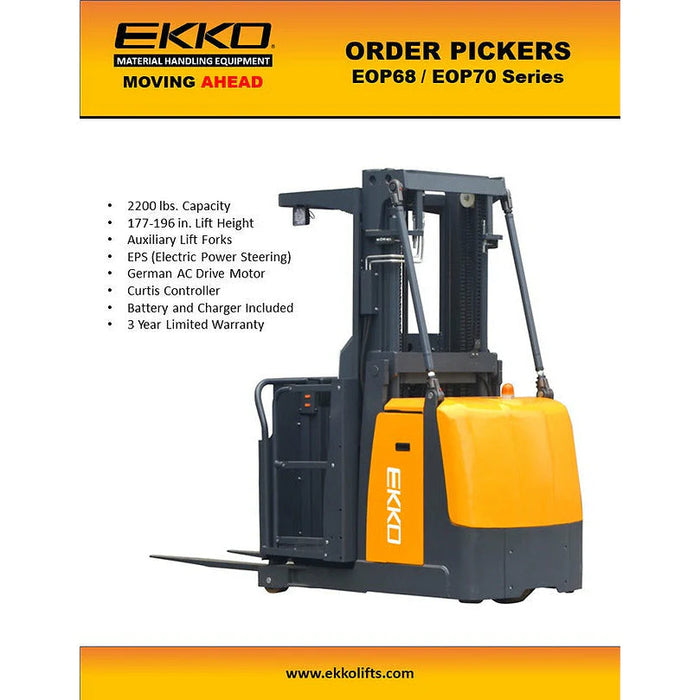

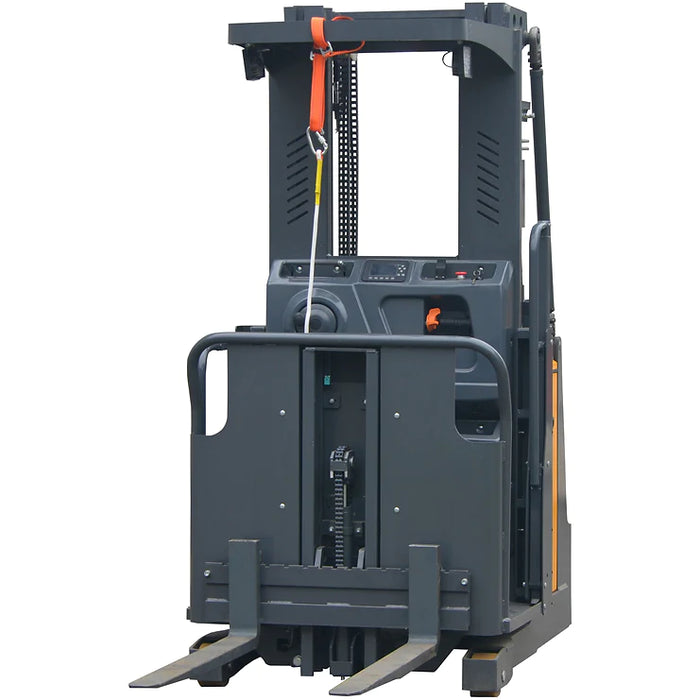

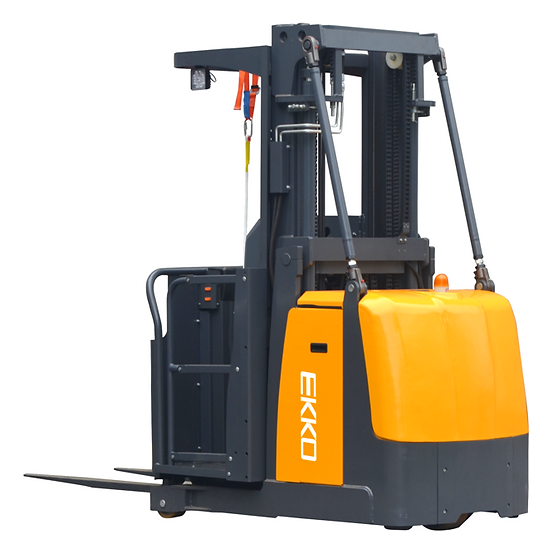

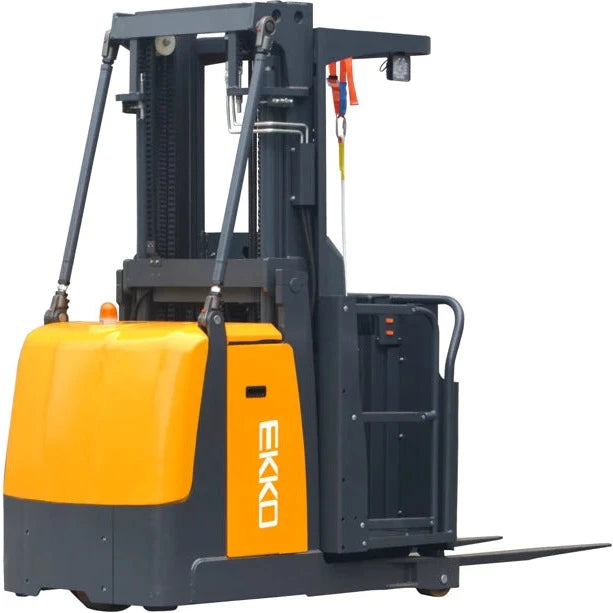

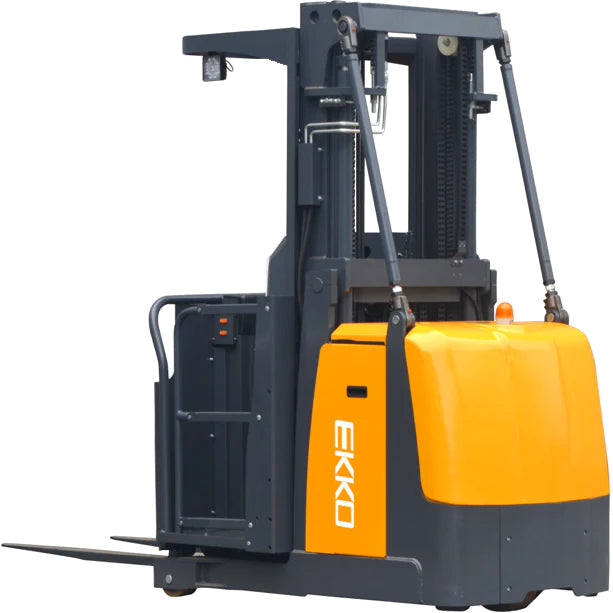

EKKO Order Picker 2200lb. Cap., 196" Lift EOP70

The EKKO EOP70 Electic Mid-Level Order Picker is designed it's sole purpose to pick your ordersfrom your racking and storage facility rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2200 lb
  • Raised Height 196" (16.33 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/350Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Specifications

Model

EOP70

Power Unit

Electric

Operation

Stand on

Rated Loading Capacity (Q)

2200 lbs

Load Centre (c)

19.68 in

Wheelbase (y)

53.46 in

Service Weight with Battery

6600 lbs

Wheels Type

PU (Polyurethane)

Driving Wheel Size

Φ9.84×5 in

Bearing Wheel Size

Φ5.9×3.23 in

Wheels, Number Front/Rear (x = driven)

1/2

Track Width (b11)

37.8 in

Lowered Mast Height (h1)

93.11 in

Lifting Height (h3)

196 inc

Extended Mast Height (h4)

285 in

Height of Overhead Guard (Cabin) (h6)

89.48 in

Height of Seat/Stand-on Platform (h7)

10.67 in

Additional Lift Height (h9)

30.71 in

Total Lift Height (h10)

227 in

Platform Lifting Height (h12)

206.873 in

Lowered Fork Height (h13)

1.97 in

Picking Height (h15)

258.01 in

Overall Length (l1)

111.41 in

Body Length (l2)

69.29 in

Overall Width (b1/ b2)

39.37/145.28 in

Fork Size (s/e/l)

1.37/3.93/42.13 in

Width of Fork Fixing Frame (b3)

35.83 in

Outside Fork Width (b5)

34.33 in

Min. Ground Clearance (m2)

1.97 in

Aisle Width for Pallets 39.37*47.24 Crossways (Ast)

122.24 in
