EKKO Order Picker 2200 lb Cap., 177" Lift EOP68

Text us for availability
EKKO | Authorized Dealer | Sku #: EOP68
Build Your Own Package
Discover your house by using our quote form down below.
FREE SHIPPING
No sales tax (except NY)
filler

Price:
Sale price$22,999.00

  • Authorized Dealer
  • Free Shipping
  • 30-Day Return Policy

Get 7% OFF With Code (Welcome) At Checkout

Description

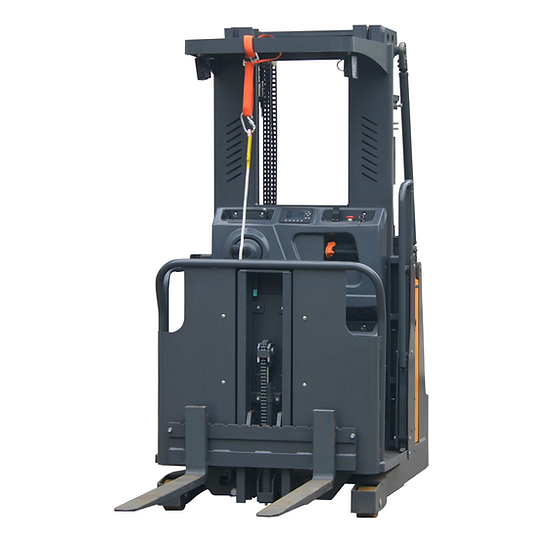

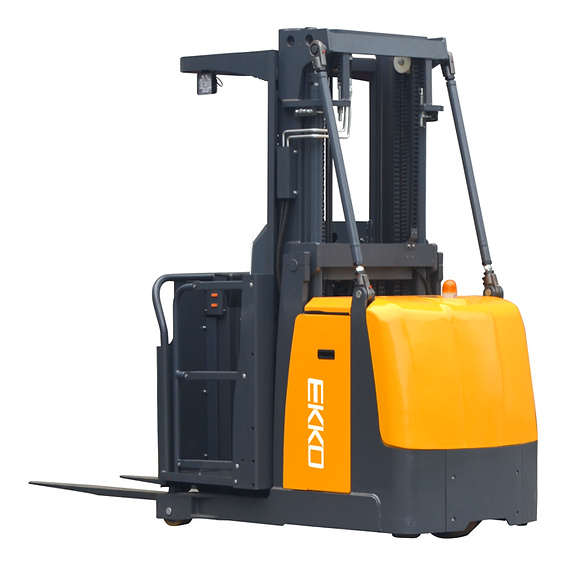

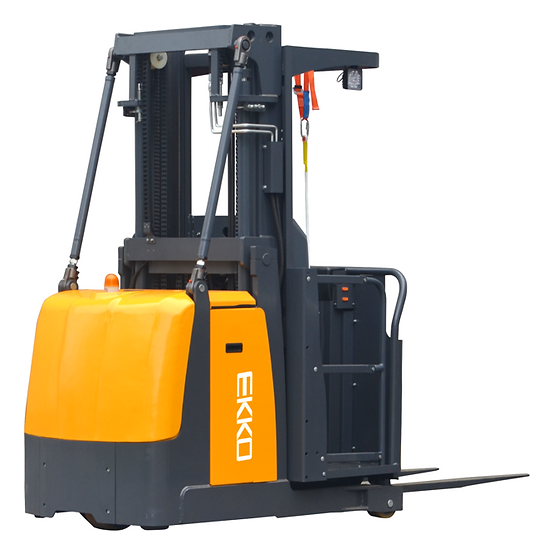

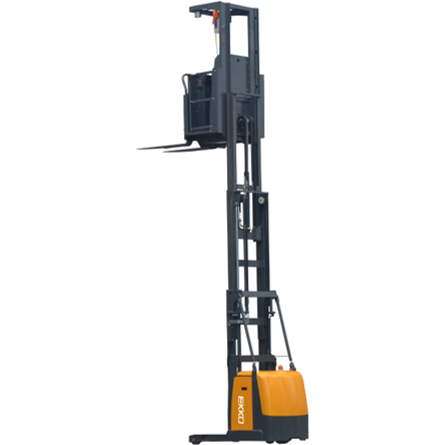

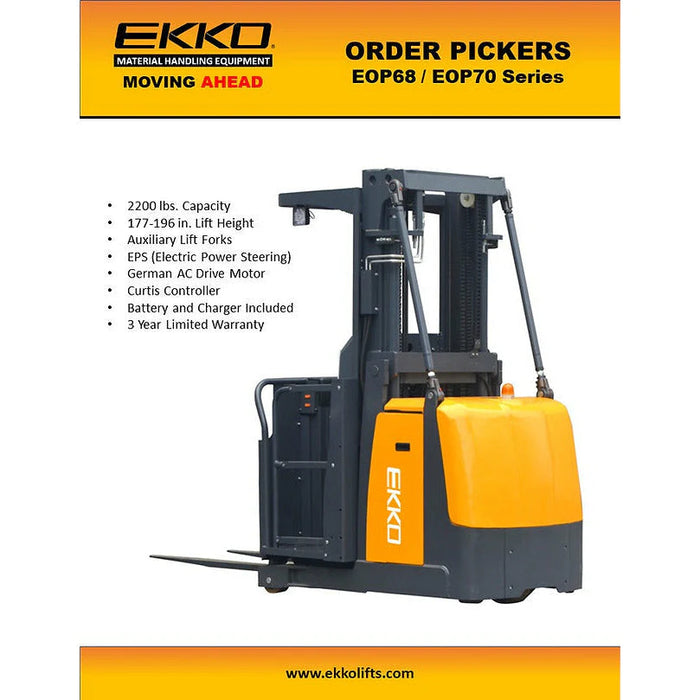

EKKO Order Picker 2200 lb Cap., 177" Lift EOP68

The EKKO EOP68 Electric Mid-Level Order Picker is designed it's sole purpose to pick your orders from your racking and storage facility rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2200 lb
  • Raised Height 177" (14.75 ft.)
  • Adjustable Forks
  • Auxiliary Fork
  • Triple Mast
  • Curtis Instrument Controller
  • EPS (Electronic Power Steering)
  • German AC Drive Motor
  • Battery 24V/350Ah
  • 24V/50A
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

Specifications

Model

EOP68

Power Unit

Electric

Operation

Stand on

Rated Loading Capacity (Q)

2200 lbs

Load Centre (c)

19.68 inches

Wheelbase (y)

53.46 inches

Service Weight with Battery

6270 lbs

Wheels Type

PU

Driving Wheel Size

Φ9.84×5 inches

Bearing Wheel Size

Φ5.9×3.23 inches

Wheels, Number Front/Rear (x = driven)

1 / 2

Track Width (b11)

37.8 inches

Lowered Mast Height (h1)

93.11 inches

Lifting Height (h3)

177.16 inches

Extended Mast Height (h4)

266.65 inches

Height of Overhead Guard (Cabin) (h6)

89.48 inches

Height of Seat/Stand-on Platform (h7)

10.67 inches

Additional Lift Height (h9)

30.71 inches

Total Lift Height (h10)

208.66 inches

Platform Lifting Height (h12)

187.83 inches

Lowered Fork Height (h13)

1.97 inches

Picking Height (h15)

239.01 inches

Overall Length (l1)

111.41 inches

Body Length (l2)

69.29 inches

Overall Width (b1 / b2)

39.37 / 145.28 inches

Fork Size (s/e/l)

1.37/3.93/42.13 inches

Width of Fork Fixing Frame (b3)

35.83 inches

Outside Fork Width (b5)

34.33 inches

Min. Ground Clearance (m2)

1.97 inches

Aisle Width for Pallets 39.37*47.24 Crossways (Ast)

122.24 inches

Aisle Width for Pallets 31.5*47.24 Lengthways (Ast)

126.77 inches

Turning Radius (Wa)

61.81 inches

Travel Speed, Laden/Unladen (km/h)

8

Lifting Speed, With/Without Load (Cabin) (mm/s)

140/150

Lifting Speed, With/Without Load (Fork) (mm/s)

130/140

Lowering Speed, With/Without Load (Cabin) (mm/s)

240/250

Lowering Speed, With/Without Load (Fork) (mm/s)

130/95

Climbing Ability, With/Without Load (%)

3/6

Brake Type

Electromagnetic Brake

Drive Motor (kW)

3

Lift Motor (kW)

6

Battery Voltage/Rate Capacity (V/Ah)

24/350

Battery Weight (±5%) (LBS)

600

Type of Drive Control

AC

Noise Level (dB(A))

≤75
