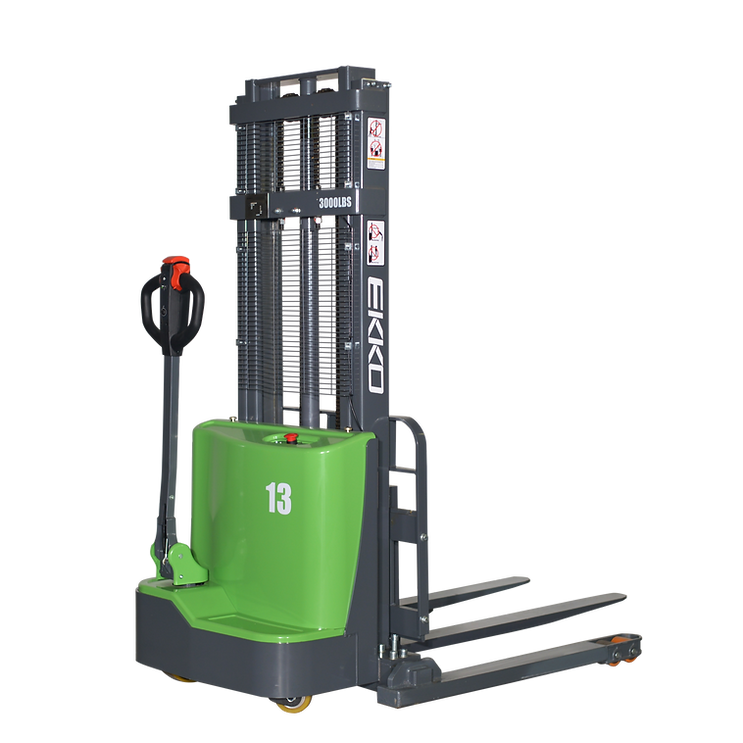

EKKO Lithium Straddle Stacker 2800 lb Cap., 118" Height EB13C-118Li
The EKKO EB13C-118Li Lithium Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 2800 lb
- Raised Height 118”
- Adjustable Forks 8.6-32.1“
- Adjustable Legs 35.4-51.2”
- Fork Length 45.3“
- Curtis Instrument Controller
- DC Drive Motor
- Battery 24V/50Ah
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
Product Info
|
Model
|
|
EB13C- 118Li
|
|
Load capacity
|
(lbs)
|
2800
|
|
The max. lifting height
|
(in)
|
118”
|
|
Load center distance
|
(in)
|
20
|
|
Fork length
|
(in)
|
45.3
|
|
Single fork width
|
(in)
|
4
|
|
Fork Adjustment Width
|
(in)
|
8.6-32.1
|
|
Lowered fork height
|
(in)
|
2.56
|
|
Adjustable legs
|
(in)
|
35.4-51.2
|
|
Turning radius
|
(in)
|
56.1
|
|
Overall length
|
(in)
|
73.4
|
|
Max Overall width
|
(in)
|
61
|
|
Extended mast height
|
(in)
|
147.6
|
|
Lowered mast height
|
(in)
|
85
|
|
Battery voltage
|
(V/Ah)
|
24V/50Ah Lithium
|
|
Internal Charger
|
V/A
|
24V/20A
|
|
Lifting Motor
|
Kw
|
2.2 kw
|
|
Driving Motor
|
|
0.75 kw
|
|
Service Weight
|
(lbs)
|
1380
|
