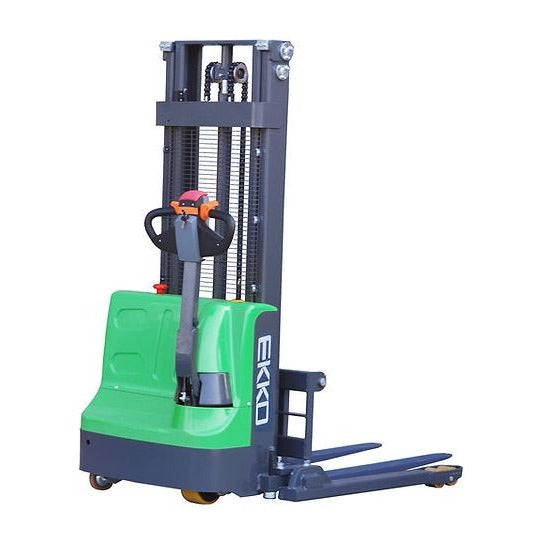

EKKO Lithium Iron Phosphate Straddle Stacker 72"Mast, 98" Lift EB12E-98Li

The EKKO EB12E-98Li LITHIUM IRON PHOSPHATE Electric Straddle Stacker with a 72" lowered mast can get underneath any doorway and is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

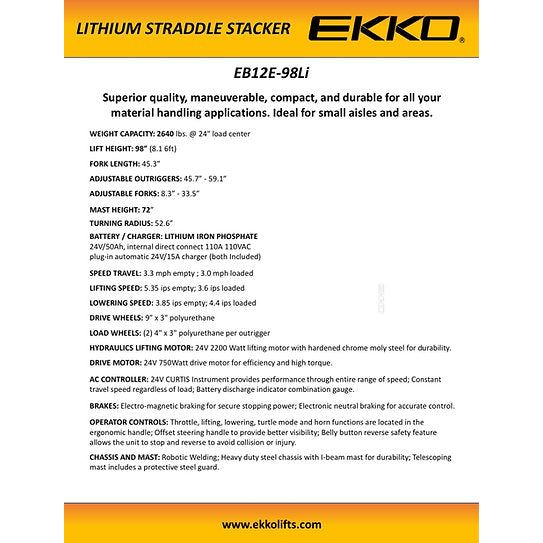

  • Load Capacity 2640 lb
  • Lowered Mast 72"
  • Raised Height 98”
  • Adjustable Forks 8.3-33.5“
  • Adjustable Legs 45.7-59.1”
  • Fork Length 45.3“
  • Curtis Instrument Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Battery 24V/50Ah Lithium
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3 Year Limited Warranty



About EKKO Lifts

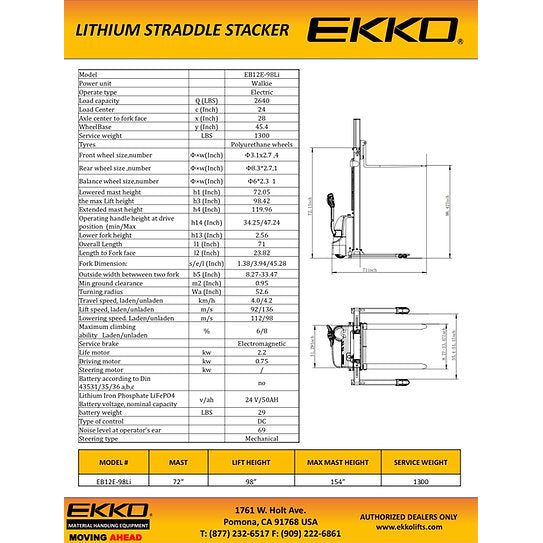

Specification



Model EB12E-98Li
Power unit Walkie
Operate type Electric
Load capacity 2640 lbs
Load Center 24 in
Axle center to fork face 28 in
Wheel Base 45.4 in
Service weight 1300 lbs
Tyres Polyurethane wheels
Front wheel size,number Φ3.1x2.7 ,4 in
Rear wheel size ,number Φ8.3*2.7,1 in
Balance wheel size,number Φ6*2.3 1 in
Lowered mast height 72.05 in
the max Lift height 98.42 in
Extended mast height 119.96 v
Operating handle height at drive position (min/Max 34.25/47.24 in
Lower fork height 2.56 in
Overall Length 71 in
Length to Fork face 23.82 in
Fork Dimension: 1.38/3.94/45.28 in
Outside width betwween two fork 8.27-33.47 in
Min ground clearance 0.95 in
Turning radius 52.6 in
Travel speed, laden/unladen 4.0/4.2 in
Lift speed, laden/unladen 92/136 m/s
Lowering speed. Laden/unladen 112/98 m/s
Maximum climbing ability Laden/unladen 6/8
Service brake Electromagnetic
Life motor 2.2 kw
Driving motor 0.75 kw
Steering motor / kw
Battery according to Din 43531/35/36 a,b,c no
Battery voltage, nominal capacity 24 V/50AH
battery weight 29 lbs
Type of control DC
Noise level at operator's ear 69
Steering type Mechanical
