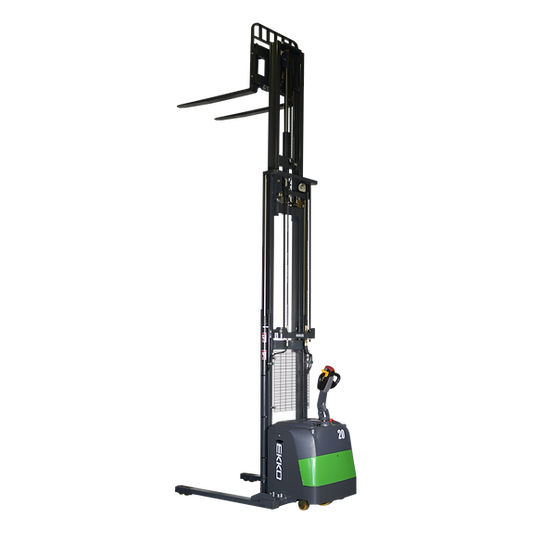

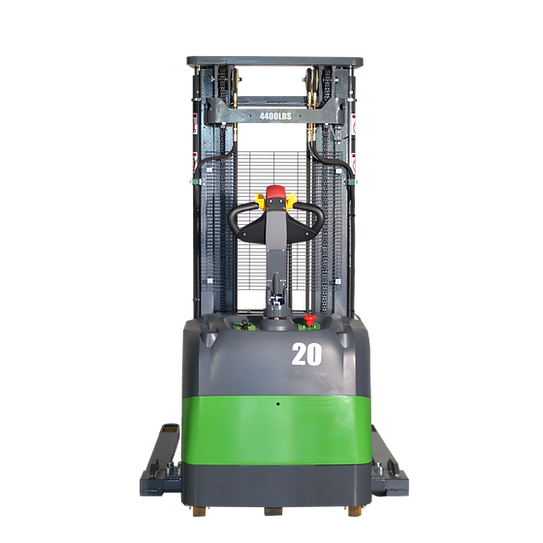

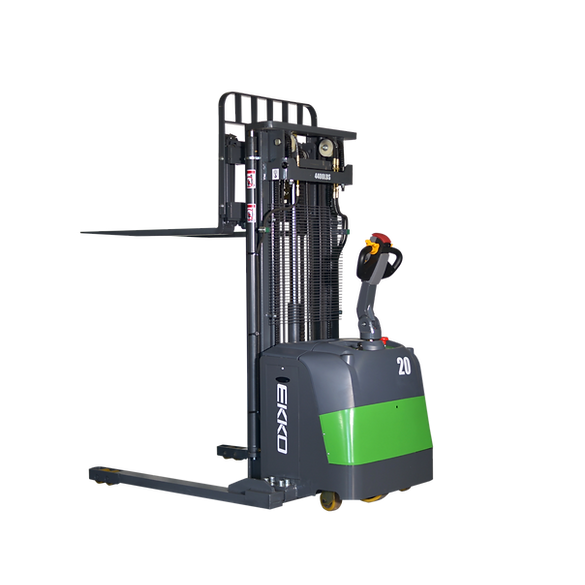

EKKO Full Powered Straddle Stacker 4400 lb Cap., 177" Height EB20CS-177LI
The EKKO EB20CS-177LI LithiumElectric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400 lb
- Battery 24V/150Ah Lithium
- Raised Height 177" (14.75ft)
- Side Shift
- Adjustable Forks 8.7-32.1"
- Adjustable Legs 39.8-55.5"
- Fork Length 45.3"
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- Triple Mast
- Polyurethane Wheels

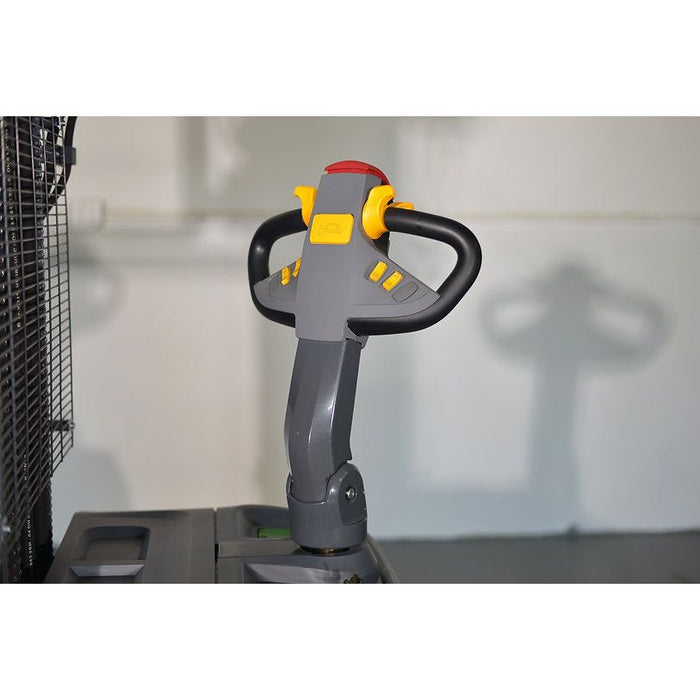

- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger 24V/50A Included
- Batteries Included
Specifications
| Model |
EB20CS-177LI |
| Load capacity |
4400 (lb) |
| The max. lifting height |
177 (in) |
| Load center distance |
24 (in) |
| Fork length |
45.3 v |
| Single fork width |
3.9 (in) |
| Overall fork width |
8.7-32.1 (in) |
| Lowered fork height |
2.6 (in) |
| Overall Length |
81.9 (in) |
| Adjustable legs |
39.8-55.5 (in) |
| Turning radius |
65 (in) |
| Min. Ground clearance |
1.2 (in) |
| Extended mast height |
206.3 (in) |
| Lowered mast height |
79.3 (in) |
| Battery voltage |
24/150Ah Lithium |
| The charger |
24V/50A |
| Lifting Motor |
3,000 |
| Driving Motor |
1500W |
| Service Weight |
2970 (lb) |
