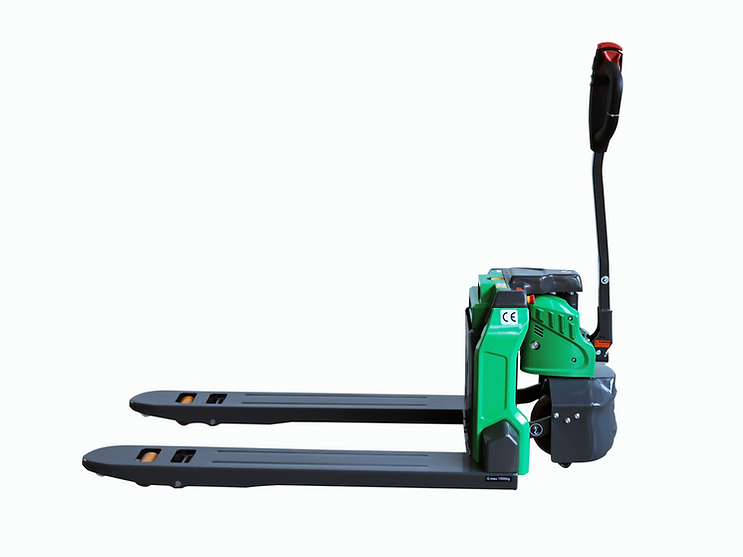

EKKO Full-Powered Lithium Pallet Jack 4400lbs. Capacity EPT20Li
The EKKO EPT20Li Full-PoweredLithium Pallet Jack is designed with the versatility of a pallet jack with full power lifting and driving capabilities. It is ideal for long hauls, loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 4400lbs.
- Fork Size 27x45
- Raised Height 7.68"
- Lowered Height 3.35"
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger Included
- Removable Battery 48V/20Ah Included
- 3 Years Limited Warranty
Product Info
| Model |
|
EPT20Li |
| Power unit |
|
Lithium Battery |
| Operation |
|
Control |
| Rated loading capacity |
Q (LBS) |
4400 |
| Load center distance |
c (Inch) |
24 |
| Wheel base |
y (Inch) |
81.89 |
| Wheels type |
|
PU |
| Lifting height |
h3 (Inch) |
7.68" |
| Overall height |
h14 (Inch) |
42.91 |
| Lowered fork height |
h13 (Inch) |
3.35 |
| Overall length |
l1 (Inch) |
64.17 |
| Overall width |
b1/ b2 (Inch) |
31.81 |
| Fork Size |
s/e/l (Inch) |
2.24/6.3/45.28 |
| Fork Width |
b5 (Inch) |
26.97 |
| Min.Ground clearance |
m2 (Inch) |
0.98 |
| Aisle width for pallets 39.37*47.24 crossways |
Ast (Inch) |
88.5 |
| Aisle width for pallets 31.5*47.24 lengthways |
Ast (Inch) |
85.2 |
| Turning Radius |
Wa (Inch) |
58.82 |
| Travel speed,laden/unladen |
(mph) |
2.49/2.8 |
| Lifting speed, with/without load |
(in/s) |
0.59/0.76 |
| Lowering speed, with/without load |
(in/s) |
6/10 |
| Brake Type |
|
Electromagnetic brake |
| Drive Motor |
(kW) |
0.85 |
| Lift Motor |
(kW) |
0.7 |
| Battery voltage/rate capacity |
(V/Ah) |
48/20 |
| Battery Weight（±5%） |
(LBS) |
13.9 |
| Type of drive control |
|
DC |
| Service weight with battery |
LBS |
365 |
