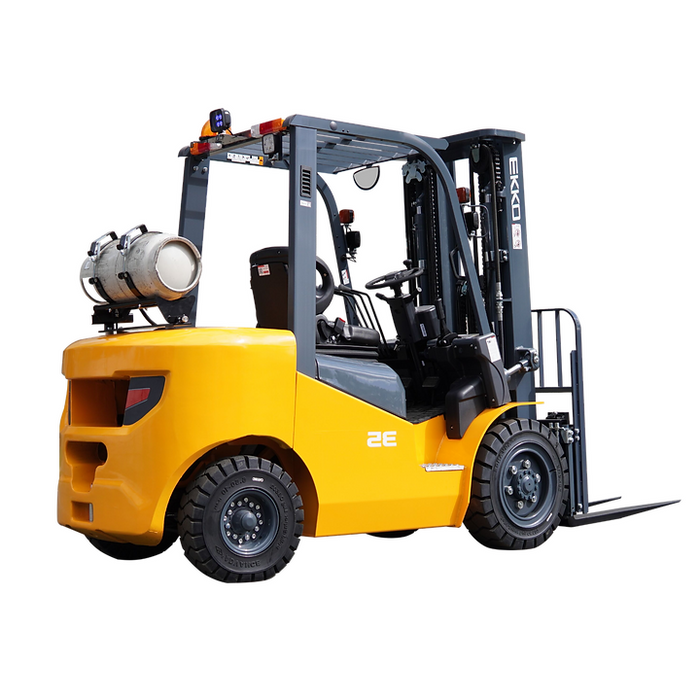

EKKO Pneumatic Forklift (LPG) 7000 lbs cap, 189" Lift Height
EK35LP
The EKKO EK35LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing. EKKO Forklifts are the smart choice for your business.
- Multifunction instrument panel - motoring for Safety and efficient operation
- Operator compartment- nonslip entrance step, wider access & leg room.
- Adjustable steering column limiting operator arm and shoulder fatigue.
- Excellent Operator visibility.
- Integral Heavy-Duty Chassis- ensuring driver protection
- Steer axle pivots to 80 degrees for tighter turning radius.
- Hydraulic controls
SPECIFICATIONS
| Model |
EK35LP |
| Drive type |
LPG |
| Type of operation |
Propane |
| Load Capacity |
7000 LBS |
| Load Center |
24 in |
| Lift height |
189 in |
| Wheelbase |
68.9 in |
| Service Weight |
10605 LBS |
| Tire material |
Solid Pneumatic Tire |
| Traction Pin Height |
12.2 in |
| Service Brake |
Hydraulic Foot Pedal |
| Overall width |
48.2 in |
| Overall length with forks |
150.4 in |
| Overall length without forks |
108.3 in |
| Min ground clearance (at the mast) |
5.3 in |
| Traveling speed |
11.875 mph |
| Mast Overall height |
89.4 in |
| Free lifting height |
42.9 in |
| Backrest height (from the surface of the forks) |
46.3 in |
| Fork Size |
42.1X4.9X1.97 in |
| Parking Brake |
Mechanic Hand Lever |
| Engine Mode |

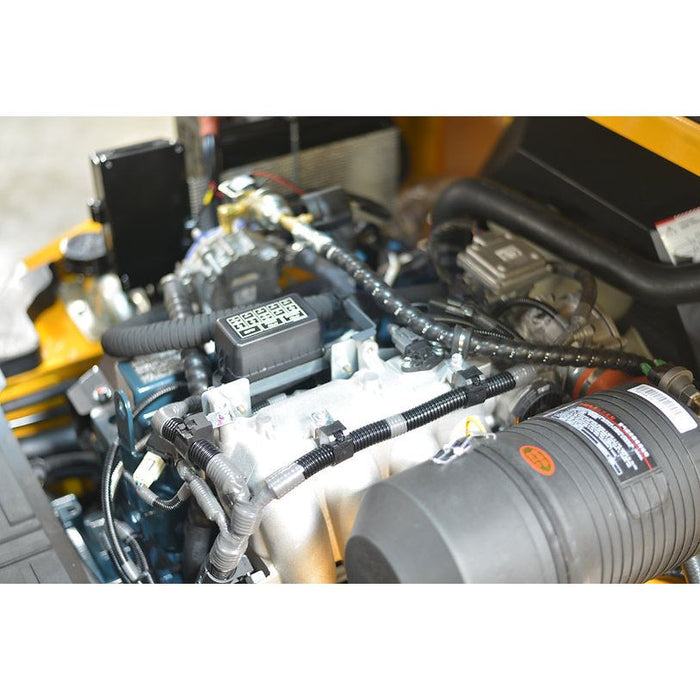

Kubota WG2503 |
| Engine rated power |
60.1HP 2400rpm |
