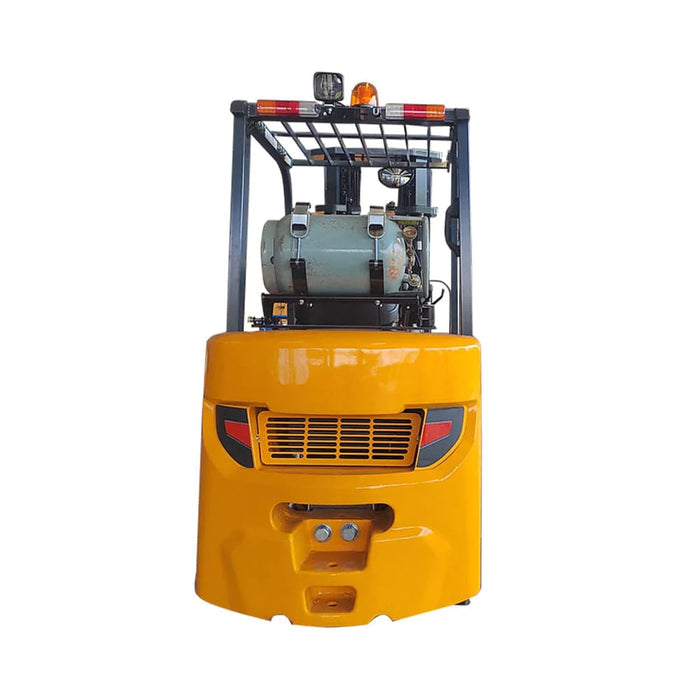

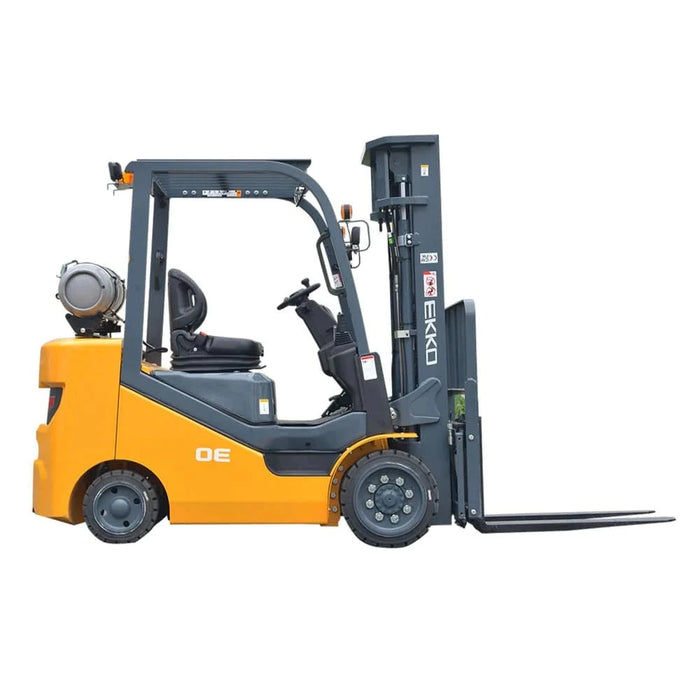

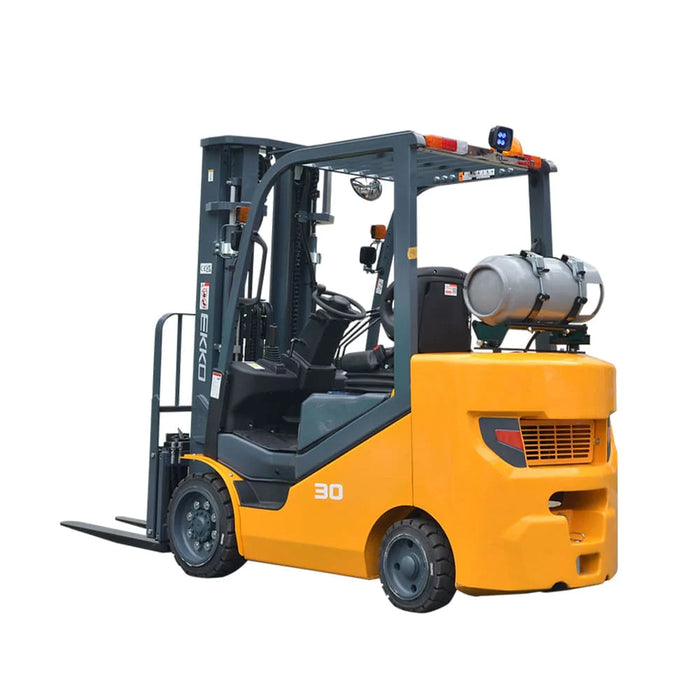

EKKO Forklift with Pattern Cushion (LPG) 6000 lbs
EK30SLP
This EKKO EK30SLP Forklift with Pattern Cushion (LPG) has been expertly crafted for versatile use in a warehouse or distribution setting. It boasts superior durability and is compliant with Tier 4 EPA regulations, making it a high-quality and cost-effective choice for all of your material handling needs.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Specifications
|
Model
|
EK30SLP |
|
Drive Type
|
LPG |
|
Type of Operation
|
Propane |
|
Load Capacity
|
6000 (LBS) |
|
Load Center
|
24 in |
|
Lift Height
|
189 in |
|
Wheelbase
|
58 in |
|
Service Weight
|
10785 lbs |
|
Tire Material
|
Pattern Cushion Tire |
|
Wheel Size
|
21x8-15 front 16x6-10.5 rear |
|
Service Brake
|
Hydraulic Floor Pedal |
|
Overall Width
|
44 in |
|
Overall Length with Forks
|
140 in |
|
Overall Length without Forks
|
97.8 in |
|
Min Ground Clearance (at the mast)
|
3.5 in |
|
Max Traveling Speed (loaded/unloaded) (mph)
|
10.8 / 10.8 |
|
Mast Overall Height
|
in |
|
Free Lifting Height
|
39 in |
|
Backrest Height (from the surface of the forks)
|
48 in |
|
Fork Size
|
42x4.9x1.77 |
|
Battery
|
12 V 60 Ah |
|
Engine Mode
|
Mitsubishi 4G64 (PSI Engine) |
|
Engine Rated Power
|
LPG: 64 HP 2700 rpm |
