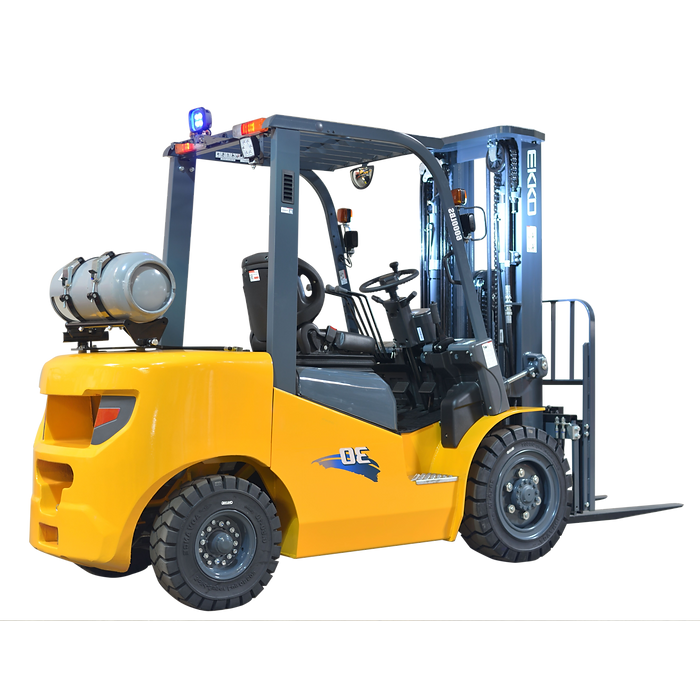

EKKO Pneumatic Forklift (LPG) 6000 lbs cap, 189" Lift Height
EK30LP
The EKKO EK30LP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the Kubota engine and competitive pricing.
• Multifunction instrument panel - motoring for Safety and efficient operation
• Operator compartment- nonslip entrance step, wider access & leg room.
• Adjustable steering column limiting operator arm and shoulder fatigue.
• Excellent Operator visibility.
• Integral Heavy-Duty Chassis- ensuring driver protection
• Steer axle pivots to 80 degrees for tighter turning radius.

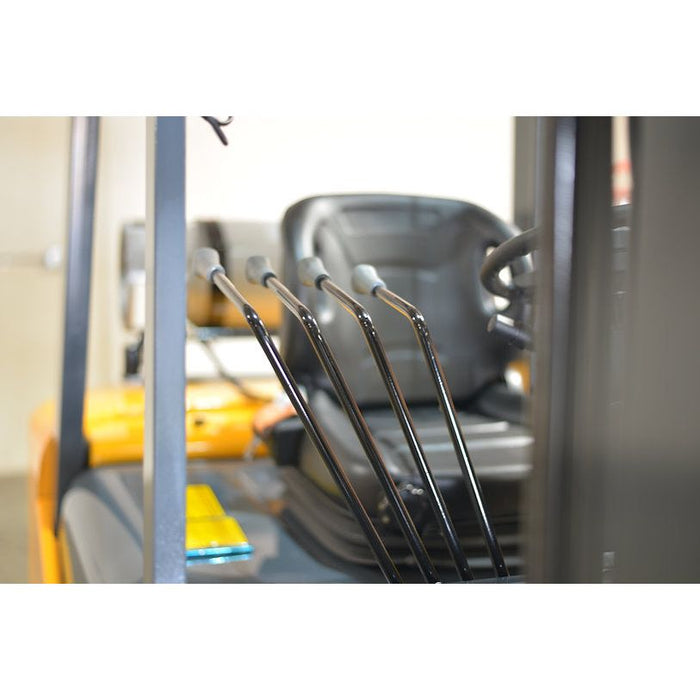

• Hydraulic controls
Specifications
|
Model
|
EK30LP |
|
Drive type
|
LPG |
|
Type of operation
|
Propane |
|
Load Capacity
|
6000 LBS |
|
Load Center
|
24 in |
|
Lift height
|
189 in |
|
Wheelbase
|
69 in |
|
Service Weight
|
10320 LBS |
|
Tire material
|
Pneumatic |
|
Wheel size(Front / Rear)
|
28x9-15-12PR / 6.50-10-10PR in |
|
Service Brake
|
Hydraulic Floor Pedal |
|
Overall width
|
48.2 in |
|
Overall length with forks
|
150.3 in |
|
Overall length without forks
|
108.2 in |
|
Min ground clearance (at the mast)
|
4.53 in |
|
Max traveling speed (loaded/unloaded)
|
11.8/11.8 mph |
|
Mast Overall height
|
89.4 in |
|
Free lifting height
|
40.9 in |
|
Backrest height (from the surface of the forks)
|
46.54 in |
|
Fork Size
|
42.13x4.92x1.77 in |
|
Battery
|
12V 80Ah |
|

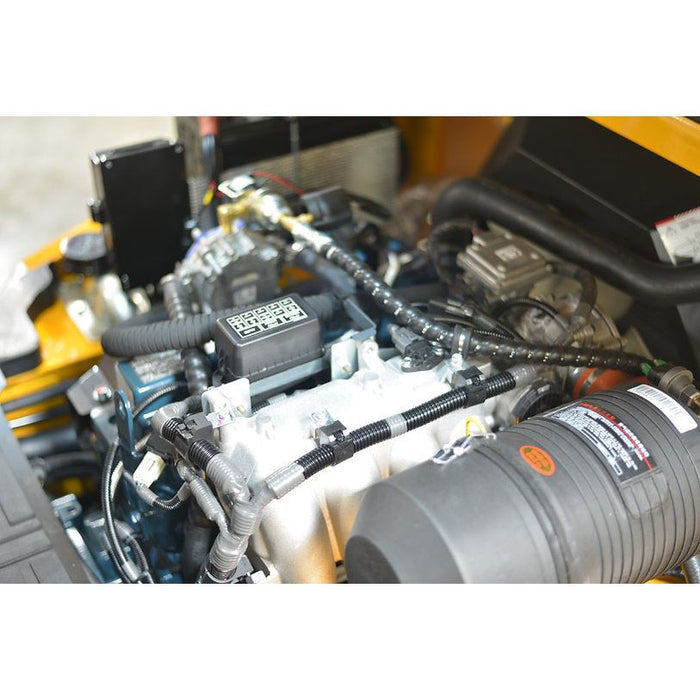

Engine Mode
|
Kubota WG2503 |
|
Engine rated power
|
LPG: 58.3HP 2600rpm |
