EKKO Forklift with Cushion (LPG) 5000 lbs
EK25CLP
The EKKO EK25CLP Liquid Propane 4 Wheel Forklift is your premium solution for all material handling, warehousing, and distribution needs. Crafted with outstanding durability and equipped with a Tier 4 EPA-compliant PSI engine, this forklift offers competitive pricing without compromising on quality. Engineered for comfort and efficiency, the EK25CLP boasts a range of features designed to enhance the operator's experience and reduce operating costs.
- The operation space is enlarged y heightened overhead guard and using large arc shape of he overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling tot he ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engines satisfies the CARB 4 regulation
Specifications
|
Model
|
EK25CLP |
|
Drive Type
|
LPG |
|
Type of Operation
|
Propane |
|
Load Capacity
|
5000 LBS |
|
Load Center
|
24 in |
|
Lift Height
|
189 in |
|
Wheelbase
|
58 in |
|
Service Weight
|
9370 LBS |
|

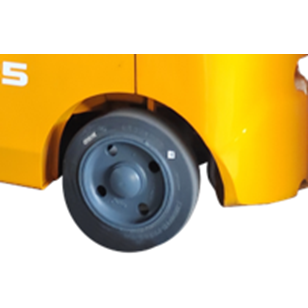

Tire Material
|
Cushion Tire |
|
Wheel Size (Front / Rear)
|
|
|
Service Brake
|
|
|
Overall Width
|
42 in |
|
Overall Length with Forks
|
136.8 in |
|
Overall Length without Forks
|
94.5 in |
|
Min Ground Clearance (at the Mast)
|
3.5 in |
|
Max Traveling Speed (Loaded/Unloaded)
|
10.8 / 10.8 mph |
|
Mast Overall Height
|
85 in |
|
Free Lifting Height
|
44 in |
|
Backrest Height (from the Surface of the Forks)
|
40 in |
|
Fork Size
|
42x4.8x1.57 in |
|
Battery
|
12V / 60Ah |
|
Engine Mode
|
Mitsubishi 4G64 (PSI Engine)
|
|
Engine Rated Power
|
|
