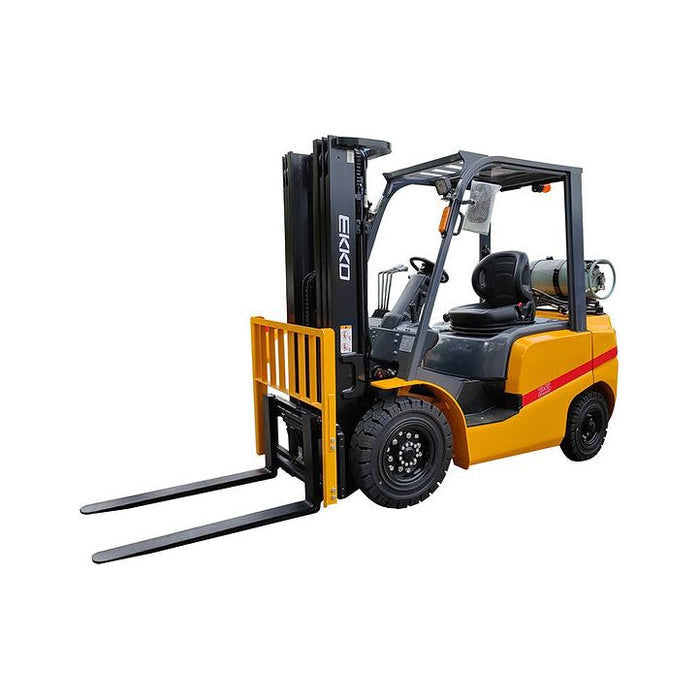

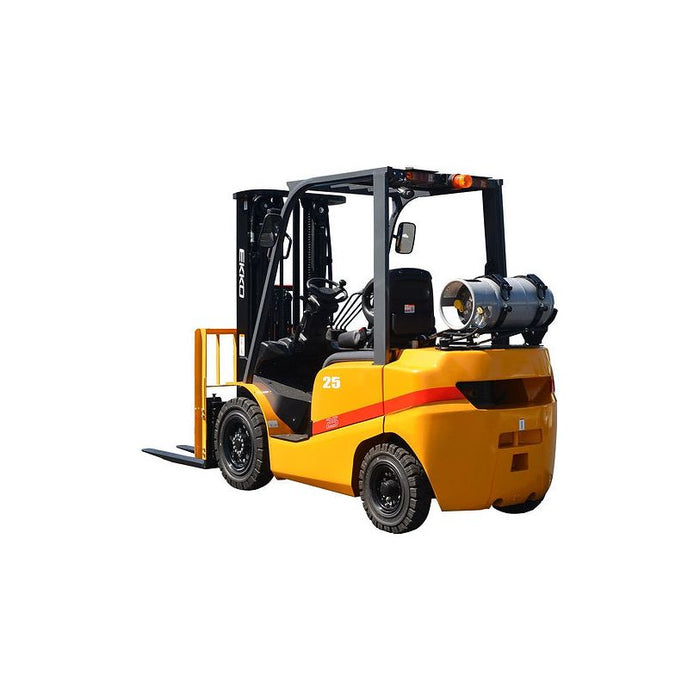

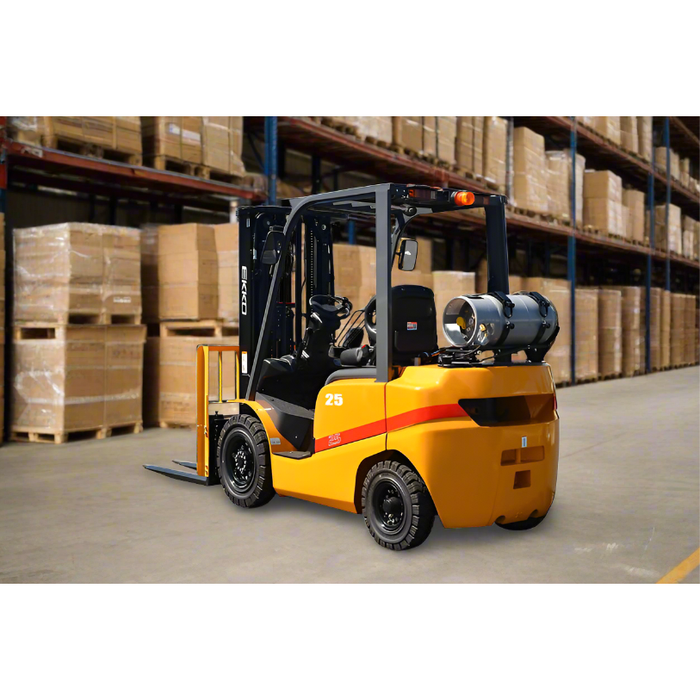

EKKO Forklift with solid pneumatic tires 4000 lbs., cap.
EK20TLP
The EKKO EK20TLP Liquid Propane 4 Wheel Forklift is designed to be used for all your material handling demands, warehousing, and distribution.
This unit is manufactured with high durable quality, Tier 4 EPA compliant with the PSI 2.4L engine and competitive pricing.
- The operation space is enlarged and heightened overhead guard and using large arc shape of the overhead guard's front leg
- Semi-suspension seat, and small steering wheel, electro-hydraulic direction changing and automobile type double combined switch effectively improve driving comfort level.
- Cushion connection and whole suspension cab can absorb the vibrations of truck effectively.
- Lowering damping device inside the lifting system reduces mast's shock and vibration, avoiding noise caused by goods falling to the ground.
- Small turning radius makes steering flexible and easy.
- with optimized hydraulic system, the truck is more energy-efficient and has lower fuel consumption.
- The engine satisfies the CARB 4 regulation
Specifications
| Model |
EK20TLP |
| Drive type |
LPG |
| Type of operation |
Propane |
| Load Capacity |
4000 LBS |
| Load Center |
24 in |
| Lift height |
185 in |
| Wheelbase |
62.9 in |
| Service Weight |
7,716 LBS |
| Tire material |
Solid Pneumatic Tire |
| Wheel |
7.00-12-12PR/6.00-9-10PR |
| Service Brake |
Hydraulic Floor Pedal |
| Overall width |
45.2 in |
| Overall length with forks |
141.8 in |
| Overall length without forks |
96.8 in |
| Min ground clearance (at the mast) |
4.3 in |
| Max traveling speed (loaded/unloaded) |
10.6/11.8 mph |
| Mast Overall height |
83 in |
| Free lifting height |
43.7 in |
| Overall Height w/ forks lifted |
225 in |
| Fork Size |
42.1x4.8x1.5 in |
| Battery |
12/60 V/ Ah |
| Engine Mode |
PSI 2.4 |
| Engine rated power |
LPG: 63/2700 |
