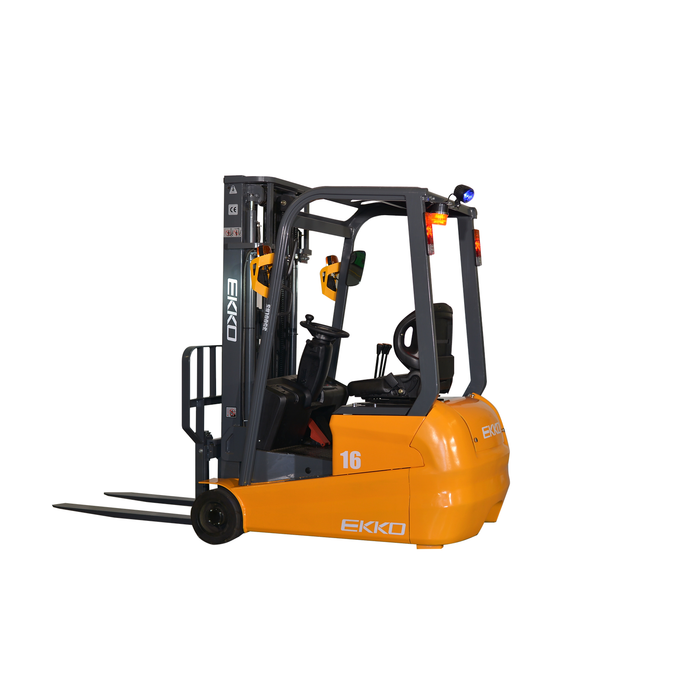

EKKO 3-Wheel Lithium Forklift 3500lbs., 189"Lift
EK16A-189Li
The EKKO EK16A-189Li 3 Wheel ELithium Forklift is designed for use for small aisles, limited spaces and budget. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance. (Recommended for Indoor use on flat surfaces)
- Load Capacity 3500 lb
- Raised Height 189" (15.75ft)
- Free Lift 31.5"
- Adjustable Forks 7.9-26"
- Fork Length 42.1"
- Zapi Controller
- Tilt 3/6 Degree
- 24V AC Drive Motor
- 3.3 kw Lift Motor
- Cushion Tires
- HPS (Hyrdaulic Power Steering)
- Steel Construction
- Robotic Welding
- Charger Included
- Battery Included
Specifications
| Model |
EK16A-189Li |
| Lift |
Electric |
| Drive |
Electric |
| Load capacity |
3500 (lb) |
| Load center distance |
24 (in) |
| Wheel base |
49.2 (in) |
| Lifting height |
189 (in) |
| Free lifting height |
31.5 (in) |
| Lowered mast height |
81 |
| Mast/Fork carriage tilt forward/backward |
3/6 (in) |
| Side Shifting Forks |
|
| Overall length |
65 (in) |
| Overall width |
42.1 (in) |
| Fork size, Thick/Width/Length |
1.4/4/42.1 |
| Fork adjust width |
7.9-26 (in) |
| Turning radius |
58.9 (in) |
| Max.gradient performance, laden/unladen |
6/10 (%) |
| Lift speed,laden/unladen |
4.71/10.2 (in/s) |
| Lowering speed, laden/unladen |
11.8/15.7 (in/s) |
| Charger |
24V/50A |
| Driving Motor |
AC |
| Lifting Motor |
3.3 (KW) |
| Battery voltage |
24V/200Ah |
| Service Weight |
4650 (lb) |
