Description

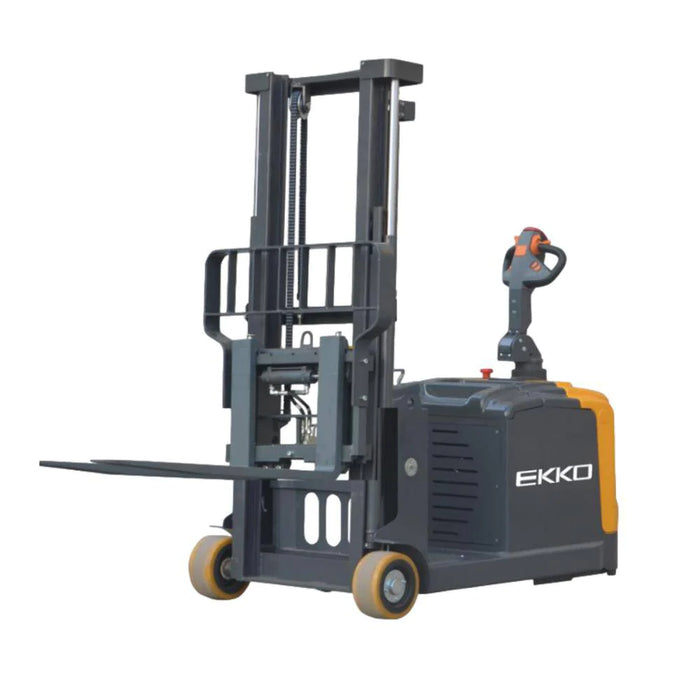

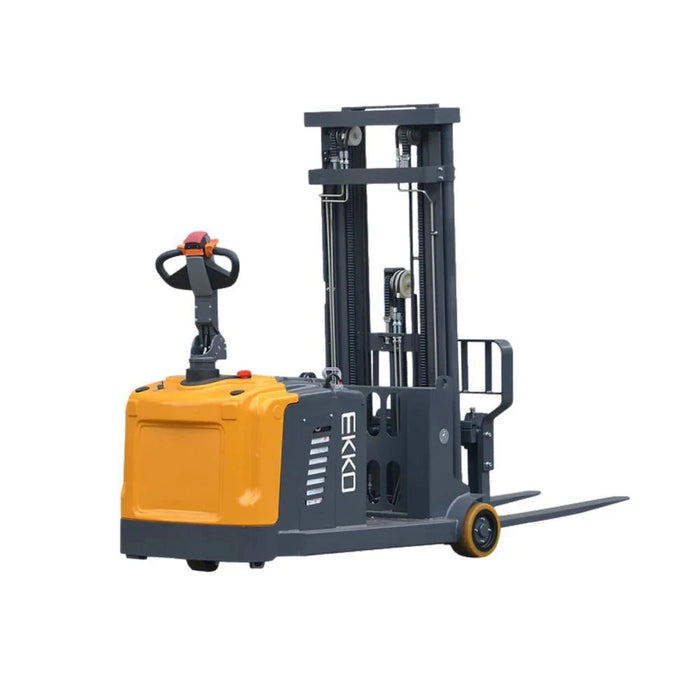

EKKO Counterbalanced Walkie Stacker SIDE-SHIFTING EK13S-177

The EKKO EK13S-177 Fully Powered Counterbalanced Walkie Stacker includes SIDE-SHIFTING and is designed with the combination of the versatility of forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.

Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.

  • Load Capacity 2860 lb

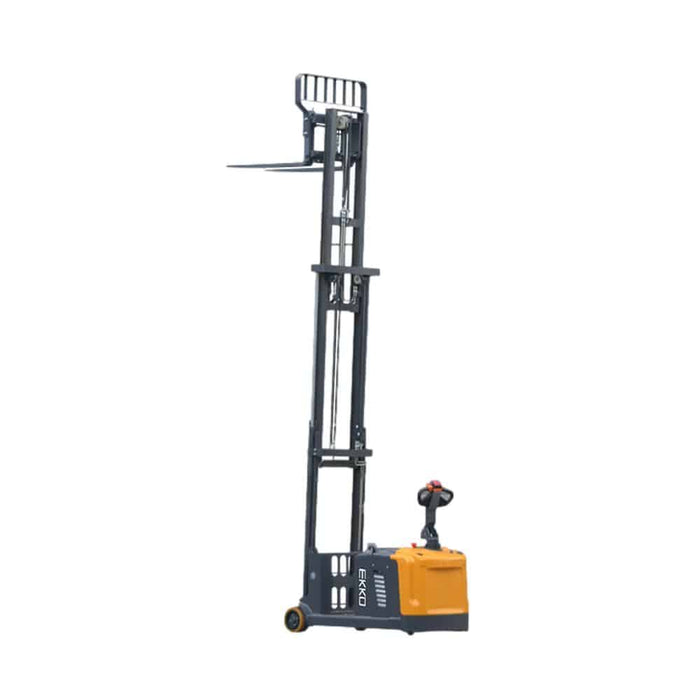

  • Raised Height 177" (14.75ft)
  • SIDE-SHIFTING
  • Adjustable Forks 8.6-28.3"
  • Fork Length 45.3"
  • Tilt 2/5 Degree
  • Curtis Controller
  • 24V AC Drive Motor
  • 24V Lift Motor
  • EPS (Electronic Power Steering)
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • Battery Included
  • 3 Years Limited Warranty

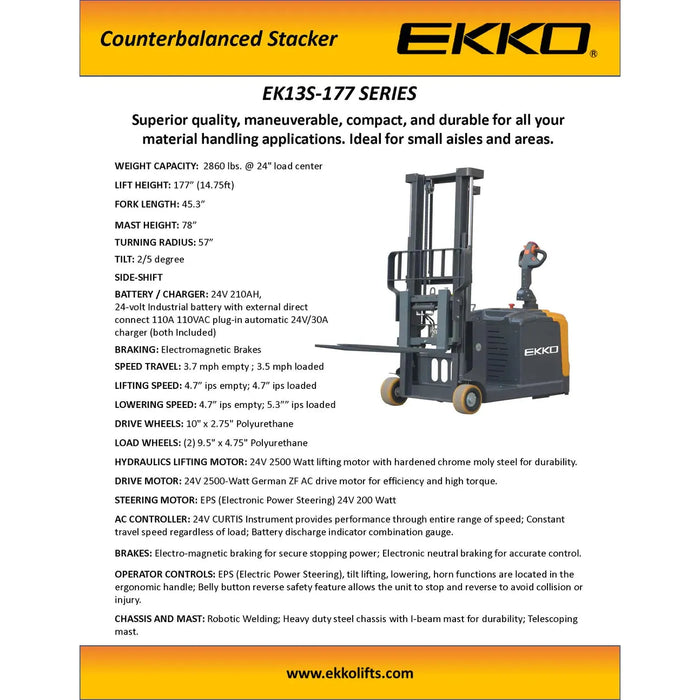

Specifications

Model

EK13S-177

Drive Type

Electric

Type of Operation

Walkie

Load Capacity

2860 lbs

Load Centre

23.6 in

Distance between Fork Backrest and Front Wheel

5.91 in

Wheelbase

46.81 in

Service Weight (with Battery)

4070 lbs

Tire Material

PU

Driving Wheel Size

Φ9.84×2.95 in

Bearing Wheel Size (Φ×w Inch)

Φ9.84×4.72 in

Number of Driving Wheel, Balance Wheel/Bearing Wheel (X=Driving Wheel)

2/1X

Front Wheelbase

34.09 in

Rear Wheelbase (b11 Inch)

0 in

Mast/Fork Carriage Tilt, Forward/Backward (α/β °)

2/5

Lowered Mast Height (h1 Inch)

78.74 in

Free Lift Height (h2 Inch)

59.84 in

Lift Height (h3 Inch)

177.17 in

Extended Mast Height (h4 Inch)

214.53 in

Height of Seat/Stand-on Platform (h7 mm)

5

The Height of Handle in the Operation Position (h14 Inch)

43.5/56.69 in

Overall Length (l1 Inch)

107.8 in

Body Length (l2 Inch)

62.52 in

Overall Width (b1/ b2 Inch)

39.29 in

Fork Size (s/e/l Inch)

1.38/3.94/45.28 in

Fork Width (b5 Inch)

8.66-28.35 in

Ground Clearance under Mast (m1 Inch)

3.54 in

Min Ground Clearance (m2 Inch)

3.39 in

Aisle Width for Pallets 1000*1200 Crossways (Ast Inch)

115.95 in

Aisle Width for Pallets 800*1200 Lengthways (Ast Inch)

120.28 in

Turning Radius (Wa Inch)

56.89 in

Driving Speed, Load/Unload (km/h)

5.2/5.5

Lifting Speed Load/Unload (mm/s)

100/120

Lowered Speed Load/Unload (mm/s)

136/120

Maximum Gradeability Load/Unload (%)

6/8

Brake Type

Electromagnetic Brake

Drive Motor (kW)

2.5kw

Lift Motor (kW)

2.5 kw

Battery Voltage/Rate Capacity (V/Ah)

24V/210Ah

Battery Weight (±5%) (lbs)

460 lbs

Type of Drive Control

AC

Noise Level (dB(A))

70

Steering Type

EPS
