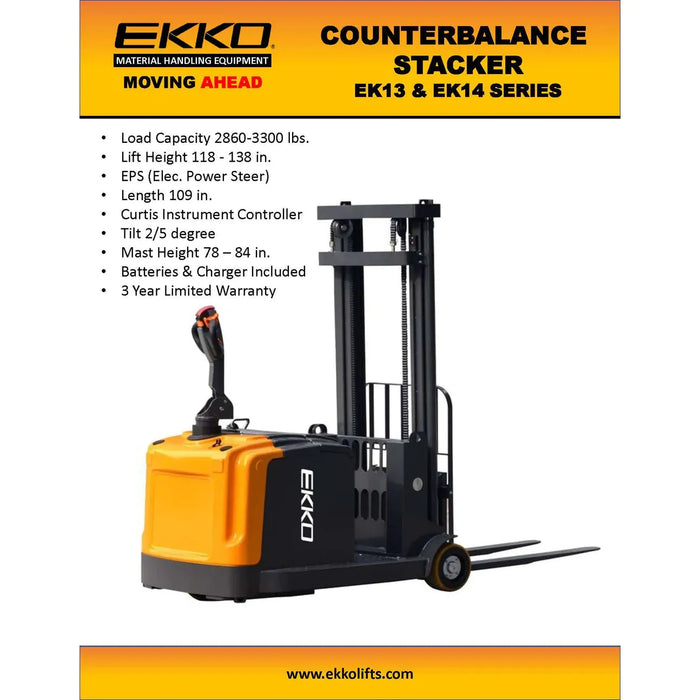

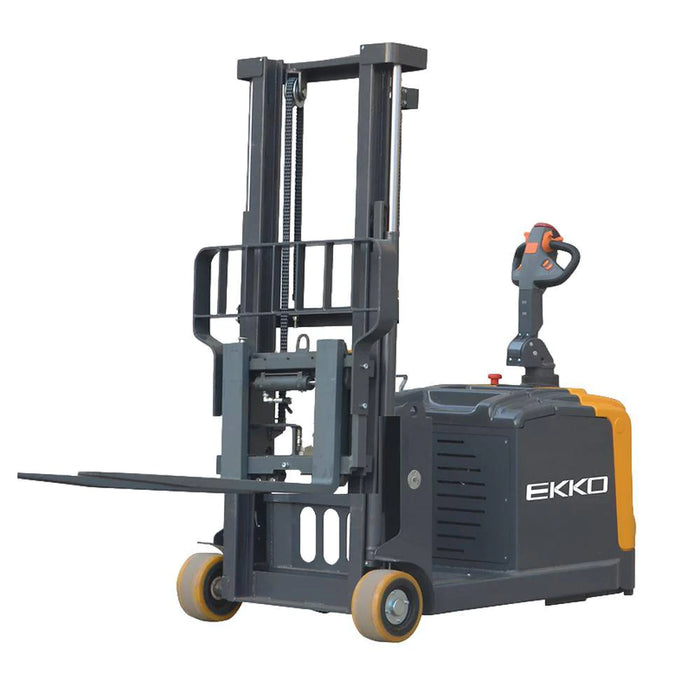

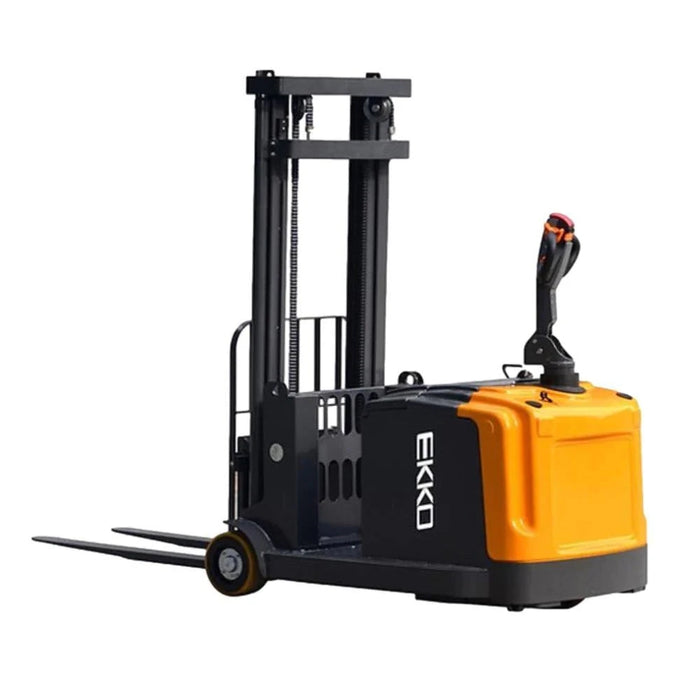

EKKO Counterbalanced Walkie Stacker 3300 lb Cap., 118" Height EK14
The EKKO EK14 Fully Powered Counterbalanced Walkie Stacker is designed with the combination of the versatility of a forklift and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.
Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.
- Load Capacity 3300 lbs
- Raised Height 118" (9.83ft)
- Adjustable Forks 8.6-28.3"
- Fork Length 45.3"
- Tilt 2/5 Degree
- Curtis Controller
- 24V AC Drive Motor
- 24V Lift Motor
- EPS (Electronic Power Steering)
- Polyurethane Wheels
- Ergonomic Handle and Controls
- Steel Construction
- Robotic Welding
- Charger
- 3 Years Limited Warranty

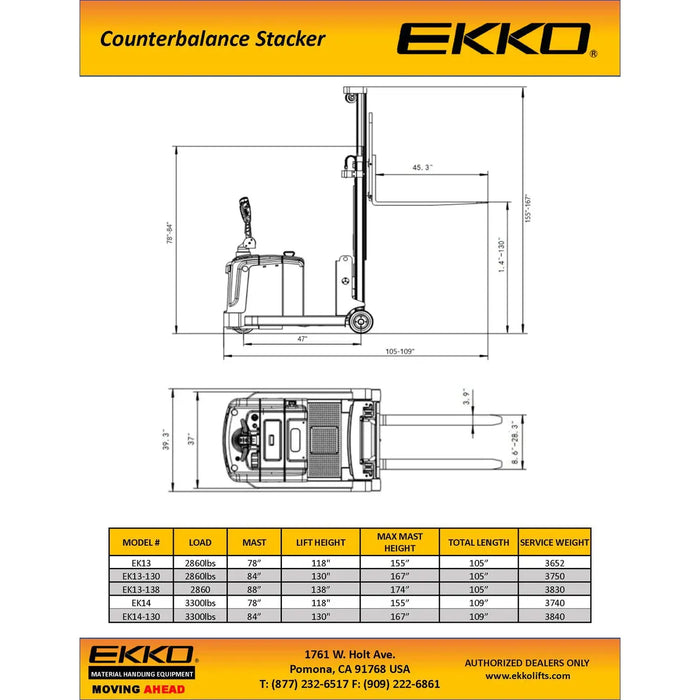

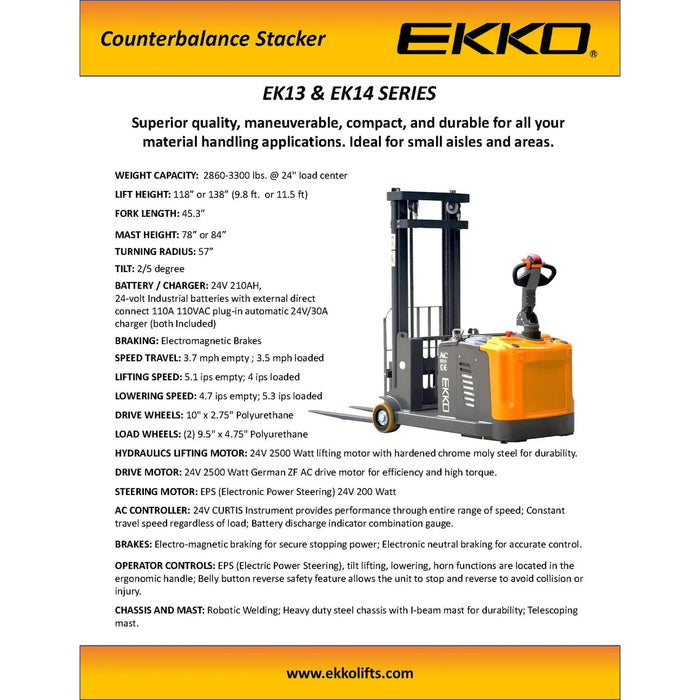

Specifications
|
Model
|
EK14 |
|
Lift
|
Electric |
|
Drive
|
Electric |
|
Load capacity
|
3300 lbs |
|
Load center distance
|
24 in |
|
Wheel base
|
47 in |
|
Lifting height
|
118 in |
|
Free lifting height
|
4 in |
|
Lowered mast height
|
78 in |
|
Extended mast height
|
155 in |
|
Mast/Fork carriage tilt forward/backward
|
2/5 |
|
Overall length
|
109 |
|
Overall width
|
39 in |
|
Fork size, Thick/Width/Length
|
1.4/4/45.3 in |
|
Fork adjust width
|
8.6-28.3 in |
|
Turning radius
|
57 v |
|
Max.gradient performance, laden/unladen
|
6/10 |
|
Lift speed,laden/unladen
|
4/5.1 in |
|
Lowering speed, laden/unladen
|
5.3/4.7 in |
|
Charger
|
24V/30A |
|
Driving Motor
|
AC 24V/2500W |
|
Lifting Motor
|
24V/2500W |
|
EPS Steering Motor
|
24/200W |
|
Battery voltage
|
24V/210Ah (Side) |
|
Service Weight
|
3740 lbs |
