Description

EKKO Aerial Work Platform Lift Height 32.8' (394'') ES100E

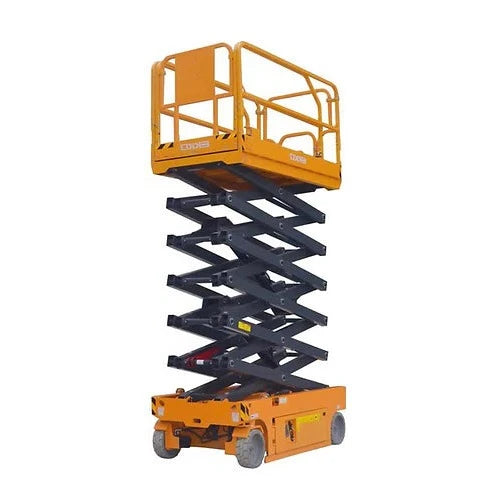

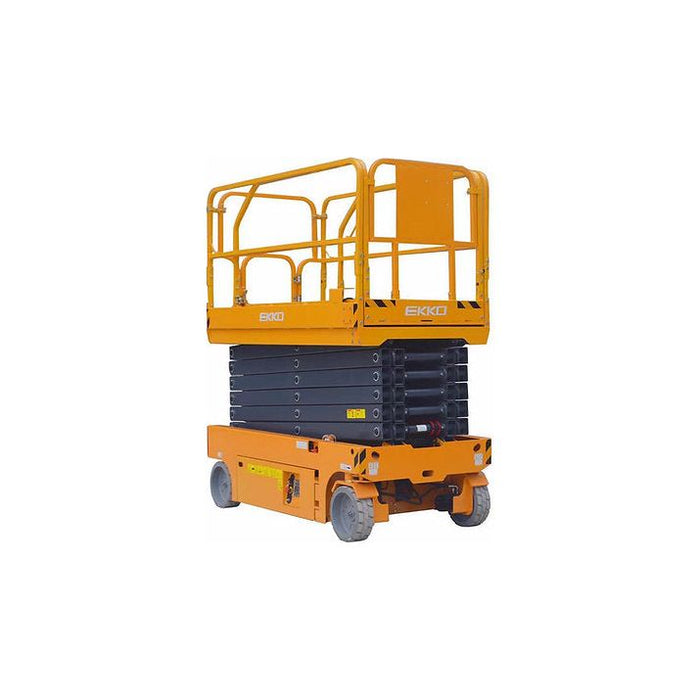

The EKKO ES100E Scissor Aerial Work Platform is a 700-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.

  • Load Capacity 700 lb
  • Raised Height 32.8' (394")
  • Lowered Height 96.85''
  • Size: Length 89" x Width 45"
  • Steel construction
  • 3 Years Limited Warranty



About EKKO Lifts

Specification

Model ES100E

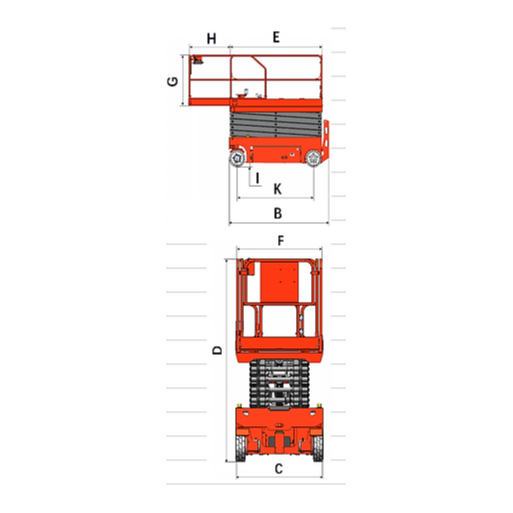

product dimensions
A1 Max working height 39' (472'') in
A2 Max platform height 32.8' (394'') in
B Length 94.5 in
C Width 45.27 in
D Overall height (guardrail not folded) 96 in
Overall height (folding guardrail) 72 in
Platform size (length EX width FX height G) 88.58x45.27 in
G Guardrail height 43.3 in
H Platform extension size 39.37 in
I Ground clearance (closed state) 3.74 in
J Ground clearance (lifting state) 0.78 in
K Wheelbase 72.83 in
product performance
Maximum number of workers (indoor/outdoor) 2 / 1
load rating 700 lbs
Extended platform load rating 265 lbs
Driving speed (folding state) 0-3.2 km/h
Driving speed (lifting condition) 0~0.8 km/h
Minimum Turning radius (inside) 0 in
Minimum turning radius (outside) 86.61 in
Rise/fall time 52/48s
Maximum allowable tilting Angle (front/left/right) 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) 0/12.5 m/s
Maximum allowable lateral force (indoor/outdoor) 400/200N
Gradeability 30
control proportional control
actuator Double front wheels
braking Double rear wheels
Tyre specification/type 15*5 in
Product power
Lift/drive motor 3.3/0.7x2 kw
Battery voltage/capacity 6x4/225 V/Ah
Charger input voltage 100-240 VAC
Charger output current 36A
control voltage 24 VDC
Hydraulic tank capacity 22L
total weight 6204 lbs
