EKKO Aerial Work Platform Lift Height 19' (228'') ES60E-Li

Text us for availability
EKKO | Authorized Dealer | Sku #: ES60E-LI
Build Your Own Package
Discover your house by using our quote form down below.
FREE SHIPPING
No sales tax (except NY)
filler

Price:
Sale price$20,999.00

  • Authorized Dealer
  • Free Shipping
  • 30-Day Return Policy

Get 7% OFF With Code (Welcome) At Checkout

Description

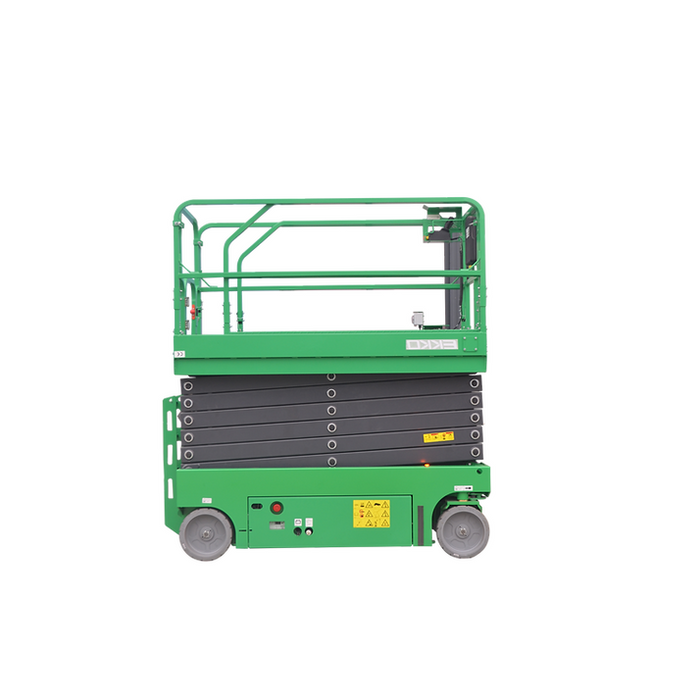

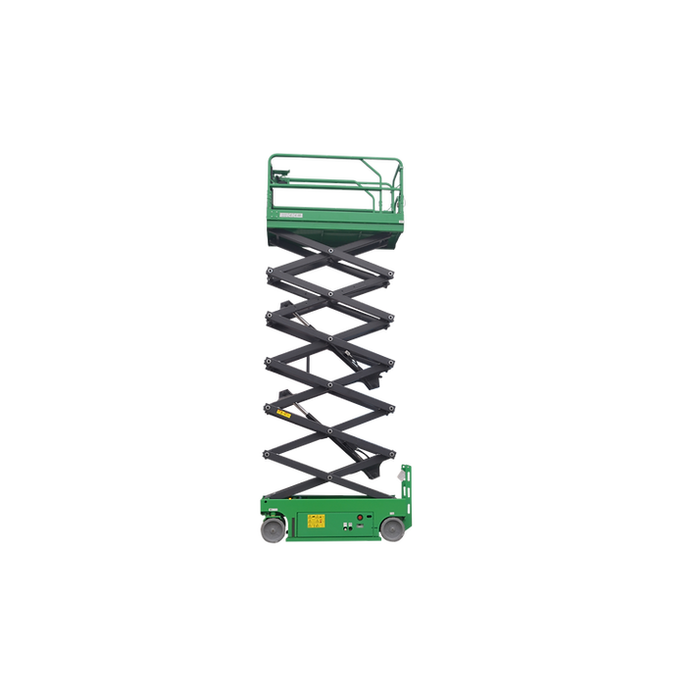

EKKO Aerial Work Platform Lift Height 19' (228'') ES60E-Li

The EKKO ES60E-LI Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.


  • Load Capacity 500 lb
  • Raised Height 19' (228")
  • Lowered Height 86''
  • Size: Length 65" x Width 30"
  • Steel construction
  • 3 Years Limited Warranty



About EKKO Lifts

Specification

Model ES60E-LI
product dimensions
A1 Max working height 25.5' (307'') in
A2 Max platform height 19' (228'') in
B Length 72.44 in
C Width 29.92 in
D Overall height (guardrail not folded) 85.75" in
Overall height (folding guardrail) 72.5" in
Platform size (length EX width FX height G) 64.96x29.92 in
G Guardrail height 43.31 in
H Platform extension size 35.43 in
I Ground clearance (closed state) 2.36 in
J Ground clearance (lifting state) 0.59 in
K Wheelbase 1.36 in
product performance
Maximum number of workers (indoor/outdoor) 2 / –
load rating 506 lbs
Extended platform load rating 264 lbs
Driving speed (folding state) 0~4 km/h
Driving speed (lifting condition) 0~0.8 km/h
Minimum Turning radius (inside) 0 in
Minimum turning radius (outside) 61 in
Rise/fall time 18/28 s
Maximum allowable tilting Angle (front/left/right) 3°/1.5°
Maximum allowable wind speed (indoor/outdoor) 0/0 m/s
Maximum allowable lateral force (indoor/outdoor) 400/0 N
Gradeability 30
control proportional control
actuator Double front wheels
braking Double rear wheels
Tyre specification/type 12.71*3.93 in
Product power
Lift/drive motor 2.2/0.7x2 kw
Battery voltage/capacity 25.6V/150AH Lithium
Charger input voltage 25.6V
Charger output current 36A
control voltage 24 v
Hydraulic tank capacity 8L
total weight 3356 lbs
