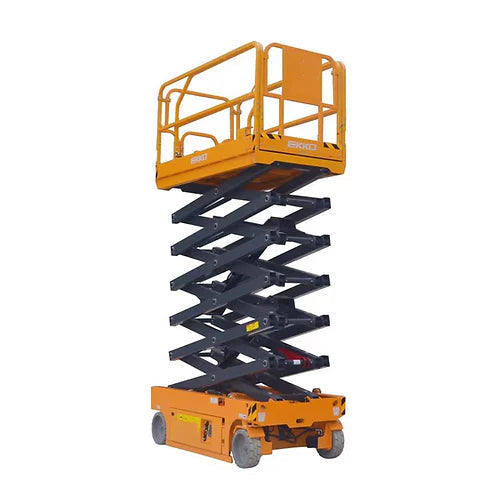

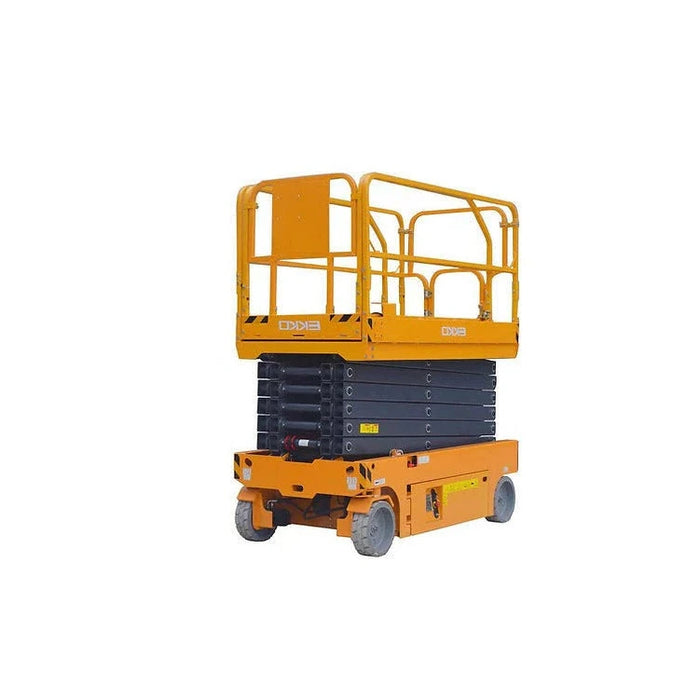

EKKO Aerial Work Platform Lift Height 19' (228'') ES60E
The EKKO ES60E Scissor Aerial Work Platform is a 506-lb capacity compact platform with four wheels and Curtis controller which allows you to make lifting, transporting loads, and moving products easily and safely. This product also complys with GB25849 and EN280 standards.
Load Capacity 500 lb
Raised Height 19' (228")
Lowered Height 86''
Size: Length 65" x Width 30"
Steel construction
3 Years Limited Warranty
About EKKO Lifts
Specification
Model
ES60E

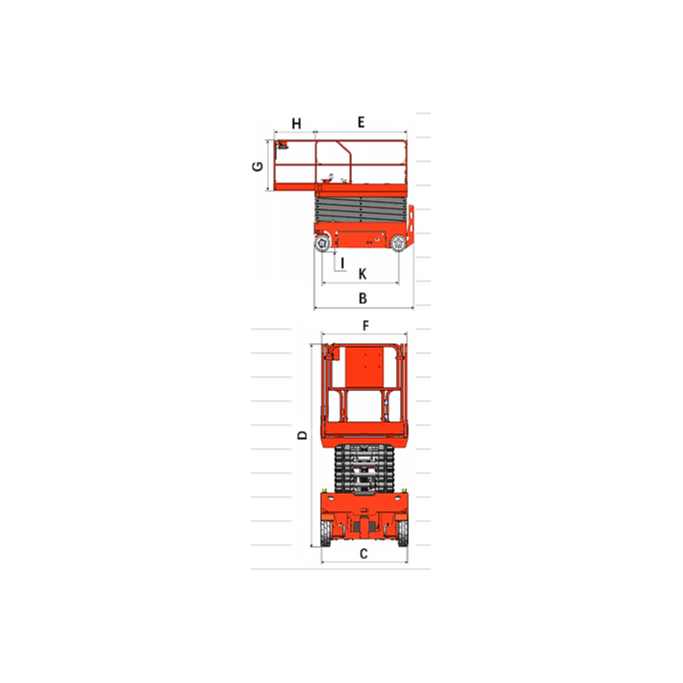

product dimensions

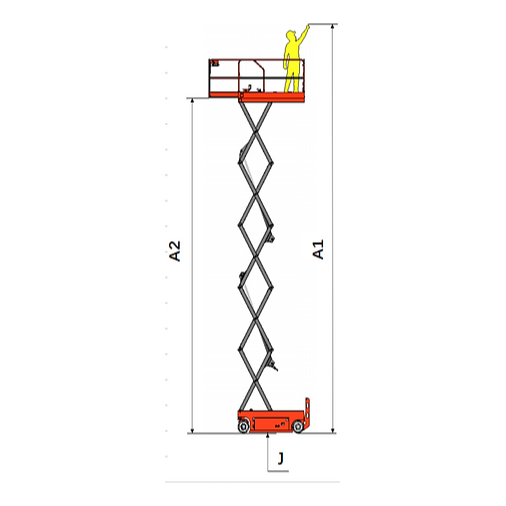

A1 Max working height
25.5' (307'') in
A2 Max platform height
19' (228'') in
B Length
72.44 in
C Width
29.92 in
D Overall height (guardrail not folded)
85.75 in
Overall height (folding guardrail)
65 in
Platform size (length EX width FX height G)
64.96x29.92 in
G Guardrail height
43.31 in
H Platform extension size
35.43 in
I Ground clearance (closed state)
2.36 in
J Ground clearance (lifting state)
0.59 in
K Wheelbase
1.36 in
product performance
Maximum number of workers (indoor/outdoor)
2 / –
load rating
506 lbs
Extended platform load rating
264 lbs
Driving speed (folding state)
0~4 km/h
Driving speed (lifting condition)
0~0.8 km/h
Minimum Turning radius (inside)
0 in
Minimum turning radius (outside)
61 in
Rise/fall time
18/28s
Maximum allowable tilting Angle (front/left/right)
