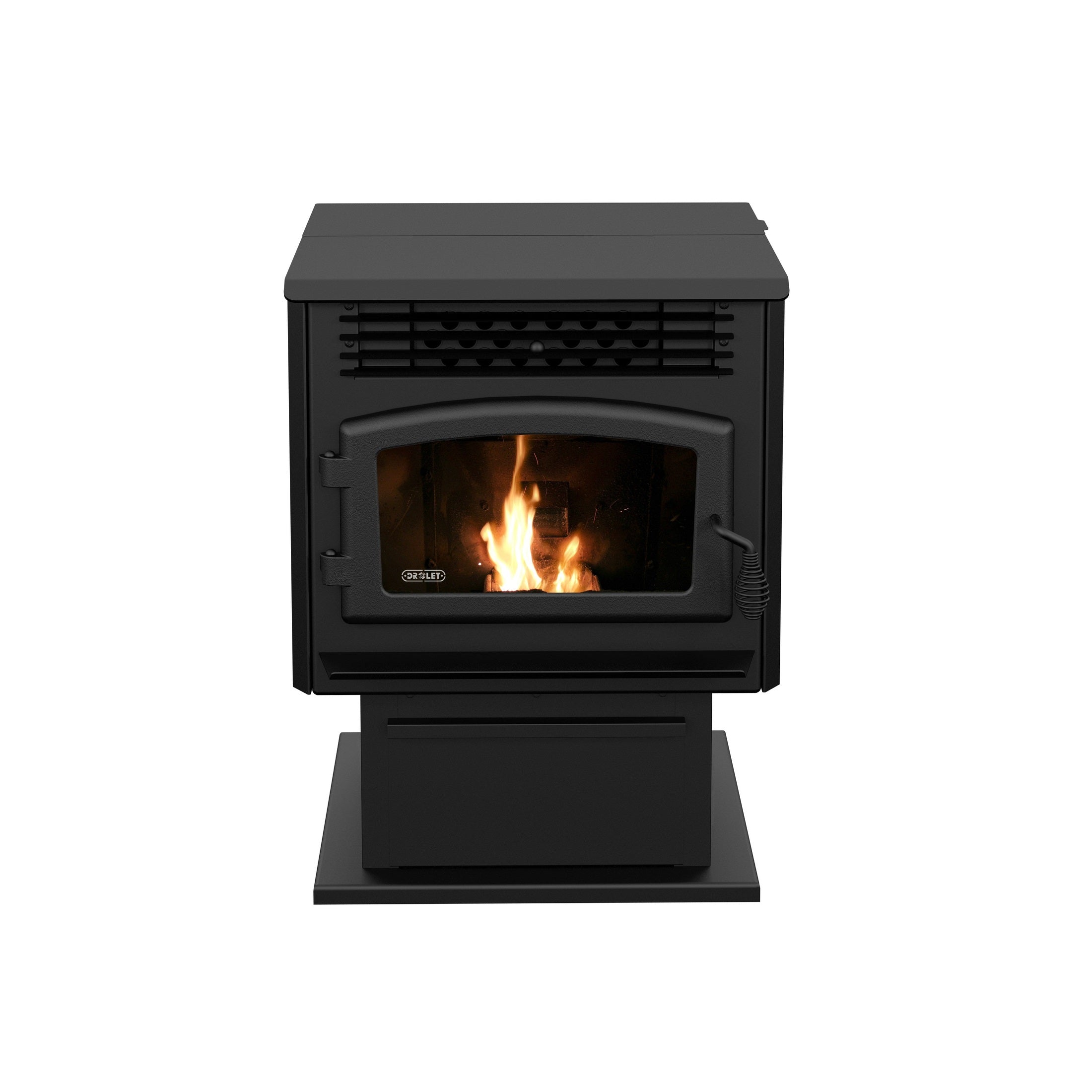

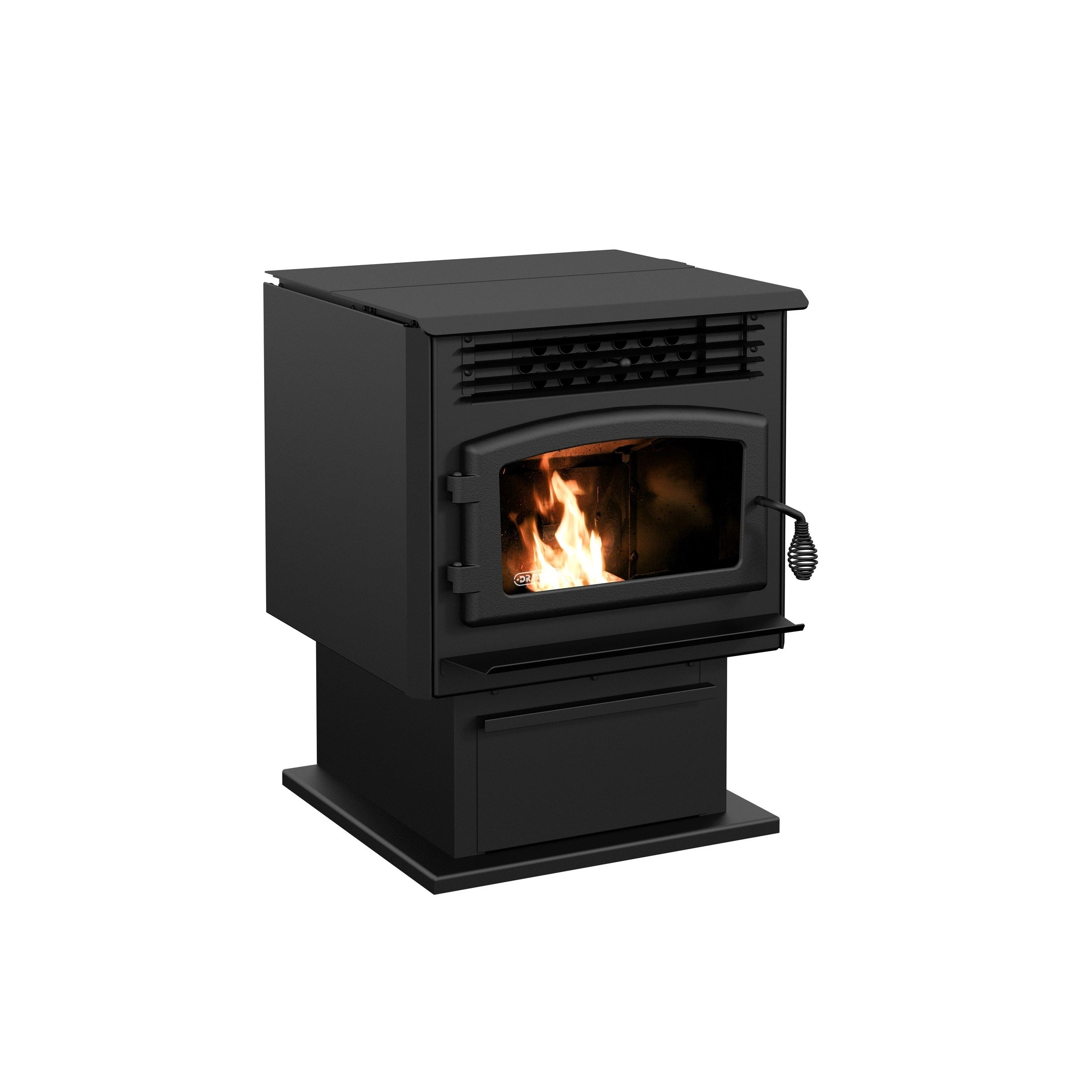

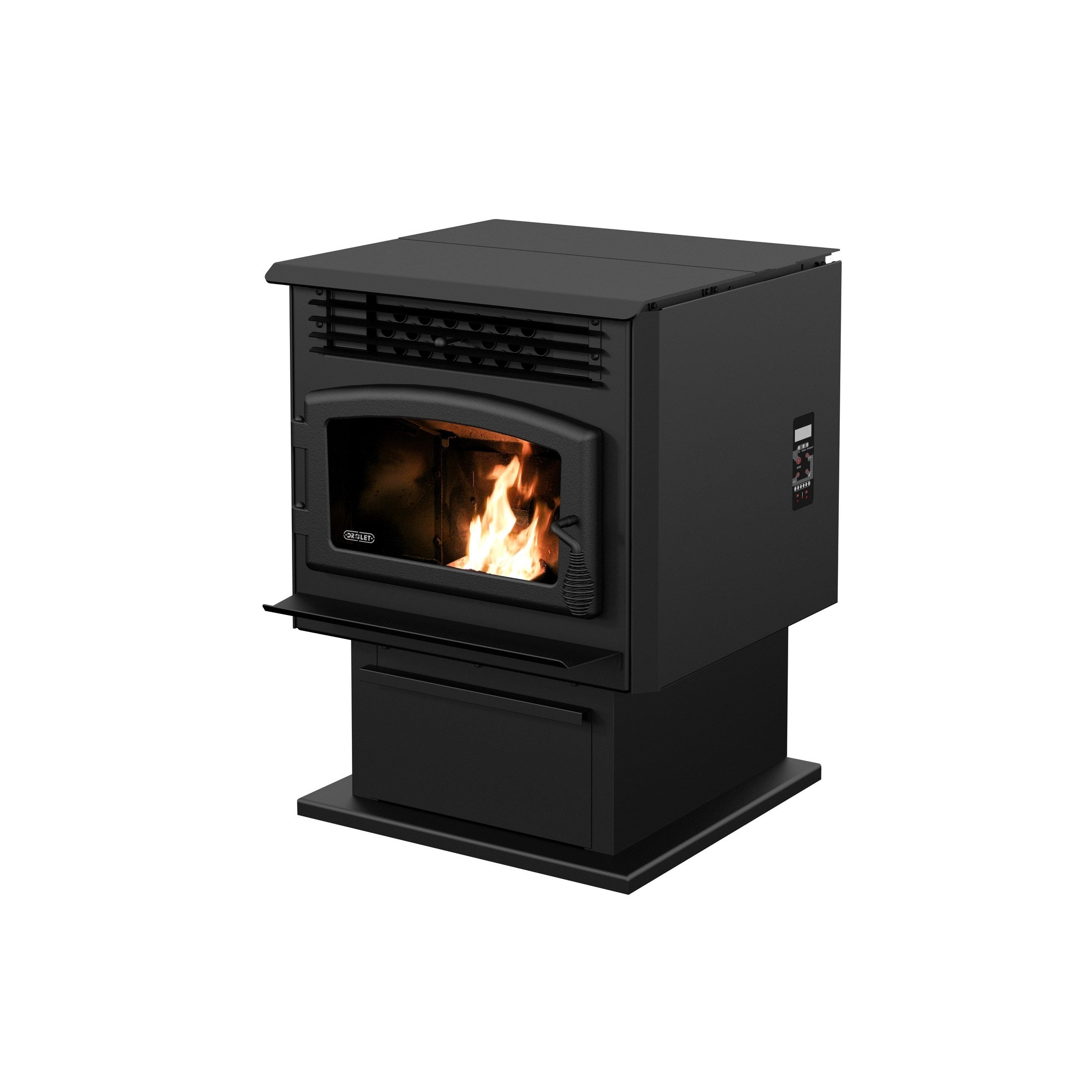

Easy to use and maintain, the Eco-55 pellet stove is ideal for heating spaces up to 2,000 ft². It features intuitive electronic control and easy to use thermostatic control. Cleaning is a breeze, with access to components that are removable without tools. Certified at only 0.96 g/h, the Eco-55 produces up to 39,260 BTU/h, and provides clean and efficient heating.
Included: blower, ceramic glass, ash lip
FEATURES:
Heating area
500 - 2,000Ft2
Size
25 1/8''W X29 1/2''D X32 5/8''H
Maximum burn time
51 h
Burn time up to 51 hours (up to 120 hours with the optional hopper extension)
Hopper capacity of 60 lb
Top-feed burner
EPA 2020 certified
Proudly made in Canada
Limited lifetime warranty
Certified for mobile home and alcove installation
SPECIFICATIONS:
General Features:
Combustion technology
Top-feed
Baffle type
Stainless steel
Flue outlet diameter
3"
Recommended chimney diameter
3" | 4"
Type of chimney
ULC/ORD-C441, CAN/ULC S609, UL 641 (TYPE L)
Overall dimension (Width)
25 1/4"
Overall dimension (Height)
32 5/8"
Overall dimension (Depth)
29 1/2"
Voltage and frequency
120 VAC / 60 Hz
Noise level at 6 feet
47 dBa (+/- 3 dBa) - 60 dBa (+/- 3 dBa)
Door type
Single, glass with cast iron frame
Glass type
Ceramic glass
Glass surface - W x H
15 3/4" x 8 1/8"
High-efficiency certified appliance
Yes, EPA 2020 approved
Canadian Standard (emissions)
CSA B415.1-10
USA Standard (emissions)
EPA, ASTM E2779
Canadian Standard (safety)
ULC S627
USA Standard (safety)
UL 1482, ASTM E1509
Warranty
Limited lifetime
Shipping weight
277 lb (126 kg)
Appliance Performance:
Fuel type(12)
Pellet (Premium grade or better)
Recommended heating area(10)
500 - 2,000 ft²
Hopper capacity
60 lb (27 kg)
Maximum burn time(10)
51 h
Maximum heat input rate(4)
39,260 BTU/h (11.5 kW)
Minimum overall heat output rate(5)
6,648 BTU/h (1.95 kW)
Maximum overall heat output rate(5)
28,540 BTU/h (8.36 kW)
Minimum average overall efficiency (HHV)(6)(8)
70.3 %
Maximum average overall efficiency (LHV)(6)(7)
75.8 %
Optimum efficiency(2)
78.4%
Optimum heat transfer efficiency(9)
73 %
Burn rate
1.2 - 4.7 lb/h
Average particulate emission rate(3)
0.96 g/h
Average CO(11)
7.6 g/h
Average electrical power consumption for ignition cycle(1)
3.02A (360 W)
Average electrical power consumption for continuous operation(1)
1.3 - 2.5A (51 - 140 W)
Size
Medium
Alcove installation approved
Yes
Mobile home approved
Yes, with fresh air intake
Certified according to applicable standards
By an accredited laboratory (CAN/USA)
Premium quality blower included (CFM)
176 CFM included
(1)This appliance is officially tested and certified by an independent agency.
(2)Values are as measured per CSA B415.1-10, except for the recommended heating area, hopper capacity, maximum burn time and maximum heat input rate. Results may vary depending on pellet quality, density, length, and diameter.
(3)Grades of pellet fuel are determined by organizations such as Pellet Fuels Institute (PFI), ENplus and CANplus.
()Recommended heating area and maximum burn time may vary subject to location in home, chimney draft, heat loss factors, climate, fuel type, feed rate, fuel level, and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature considering that the space configuration and the presence of heat distribution systems have a significant impact in making heat circulation optimum.
(4)Based on the maximum burn-rate and a dry energy value of pellet at 8,600 BTU/lb.
(5)As measured per CSA B415.1-10 stack loss method.
(6)Efficiency based on radiated and delivered heat when allowing cycling from high to low burn to simulate thermostat demand. LHV % is based on manufacturer’s estimation.
(7)Higher Heating Value of the fuel.
(8)Lower Heating Value of the fuel.
(9)Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.
(10)Optimum overall efficiency at a specific burn rate (LHV).
(11)The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.
(12)Carbon monoxyde.
(13)Unless stated otherwise, measures were taken directly at the main power source and include all electrical components present in the appliance.
Clearances:
Minimum clearances to combustibles* (Data expressed in inches. 1 inch = 25.4 mm)
