Thor Kitchen Built-In Induction Cooktop with Elements - TIH36
THOR Kitchen offers the power and performance of a premium professional appliance at a practical price. Sleek, powerful and precise. Induction cooking technology combines the temperature responsiveness of a gas cooktop with the fast performance of an electric cooktop. Also, depending on your needs, induction is inherently more energy-efficient and features faster heat-up times compared to gas or electric cooktops.

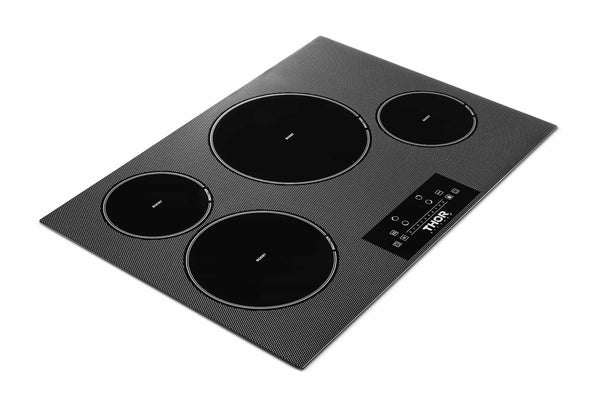

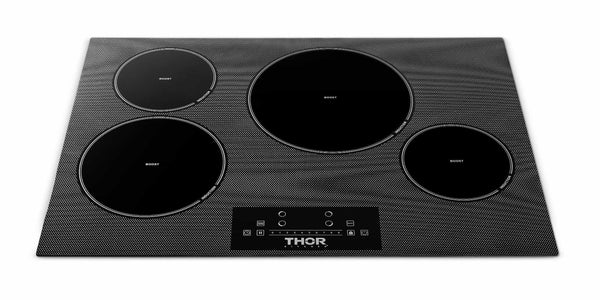

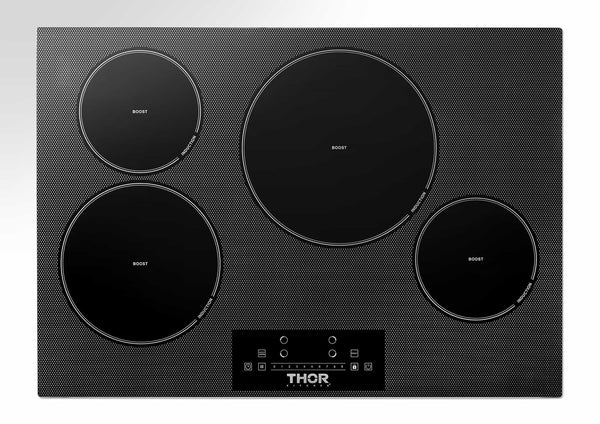

THOR Kitchen's 30 Inch Built-In Induction Cooktop features four heating elements, nine power levels, touch controls and an independent boost and timer. These induction cooktops are sleek in design and offer quick, precise and even cooking results.

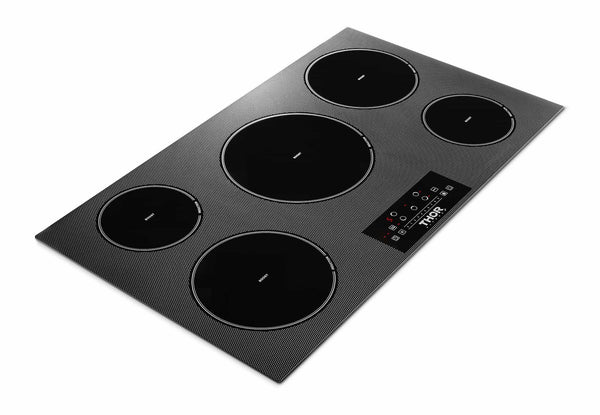

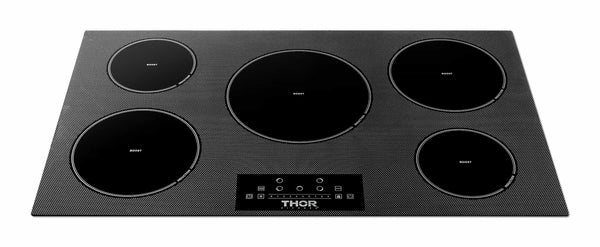

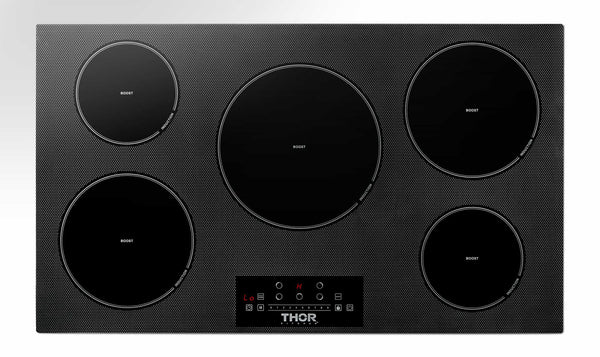

HOR Kitchen's 36 Inch Built-In Induction Cooktop features five heating elements, nine power levels, touch controls and an independent boost and timer. These induction cooktops are sleek in design and offer quick, precise and even cooking result.
FEATURES:
-
4 ELEMENTS. The cooktop's total power is 7,200W with one 11-inch 3,700-Watt, one 9-inch 2,100-Watt, and two 7-inch 1,500-Watt elements to cover your cooking needs
-
5 ELEMENTS. The cooktop's total power is 9,300W with one 11-inch 2300-Watt element, two 9-inch 2,100-Watt elements and two 7-inch 1,500-Watt elements to cover your cooking needs
-
9 POWER LEVELS. So you can simmer a sauce or crank up the heat for a caramelized sear—now that's control
-
POWER BOOST. The cooktop elements offer a power boost adjustment so you get to your desired temperature fast
-

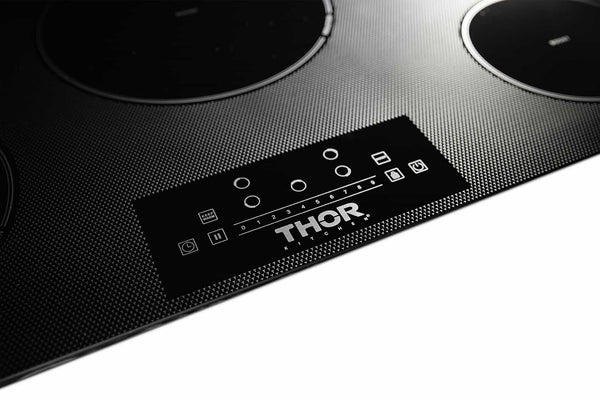

TOUCH CONTROLS. Digital LED displays are touch and slide controlled and easy-to-read for the whole family and spills and grease can easily wipe away
-
RESIDUAL HEAT INDICATORS AND LOCK. This cooktop also features a Residual Heat Indicator and Child Lock so that you and your kiddos don't burn your hands
-
AUTOMATIC SAFETY SHUT-OFF. The unit will auto turn-off without a cooking pot present after 2 hours of non-operation—safety first.
SPECIFICATIONS:
For 30" Cooktop:
| Dimensions |
30” W x 21” D x 2 1/4” H
|
| Cut-Out Size (in.) |
28 3/4” W x 9 5/16” H |
| Control Type |
Touch Control with DIGITAL LED display |
| Voltage/frequency/Amps |
240v / 60Hz/ 30A |
| Total power Output (W) |
7200W |
| Right Rear Burner |
11” 2300 / 3700W |
| Right Front Burner |
7” 1200 / 1500W |
| Left Rear Burner |
7" 1200 / 1500W |
| Left Front Burner |
9" 2,100W |
| Total Burners |
4 |
| Power level setting |
9 |
| Product Net / Gross weight (lbs) |
35.27 / 44.09 |
| Induction |
Heating element |
| Power cord |
47 1/4” without plug |
| Certification |
ETL, RoHS, FCC |
| Features |
- 99 min timer / Child lock / 4 Booster / Keep Warm / Pause Funciton
- 9 level power setting
- Individual residual heat indicator
- 2 - 8 hours automatic safety switch off
- Slide touch
|
| Warranty |
2 Years on Parts an Labor |
For 36" Cooktop:
| Dimensions |
36” W x 21” D x 2 1/4” H
|
| Cut-Out Size (in.) |
33 7/8” W x 9 5/16” D |
| Control Type |
Touch Control with DIGITAL LED display |
| Voltage/frequency/Amps |
240v / 60Hz |
| Total power Output (W) |
9300W |
| Right Rear Burner |
9” 1800 / 2100W |
| Right Front Burner |
7” 1200 / 1500W |
| Central Burner |
11" 2300 / 3700W |
| Left Bridge Burner |
- Left Rear 7” 1200 / 1500W
- Left Front 9” 1800 / 2100W
|
| Total Burners |
5
|
| Power level setting |
9 |
| Product Net / Gross weight (lbs) |
28.66 / 36.38 |
| Induction |
Heating element |
| Power cord |
47 1/4” without plug |
| Certification |
ETL, RoHS, FCC |
| Features |
- 99 min timer / Child Lock / 5 Booster / Keep Warm / Pause Function
- 9 level power setting
- Individual residual heat indicator
- 2-8 hours - automatic safety switch off
- Slide touch
|
| Warranty |
2 Years on Parts and Labor |
